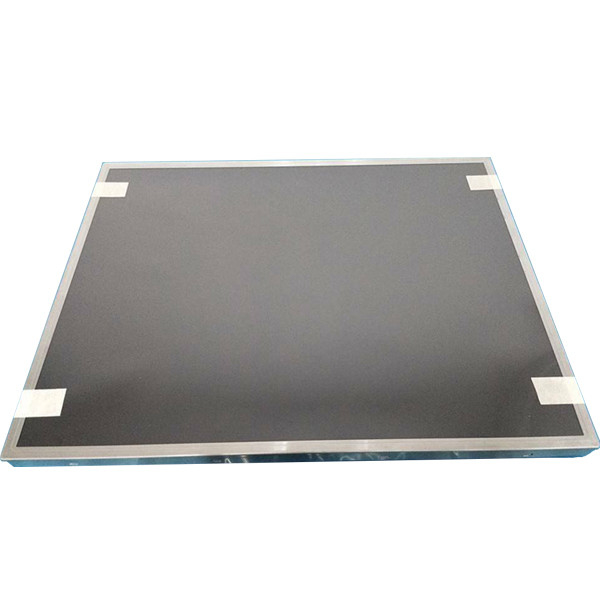

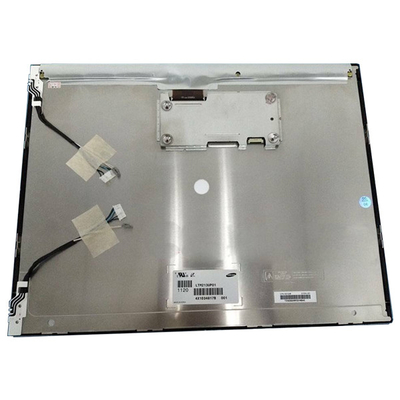

LTM213UP01-001 21.3 inch 1600*1200 Resolution LCD Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Samsung |
| Model Number: | LTM213UP01-001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTM213UP01-001 | Screen Size: | 21.3inch |
|---|---|---|---|
| Resolution: | 1600(RGB)×1200, UXGA 94PPI | Used For: | Desktop Monitor |
| Active Area: | 432(W)×324(H) Mm | Outline (mm): | 456(W)×349.5(H)×23(D) |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Luminance: | 300 Cd/m² (Typ.) |
| Signal Type: | LVDS (2 Ch, 8-bit) , 30 Pins Connector | Environment: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Mass: | 3.55Kgs (Max.) | ||
Product Description
LTM213UP01-001 21.3 inch 1600*1200 Resolution LCD Display Panel
Product details :
| Samsung LCD Screen LTM213UP01-001 | |
|---|---|
| Manufacturer | Samsung |
| Model Name | LTM213UP01-001 |
| Screen Size | 21.3inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1600(RGB)×1200, UXGA 94PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 432(W)×324(H) mm |
| Bezel Opening | 436.0(W)×328.0(H) mm |
| Outline (mm) | 456(W)×349.5(H)×23(D) |
| Treatment | Antiglare (Haze 44%), Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 16 (Typ.)(Tr+Td), 8 (Typ.)(G to G) ms |
| View Direction | Symmetry |
| Operating Mode | S-PVA, Normally Black, Transmissive |
| Support Color | 16.7M 100% sRGB |
| Light Source | 6 pcs CCFL , 50K hours , No Driver |
| Mass | 3.55Kgs (Max.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LTM213UP01-001 21.3 inch 1600*1200 Resolution LCD Display Panel | |
