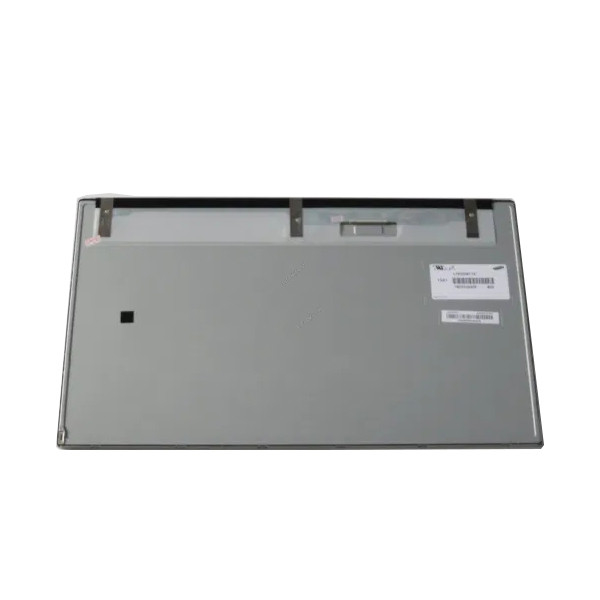

LTM200KT12 LCD Display 20.0 Inch 1600*900 Resolution LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Samsung |
| Model Number: | LTM200KT12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTM200KT12 | Screen Size: | 20.0inch |
|---|---|---|---|
| Resolution: | 1600(RGB)×900, HD+ 91PPI | Used For: | Desktop Monitor |
| Active Area: | 442.8(W)×249.075(H) Mm | Outline (mm): | 462.8×272×10.3 (H×V×D) |
| Luminance: | 250 Cd/m² (Typ.) | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) |
| Signal Type: | LVDS (2ch, 8-bit) , 30 Pins Connector | Mass: | 1.70Kgs (Max.) |
| Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C | ||
Product Description
LTM200KT12 LCD Display 20.0 Inch 1600*900 Resolution LCD Screen
Product details :
| Samsung LCD Screen LTM200KT12 | |
|---|---|
| Manufacturer | Samsung |
| Model Name | LTM200KT12 |
| Screen Size | 20.0inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1600(RGB)×900, HD+ 91PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 442.8(W)×249.075(H) mm |
| Bezel Opening | 446.8(W)×253.2(H) mm |
| Outline (mm) | 462.8×272×10.3 (H×V×D) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing angle | 85/85/80/80 (Typ.)(CR≥10) |
| Response | 5(Typ.)(G to G) |
| Good View at | 6 o'clock |
| Operating Mode | APVA, Normally Black, Transmissive |
| Support Color | 16.7M 72% NTSC |
| Light Source | 9S3P WLED , 40K hours , No Driver |
| Mass | 1.70Kgs (Max.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LTM200KT12 LCD Display 20.0 Inch 1600*900 Resolution LCD Screen | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Shipping:
You can track the shipment with the tracking number we give to you. If you can't get the status of your shipment or you find the status of your shipment abnormal, please feel free to contact us. We will help you check it with post office or courier and cooperate closely with you to solve the problem.
FAQ:
Q: Can you give me a discount if I need a large quantity of LTM200KT12 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of LTM200KT12 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of LTM200KT12 ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of LTM200KT12 ?
A: Of course!sample order is welcome !
