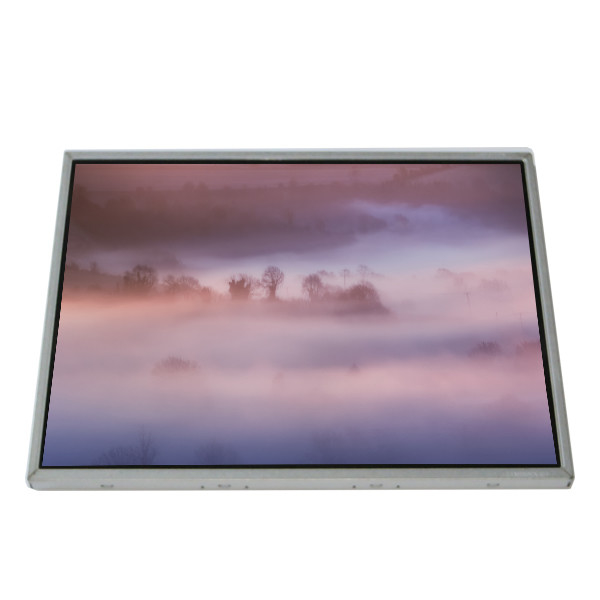

LTM190ET01 NEW 19.0 inch LCD Display Screen

Brand Name:	Samsung
Model Number:	LTM190ET01
MOQ:	1pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LTM190ET01

Screen Size:

19.0inch

Resolution:

1280(RGB)×1024, SXGA 86PPI

Used For:

Desktop Monitor

Active Area:

376.32(W)×301.056(H) Mm

Outline (mm):

396×324×17 (H×V×D)

Luminance:

250 Cd/m² (Typ.)

Viewing Angle:

80/80/80/80 (Min.)(CR≥10)

Signal Type:

LVDS (2 Ch, 8-bit) , Connector 30 Pins

Environment:

Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C

Supply Ability:

100000 Unit/Units per Month

Product Description

LTM190ET01 NEW 19.0 inch LCD Display Screen

Product details :

Samsung LCD Screen LTM190ET01
Manufacturer	Samsung
Model Name	LTM190ET01
Screen Size	19.0inch
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×1024, SXGA 86PPI
Pixel layout	RGB Vertical Stripe
Active Area	376.32(W)×301.056(H) mm
Bezel Opening	380.2(W)×305.0(H) mm
Outline (mm)	396×324×17 (H×V×D)
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing angle	80/80/80/80 (Min.)(CR≥10)
Response	5 (Typ.)(Tr+Td) ms
View Direction	-
Operating Mode	TN, Normally White, Transmissive
Support Color	16.7M 72% NTSC
Light Source	2 pcs CCFL , 50K hours , No Driver
Mass	2.20Kgs (Max.)
Used for	Desktop Monitor
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit) , Connector 30 pins
Voltage Supply	5.0V (Typ.)
Environment	Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C
LTM190ET01 NEW 19.0 inch LCD Display Screen

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

LTM190ET01 NEW 19.0 inch LCD Display Screen 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

Shipping:

You can track the shipment with the tracking number we give to you. If you can't get the status of your shipment or you find the status of your shipment abnormal, please feel free to contact us. We will help you check it with post office or courier and cooperate closely with you to solve the problem.

FAQ:

Q: How long will I receive my goods LTM190ET01 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Can you give me a discount if I need a large quantity of LTM190ET01 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can I pay my order of LTM190ET01 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can You declare my order of LTM190ET01 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .
