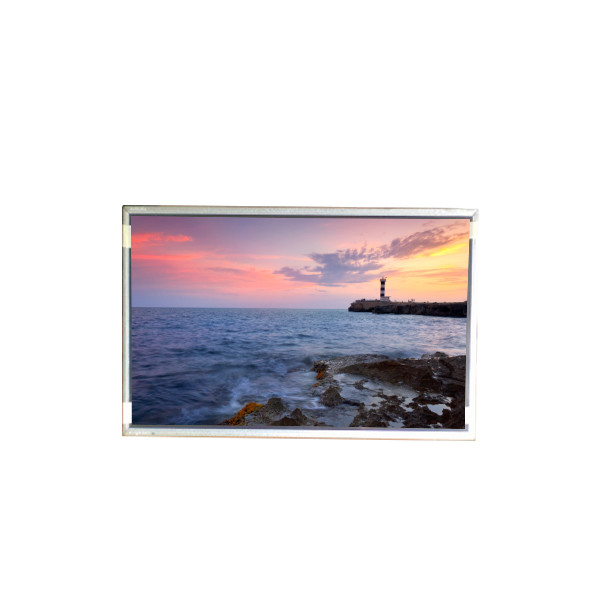

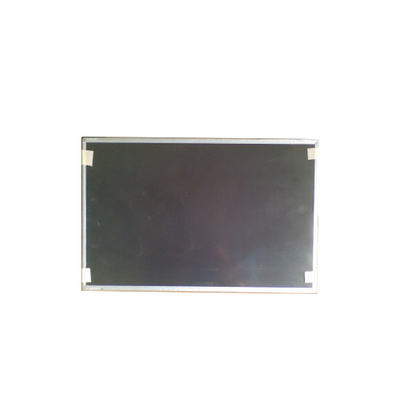

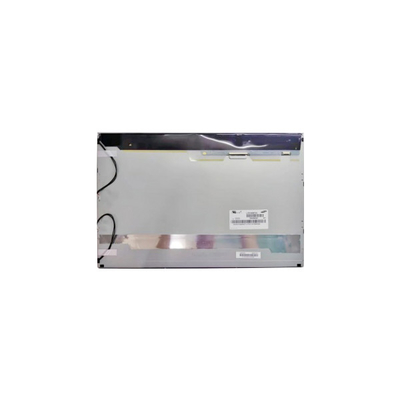

LTM190BT03 NEW 19.0 inch 1440*900 LCD Display Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Samsung |
| Model Number: | LTM190BT03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTM190BT03 | Screen Size: | 19.0inch |
|---|---|---|---|
| Resolution: | 1440(RGB)×900, WXGA+ 89PPI | Used For: | Desktop Monitor |
| Active Area: | 408.24(W)×255.15(H) Mm | Outline (mm): | 428(W)×278(H)×17.5(D)mm |
| Luminance: | 250 Cd/m² (Typ.) | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) |
| Signal Type: | LVDS (2 Ch, 8-bit) , 30 Pins Connector | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
Product Description
LTM190BT03 NEW 19.0 inch 1440*900 LCD Display Module
Product details :
| Samsung LCD Screen LTM190BT03 | |
|---|---|
| Manufacturer | Samsung |
| Model Name | LTM190BT03 |
| Screen Size | 19.0inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1440(RGB)×900, WXGA+ 89PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 408.24(W)×255.15(H) mm |
| Bezel Opening | 412.2(W)×259.2(H) mm |
| Outline (mm) | 428(W)×278(H)×17.5(D)mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 5 (Typ.)(Tr+Td) ms |
| View Direction | Symmetry |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 72% NTSC |
| Light Source | 2 pcs CCFL , 50K hours , No Driver |
| Mass | 2.55Kgs (Max.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LTM190BT03 NEW 19.0 inch 1440*900 LCD Display Module | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Shipping:
You can track the shipment with the tracking number we give to you. If you can't get the status of your shipment or you find the status of your shipment abnormal, please feel free to contact us. We will help you check it with post office or courier and cooperate closely with you to solve the problem.
FAQ:
Q: How to order lcd screen LTM190BT03 ?
A: We accept the T/T , Western union , paypal .
Q: what's the warranty of LTM190BT03 ?
A: 90 days.
Q: What happen if Samsung LTM190BT03 I received can't work ?
A: Our lcd panel LTM190BT03 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Can you declared low price of my Samsung LTM190BT03 lcd display when shipping?
A: Yes , please inform us the value you want .
