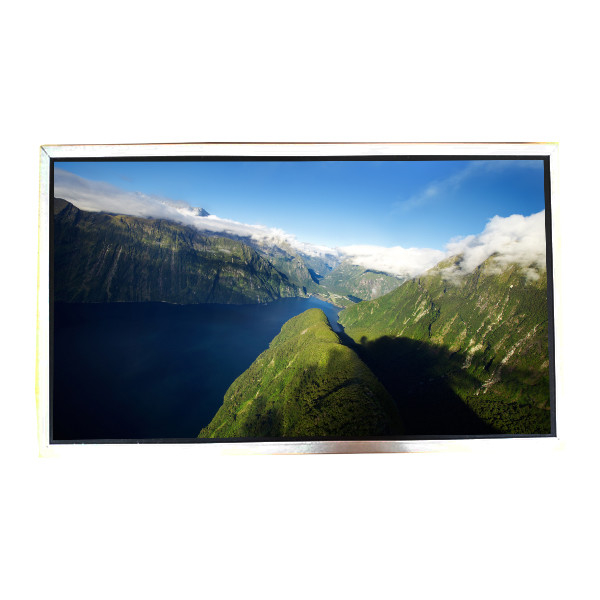

LTM185AT02 18.5 inch 1366*768 LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Samsung |
| Model Number: | LTM185AT02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTM185AT02 | Screen Size: | 18.5inch |
|---|---|---|---|
| Resolution: | 1366×768(RGB), WXGA 84PPI | Used For: | Desktop Monitor |
| Active Area: | 409.8(W)×230.4(H) Mm | Outline (mm): | 430.37(W)×254.6(H) ×16.5(D) Mm |
| Luminance: | 300 Cd/m² (Typ.) | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) |
| Signal Type: | LVDS (1 Ch, 8-bit) , 30 Pins Connector | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C |
Product Description
LTM185AT02 18.5 inch 1366*768 LCD Display Screen
Product details :
| Samsung LCD Screen LTM185AT02 | |
|---|---|
| Manufacturer | Samsung |
| Model Name | LTM185AT02 |
| Screen Size | 18.5inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366×768(RGB), WXGA 84PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 409.8(W)×230.4(H) mm |
| Bezel Opening | 413.4(W)×234.0(H) mm |
| Outline (mm) | 430.37(W)×254.6(H) ×16.5(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 5 (Typ.)(Tr+Td) |
| View Direction | - |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 72% NTSC |
| Light Source | 2 pcs CCFL , 50K hours , Without Driver |
| Mass | 2.10Kgs (Max.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C |
| LTM185AT02 18.5 inch 1366*768 LCD Display Screen | |
