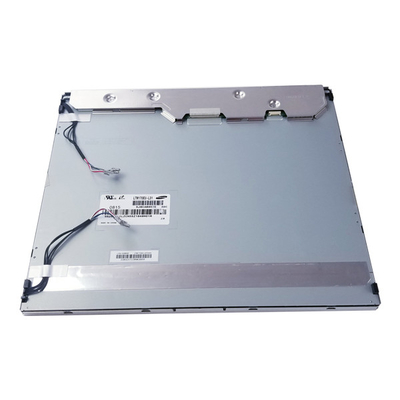

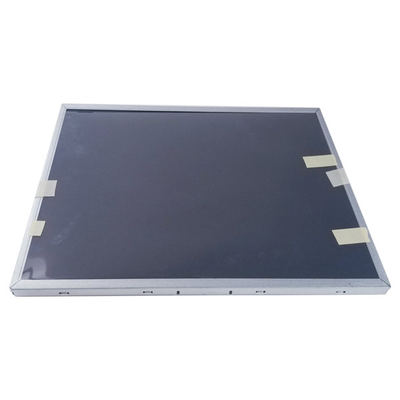

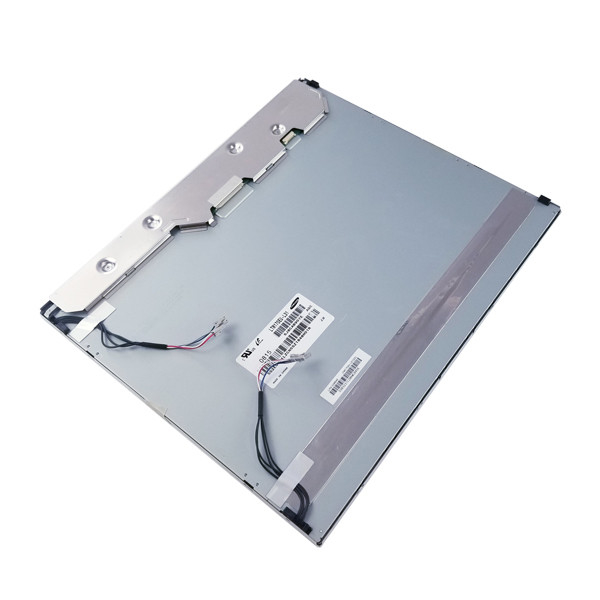

LTM170EU-L31 17.0 inch 1280*1024 LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Samsung |
| Model Number: | LTM170EU-L31 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTM170EU-L31 | Screen Size: | 17.0inch |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 96PPI | Used For: | Desktop Monitor |
| Active Area: | 337.92(W)×270.336(H) Mm | Outline (mm): | 358.5 × 296.5 × 17.5 (H×V×D) |
| Luminance: | 300 Cd/m² (Typ.) | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) |
| Mass: | 2.00Kgs (Max.) | Signal Type: | LVDS (2 Ch, 8-bit) , 30 Pins Connector |
| Environment: | Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C | ||
Product Description
LTM170EU-L31 17.0 inch 1280*1024 LCD Display Screen
Product details :
| Samsung LCD Screen LTM170EU-L31 | |
|---|---|
| Manufacturer | Samsung |
| Model Name | LTM170EU-L31 |
| Screen Size | 17.0inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024, SXGA 96PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 337.92(W)×270.336(H) mm |
| Bezel Opening | 341.6(W)×274.0(H) mm |
| Outline (mm) | 358.5 × 296.5 × 17.5 (H×V×D) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 1.3/3.7 (Typ.)(Tr/Td) ms |
| View Direction | - |
| Work Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 72% NTSC |
| Backlight | 4 pcs CCFL , 50K hours , No Driver |
| Mass | 2.00Kgs (Max.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Environment | Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LTM170EU-L31 17.0 inch 1280*1024 LCD Display Screen | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Shipping:
You can track the shipment with the tracking number we give to you. If you can't get the status of your shipment or you find the status of your shipment abnormal, please feel free to contact us. We will help you check it with post office or courier and cooperate closely with you to solve the problem.
FAQ:
Q: How to order Samsung LTM170EU-L31 ?
A: We accept T/T , PAYPAL , WESTERN UNION.
Q: When will ship my order of LTM170EU-L31 ?
A: The order are shipped within 1-2 working days after received the payment.
Q: Can you test 17.0 inch lcd panel LTM170EU-L31 before shipping ?
A: Don't Worry , Our Samsung lcd LTM170EU-L31 was tested ok before shipping
Q: Can you declared low value for my order lcd pane LTM170EU-L31 ?
A: Yes we can , but you need to leave message to us before shipping .
