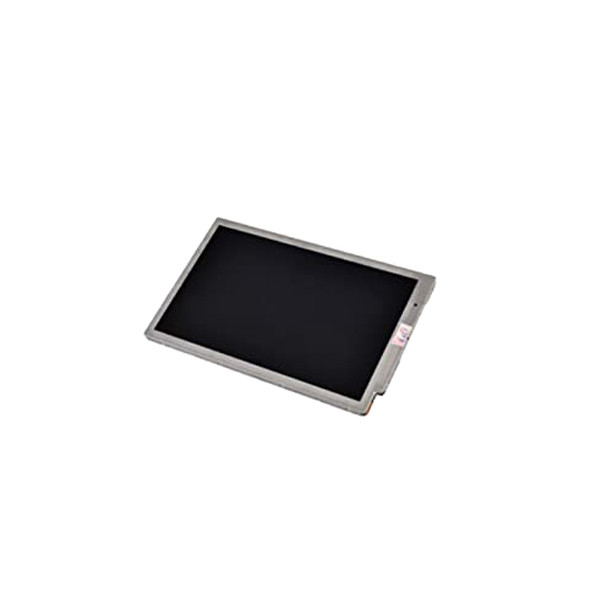

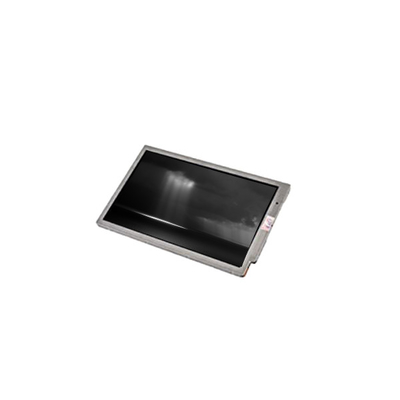

LTM170E8-L21 Original in stock 17.0 inch LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Samsung |
| Model Number: | LTM170E8-L21 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTM170E8-L21 | Screen Size: | 17.0inch |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 96PPI | Used For: | Desktop Monitor |
| Active Area: | 337.92(W)×270.336(H) Mm | Outline (mm): | 354.9(W)×290.3(H)×13.3(D) |
| Luminance: | 300 Cd/m² (Typ.) | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) |
| Mass: | 1.70Kgs (Max.) | Signal Type: | LVDS (2 Ch, 8-bit), 30 PinsConnector |
| Environment: | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 65 °C | ||
Product Description
LTM170E8-L21 Original in stock 17.0 inch LCD Display Screen
Product details :
| Brand | Samsung |
|---|---|
| Model P/N | LTM170E8-L21 3 Compatible |
| Diagonal Size | 17.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024, SXGA 96PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 337.92(W)×270.336(H) mm |
| Bezel Opening | 340.92(W)×273.336(H) mm |
| Outline Size | 354.9(W)×290.3(H)×13.3(D) mm |
| Brightness | 300 cd/m² (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M 100%sRGB |
| Frequency | 60Hz |
| Weight | 1.70Kgs (Max.) |
| Surface | Antiglare (Haze 44%), Hard coating (3H) |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| Display Mode | PVA, Normally Black, Transmissive |
| Response Time | 15/10 (Typ.)(Tr/Td) |
| Lamp Type | 4 pcs CCFL , 50K hours , Without Driver |
| Touch Screen | Without |
| Application | Desktop Monitor |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 65 °C |
| LTM170E8-L21 Original in stock 17.0 inch LCD Display Screen | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Shipping:
You can track the shipment with the tracking number we give to you. If you can't get the status of your shipment or you find the status of your shipment abnormal, please feel free to contact us. We will help you check it with post office or courier and cooperate closely with you to solve the problem.
FAQ:
Q: How long will I receive my goods LTM170E8-L21 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: If I place order now,when will you ship the goods of LTM170E8-L21 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders of LTM170E8-L21?
A: Of course!sample order is welcome !
Q: How long is the warranty ?
A: We offer 90days warranty .
