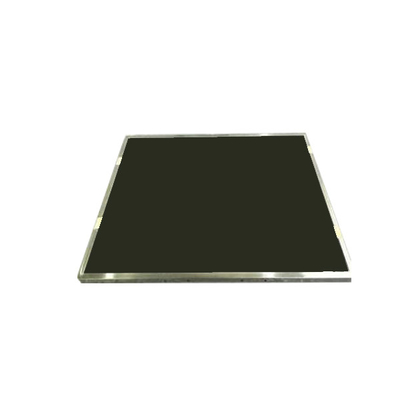

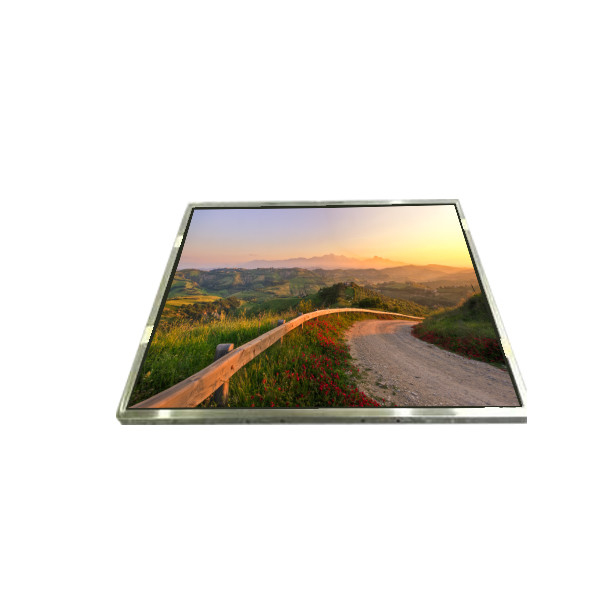

LTM170E8-L02 17.0 inch LCD Panel for Desktop Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | Samsung |
| Model Number: | LTM170E8-L02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTM170E8-L02 | Screen Size: | 17.0inch |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 96PPI | Used For: | Desktop Monitor |
| Active Area: | 337.92(W)×270.336(H) Mm | Outline (mm): | 354.9(W)×290.3(H)×13.3(D) Mm |
| Luminance: | 250 Cd/m² (Typ.) | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) |
| Mass: | 1.70Kgs (Max.) | Signal Type: | LVDS (2 Ch, 8-bit) , 30 Pins Connector |
| Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 65 °C | ||
Product Description
LTM170E8-L02 17.0 inch LCD Panel for Desktop Monitor
Product details :
| Samsung LCD Screen LTM170E8-L02 | |
|---|---|
| Manufacturer | Samsung |
| Model Name | LTM170E8-L02 |
| Screen Size | 17.0inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024, SXGA 96PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 337.92(W)×270.336(H) mm |
| Bezel Opening | 340.92(W)×273.336(H) mm |
| Outline (mm) | 354.9(W)×290.3(H)×13.3(D) mm |
| Treatment | Antiglare (Haze 44%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 15/10 (Typ.)(Tr/Td) |
| View Direction | Symmetry |
| Operating Mode | PVA, Normally Black, Transmissive |
| Support Color | 16.7M 100% sRGB |
| Light Source | CCFL [4 pcs] , 50K hours , With Inverter |
| Mass | 1.70Kgs (Max.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 65 °C |
| LTM170E8-L02 17.0 inch LCD Panel for Desktop Monitor | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Shipping:
You can track the shipment with the tracking number we give to you. If you can't get the status of your shipment or you find the status of your shipment abnormal, please feel free to contact us. We will help you check it with post office or courier and cooperate closely with you to solve the problem.
FAQ:
Q: How long will I receive my goods LTM170E8-L02 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can You declare my order of LTM170E8-L02 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods LTM170E8-L02 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
