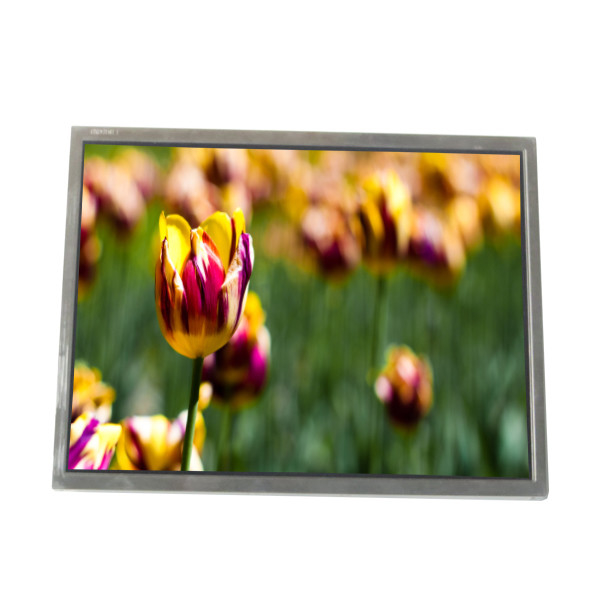

LTM150XO-L21 15.0 inch 1024*768 TFT LCD Screen Display

Brand Name:	Samsung
Model Number:	LTM150XO-L21
MOQ:	1pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LTM150XO-L21

Screen Size:

15.0inch

Resolution:

1024(RGB)×768, XGA 85PPI

Used For:

Desktop Monitor

Active Area:

304.128(W)×228.096(H) Mm

Outline (mm):

326.5(W)×253.5(H)×12(D)

Luminance:

250 Cd/m² (Typ.)

Viewing Angle:

75/75/60/75 (Typ.)(CR≥10)

Mass:

1.05Kgs (Max.)

Signal Type:

LVDS (1 Ch, 8-bit) , 20 Pins Connector

Environment:

Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C

Supply Ability:

100000 Unit/Units per Month

Product Description

LTM150XO-L21 15.0 inch 1024*768 TFT LCD Screen Display

Product details :

Samsung LCD Screen LTM150XO-L21
Manufacturer	Samsung
Model Name	LTM150XO-L21
Screen Size	15.0inch
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 85PPI
Pixel layout	RGB Vertical Stripe
Active Area	304.128(W)×228.096(H) mm
Bezel Opening	-
Outline (mm)	326.5(W)×253.5(H)×12(D)
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	700:1 (Typ.) (TM)
Viewing angle	75/75/60/75 (Typ.)(CR≥10)
Response	2/6 (Typ.)(Tr/Td) ms
View Direction	-
Operating Mode	APVA, Normally Black, Transmissive
Support Color	16.7M 63% NTSC
Light Source	2 pcs CCFL , 50K hours , No Driver
Mass	1.05Kgs (Max.)
Used for	Desktop Monitor
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (1 ch, 8-bit) , 20 pins Connector
Voltage Supply	3.3V (Typ.)
Environment	Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C
LTM150XO-L21 15.0 inch 1024*768 TFT LCD Screen Display

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

LTM150XO-L21 15.0 inch 1024*768 TFT LCD Screen Display 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

Shipping:

You can track the shipment with the tracking number we give to you. If you can't get the status of your shipment or you find the status of your shipment abnormal, please feel free to contact us. We will help you check it with post office or courier and cooperate closely with you to solve the problem.

FAQ:

Q: How long is the warranty of LTM150XO-L21 ?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of LTM150XO-L21 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of LTM150XO-L21 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can I pay my goods LTM150XO-L21 by credit card ?

A: Yes!you can use your credit card through your Paypal account.
