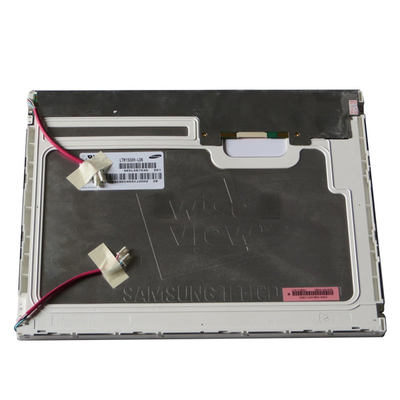

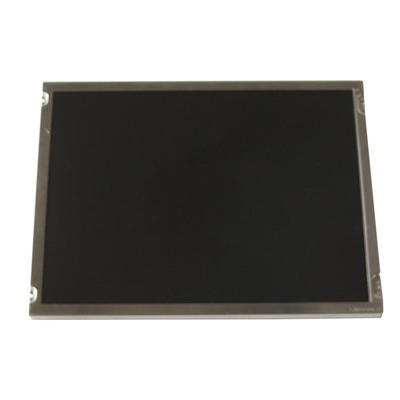

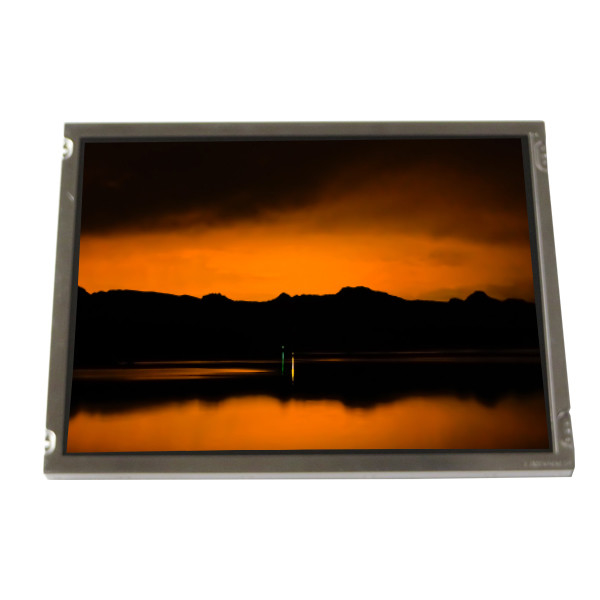

LTM150XH-L06 for SAMSUNG 15.0 inch TFT LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Samsung |
| Model Number: | LTM150XH-L06 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTM150XH-L06 | Screen Size: | 15.0inch |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 85PPI | Used For: | Desktop Monitor |
| Active Area: | 304.128(W)×228.096(H) Mm | Outline (mm): | 331.6(W)×254.8(H) ×13(D) Mm |
| Luminance: | 400 Cd/m² (Typ.) | Viewing Angle: | 70/70/60/65 (Typ.)(CR≥10) |
| Mass: | 650g (Typ.) | Signal Type: | LVDS (1 Ch, 8-bit) , 20 Pins Connector |
| Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60°C | ||
Product Description
LTM150XH-L06 for SAMSUNG 15.0 inch TFT LCD Screen Display
Product details :
| Samsung LCD Screen LTM150XH-L06 | |
|---|---|
| Manufacturer | Samsung |
| Model Name | LTM150XH-L06 |
| Screen Size | 15.0inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 307.2(W)×231.1(H) mm |
| Outline (mm) | 331.6(W)×254.8(H) ×13(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Viewing angle | 70/70/60/65 (Typ.)(CR≥10) |
| Response | 5/20 (Typ.)(Tr/Td) |
| View Direction | - |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 65% NTSC |
| Light Source | 4 pcs CCFL , 35K hours , Without Driver |
| Mass | 1.35Kgs (Max.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60°C |
| LTM150XH-L06 for SAMSUNG 15.0 inch TFT LCD Screen Display | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Shipping:
You can track the shipment with the tracking number we give to you. If you can't get the status of your shipment or you find the status of your shipment abnormal, please feel free to contact us. We will help you check it with post office or courier and cooperate closely with you to solve the problem.
FAQ:
Q: How to order Samsung LTM150XH-L06 ?
A: We accept T/T , PAYPAL , WESTERN UNION .
Q: What happen if the lcd pane LTM150XH-L06 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: When will my order 15.0 inch lcd panel LTM150XH-L06 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: Can you declared low value of my order about LTM150XH-L06 ?
A: Yes , we can . But you need to leave message to us before shipping.
