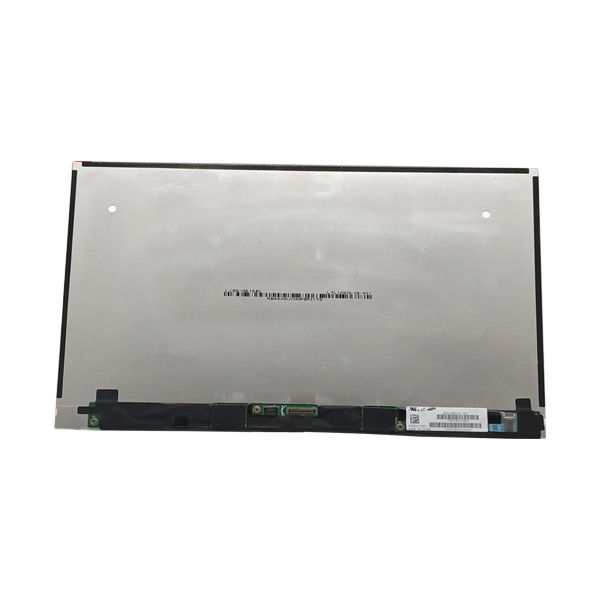

LTL106HL02-001 Original in stock 10.6 inch LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Samsung |
| Model Number: | LTL106HL02-001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTL106HL02-001 | Screen Size: | 10.6inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 207PPI | Active Area: | 234.72(W)×132.03(H) Mm |
| Outline Size: | 244.92(W)×145.06(H)×4.56(D) Mm | Luminance: | 400 Cd/m² (Typ.) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Weight: | 140g (Max.) |
| Used For: | Pad & Tablet | Signal Type: | LVDS (2 Ch, 8-bit) , 60 Pins Connector |
| Environment: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C | ||
Product Description
LTL106HL02-001 Original in stock 10.6 inch LCD Display Screen
Product details :
| Samsung LCD Screen LTL106HL02-001 | |
|---|---|
| Manufacturer | Samsung |
| Model Name | LTL106HL02-001 |
| Screen Size | 10.6inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 207PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 234.72(W)×132.03(H) mm |
| Bezel Opening | - |
| Outline (mm) | 244.92(W)×145.06(H)×4.56(D) mm |
| Treatment | Glare (Haze 0%), Hard coating (2H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 16 (Typ.)(Tr+Td) ms |
| View Direction | - |
| Operating Mode | PLS, Normally Black, Transmissive |
| Support Color | 16.7M 50% NTSC |
| Light Source | 6S6P WLED , 12K hours , With LED Driver |
| Mass | 140g (Max.) |
| Used for | Pad & Tablet |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 60 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LTL106HL02-001 Original in stock 10.6 inch LCD Display Screen | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Shipping:
You can track the shipment with the tracking number we give to you. If you can't get the status of your shipment or you find the status of your shipment abnormal, please feel free to contact us. We will help you check it with post office or courier and cooperate closely with you to solve the problem.
FAQ:
Q: How do you ship my goods LTL106HL02-001 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of LTL106HL02-001 ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of LCD panel Samsung LTL106HL02-001 at a very low value ?
A: Yes , we can . pls inform us before shipping .
