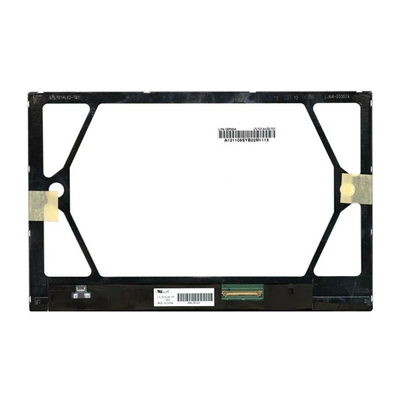

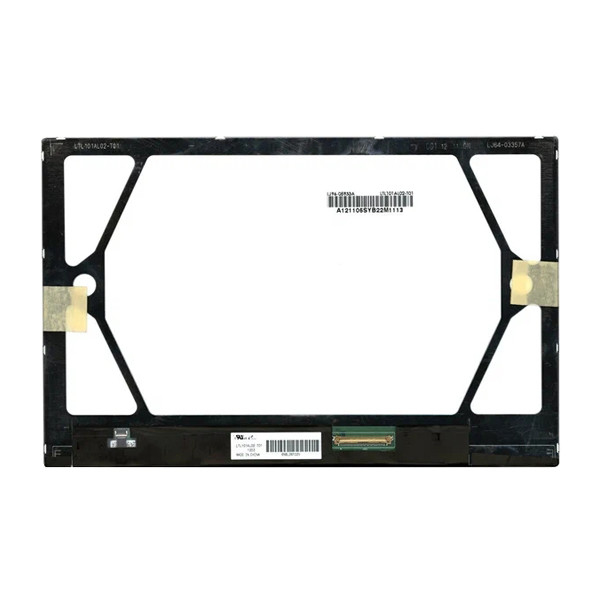

LTL101AL06-001 10.1 inch LCD Screen Panel 1280*800 LCD display
Product Details:
| Place of Origin: | China |
| Brand Name: | Samsung |
| Model Number: | LTL101AL06-001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTL101AL06-001 | Screen Size: | 10.1inch |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA 149PPI | Active Area: | 216.96(W)×135.6(H) Mm |
| Outline (mm): | 228.21(W)×148.86(H) ×4.59(D) Mm | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) |
| Luminance: | 400 Cd/m² (Typ.) | Signal Type: | LVDS (1 Ch, 8-bit) , 45 Pins Connector |
| Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C | Used For: | Pad & Tablet |
Product Description
LTL101AL06-001 10.1 inch LCD Screen Panel 1280*800 LCD display
LTL101AL06-001 LCD Panel Product details :
| Samsung LCD Screen LTL101AL06-001 | |
|---|---|
| Manufacturer | Samsung |
| Model Name | LTL101AL06-001 |
| Screen Size | 10.1inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×800, WXGA 149PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 216.96(W)×135.6(H) mm |
| Bezel Opening | 218.56(W)×137.2(H) mm |
| Outline (mm) | 228.21(W)×148.86(H) ×4.59(D) mm |
| Treatment | Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 900:1 (Typ.) (TM) |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(Tr+Td) |
| View Direction | - |
| Operating Mode | PLS, Normally Black, Transmissive |
| Support Color | 16.7M 50% NTSC |
| Light Source | WLED , Without Driver |
| Mass | 130±10g |
| Used for | Pad & Tablet |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) , 45 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LTL101AL06-001 10.1 inch LCD Screen Panel 1280*800 LCD display | |
LTL101AL06-001 LCD Module Reminder:
Product Information:
While product information is sourced from the internet, we assure you that our pictures are genuine representations of the product. We ship your order exactly as depicted in our images. To avoid any inconvenience, please compare our pictures with your desired product before making a purchase. Please note that return postal costs for an incorrect purchase are at the buyer's expense.
Order Processing Time:
Your order will be processed and shipped out within 2-7 working days from the date of purchase.
Arrival Time:
The estimated arrival time for your order is between 30-60 days, or even longer, depending on the postal service in your country. If you haven't received your product within 60 days, we kindly ask for your patience and suggest waiting a few more days.
Shipping Method:
If you have chosen the shipping option "China Post Ordinary Small Packet Plus," please be aware that this method does not provide tracking outside of China. We appreciate your understanding and patience in waiting for your package to arrive. Thank you for your cooperation.
LTL101AL06-001 LCD Panel Shipping and Package :
LTL101AL06-001 LCD Module Return Policy:
Return Conditions:
Returned products must be in their original condition, including the box, packaging, and all other accessories.
Returns that result from customer error will be subject to an actual shipping fee deduction from the refund.
Refund or Replacement:
Upon receipt of the returned item, we will inspect it to ensure it meets our return conditions.
Depending on the circumstances, we will offer a partial or full refund or a replacement at our cost.
Contact Us:
To initiate a return or if you have any questions regarding the return process, please contact us at [sales@yongs-hk.com]. Our dedicated customer service team will be happy to assist you.
Please note that shipping fees and YONGS (Your Own Negligence Goods Shipping) charges are non-refundable.
LTL101AL06-001 LCD Panel FAQ :
Q: How long is the warranty of LTL101AL06-001 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of LTL101AL06-001 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders for LTL101AL06-001 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of LTL101AL06-001 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
