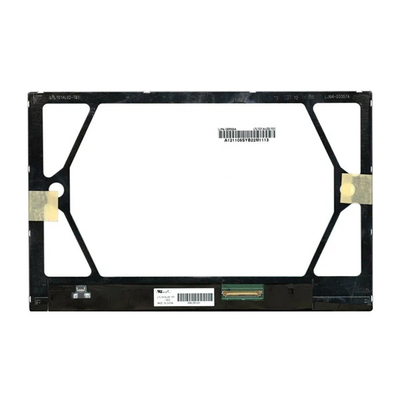

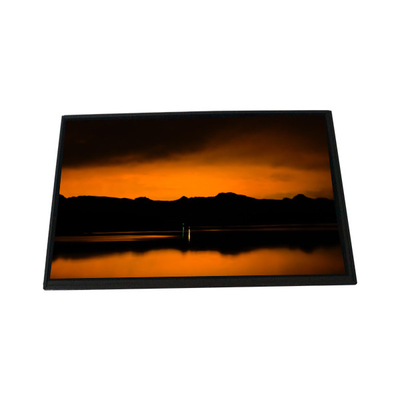

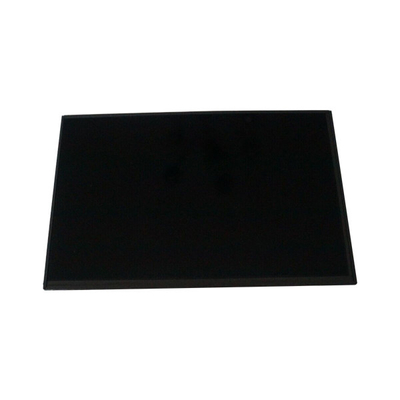

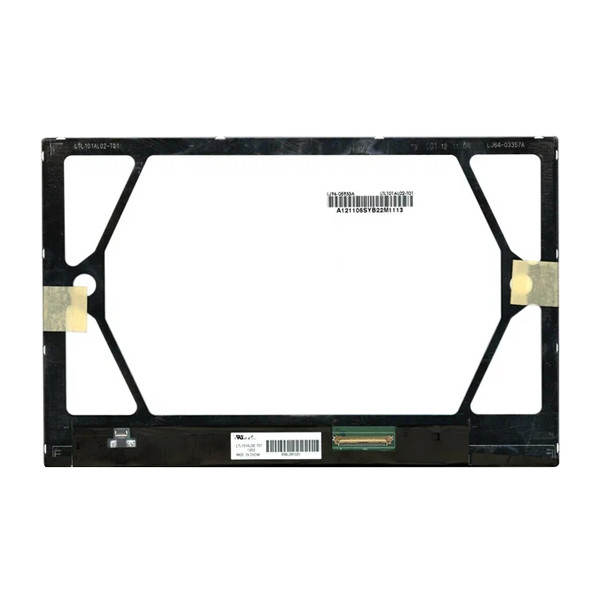

LTL101AL02-T01 10.1 inch LCD Screen Panel 1280*800 LCD display TFT Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Samsung |
| Model Number: | LTL101AL02-T01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTL101AL02-T01 | Screen Size: | 10.1inch |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA 149PPI | Active Area: | 216.96(W)×135.6(H) Mm |
| Outline (mm): | 228.06×148.05×4.79 (H×V×D) | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) |
| Signal Type: | LVDS (1 Ch, 6-bit) , Connector 40 Pins | Environment: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Used For: | Pad & Tablet | Luminance: | 400 Cd/m² (Typ.) |
| Mass: | 131/141g (Typ./Max.) | ||
Product Description
LTL101AL02-T01 10.1 inch LCD Screen Panel 1280*800 LCD display TFT Module
LTL101AL02-T01 LCD Panel Product details :
| Samsung LCD Screen LTL101AL02-T01 | |
|---|---|
| Manufacturer | Samsung |
| Model Name | LTL101AL02-T01 |
| Screen Size | 10.1inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×800, WXGA 149PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 216.96(W)×135.6(H) mm |
| Bezel Opening | 220.8(W)×139.2(H) mm |
| Outline (mm) | 228.06×148.05×4.79 (H×V×D) |
| Treatment | Hard coating (2H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(Tr+Td) ms |
| View Direction | - |
| Operating Mode | PLS, Normally Black, Transmissive |
| Support Color | 262K 50% NTSC |
| Light Source | 9S4P WLED , 10K hours , With LED Driver |
| Mass | 131/141g (Typ./Max.) |
| Used for | Pad & Tablet |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit) , Connector 40 pins |
| Voltage Supply | 3.3V (Typ.) |
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LTL101AL02-T01 10.1 inch LCD Screen Panel 1280*800 LCD display TFT Module | |
