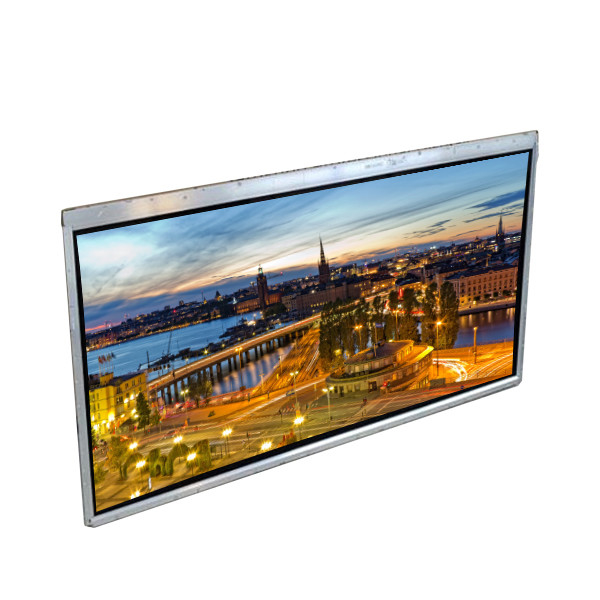

LTI460AP01-101 46.0 inch 1366*768 tft LCD Display Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Samsung |
| Model Number: | LTI460AP01-101 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTI460AP01-101 | Screen Size: | 46.0 Inch |
|---|---|---|---|
| Resolution: | 1366×768(RGB), WXGA 34PPI | Active Area: | 1018.35(W)×572.544(H) Mm |
| Outline (mm): | 1056.1(W)×631.3(H) ×8.6(D) Mm | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) |
| Signal Type: | LVDS (1 Ch, 8-bit) , 30 Pins Connector | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Mass: | 4.00Kgs (Max.) | Used For: | Digital Signage Transparent Display |
Product Description
LTI460AP01-101 46.0 inch 1366*768 tft LCD Display Module
LTI460AP01-101 LCD Panel Product details :
| Samsung LCD Screen LTI460AP01-101 | |
|---|---|
| Manufacturer | Samsung |
| Model Name | LTI460AP01-101 |
| Screen Size | 46.0inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366×768(RGB), WXGA 34PPI |
| Pixel layout | RGB Horizontal Stripe |
| Active Area | 1018.35(W)×572.544(H) mm |
| Bezel Opening | 1024.5(W)×574.7(H) mm |
| Outline (mm) | 1056.1(W)×631.3(H) ×8.6(D) mm |
| Treatment | Glare (Haze 0%) |
| Luminance | - |
| Contrast Ratio | 4500:1 (Typ.) (TM) |
| Viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 8 (Typ.)(G to G) |
| View Direction | Symmetry |
| Operating Mode | PVA, Normally Black, Transmissive |
| Support Color | 16.7M 70% NTSC |
| Light Source | No B/L |
| Mass | 4.00Kgs (Max.) |
| Used for | Digital Signage Transparent Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LTI460AP01-101 46.0 inch 1366*768 tft LCD Display Module | |
