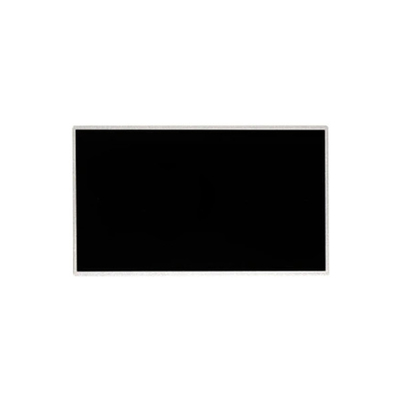

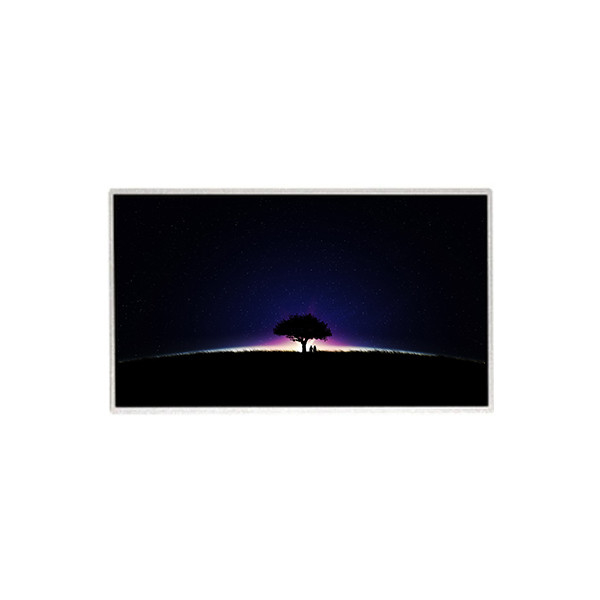

HM236WU3-101 23.6 inch LCD Display Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | HM236WU3-101 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HM236WU3-101 | Screen Size: | 23.6" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 93PPI | Active Area: | 521.28(W)×293.22(H) Mm |
| Outline Dim.: | 535.9(W)×307(H)×1.43(D) Mm | Luminance: | 1000:1 (Typ.) (TM) |
| Viewing Angle: | 85/85/80/80 (Typ.)(CR≥10) | Signal Type: | LVDS (2 Ch, 8-bit), 30 PinsConnector |
| Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C | Used For: | Desktop Monitor |
Product Description
HM236WU3-101 23.6 inch LCD Display Screen Panel
HM236WU3-101 LCD Panel Product details :
| Brand | BOE |
| Model P/N | HM236WU3-101 |
| Diagonal Size | 23.6" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1920(RGB)×1080, FHD 93PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 521.28(W)×293.22(H) mm |
| Outline Size | 535.9(W)×307(H)×1.43(D) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 1.5/3.5 (Typ.)(Tr/Td) |
| Glass Depth | 0.50+0.50 mm |
| Transmissivity | 5.3% (Typ.)(with Polarizer) |
| Display Colors | 16.7M 72%NTSC |
| Lamp Type | No B/L |
| Frequency | 60Hz |
| Touch Screen | Without |
| Driver IC | COF Built-in 6 source + 3 gate chips |
| Panel Weight | 550g (Max.) |
| Application | Desktop Monitor |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
HM236WU3-101 LCD Module Reminder:
Product Information:
While product information is sourced from the internet, we assure you that our pictures are genuine representations of the product. We ship your order exactly as depicted in our images. To avoid any inconvenience, please compare our pictures with your desired product before making a purchase. Please note that return postal costs for an incorrect purchase are at the buyer's expense.
Order Processing Time:
Your order will be processed and shipped out within 2-7 working days from the date of purchase.
Arrival Time:
The estimated arrival time for your order is between 30-60 days, or even longer, depending on the postal service in your country. If you haven't received your product within 60 days, we kindly ask for your patience and suggest waiting a few more days.
Shipping Method:
If you have chosen the shipping option "China Post Ordinary Small Packet Plus," please be aware that this method does not provide tracking outside of China. We appreciate your understanding and patience in waiting for your package to arrive. Thank you for your cooperation.
HM236WU3-101 LCD Panel Shipping and Package :
HM236WU3-101 LCD Module Return Policy:
Return Conditions:
Returned products must be in their original condition, including the box, packaging, and all other accessories.
Returns that result from customer error will be subject to an actual shipping fee deduction from the refund.
Refund or Replacement:
Upon receipt of the returned item, we will inspect it to ensure it meets our return conditions.
Depending on the circumstances, we will offer a partial or full refund or a replacement at our cost.
Contact Us:
To initiate a return or if you have any questions regarding the return process, please contact us at [sales@yongs-hk.com]. Our dedicated customer service team will be happy to assist you.
Please note that shipping fees and YONGS (Your Own Negligence Goods Shipping) charges are non-refundable.
HM236WU3-101 LCD Panel FAQ :
Q: Can I pay my order of HM236WU3-101 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of HM236WU3-101 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of HM236WU3-101 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90 days warranty .
HM236WU3-101 LCD Module Contact Us:
We are dedicated to providing exceptional customer service. If you have any questions or concerns regarding the LTE430WQ-F0C LCD Module, please do not hesitate to reach out to us. Our team is committed to promptly addressing all inquiries and providing the assistance you need.
You can email us at [sales@yongs-hk.com]. We strive to respond to all messages within 24 hours. However, please understand that there may be a delay in response during non-business hours.
Your satisfaction is our priority, and we look forward to assisting you with any issues or queries you may have. Thank you for choosing our products.
