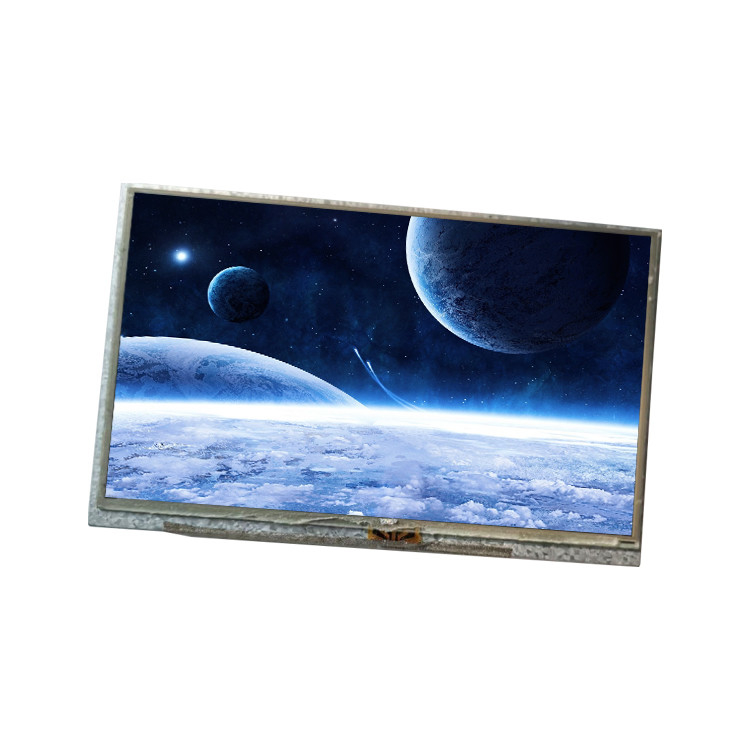

Name: HSD050IDW1-A50-0299 5.0 inch 800*480 lcd Screen panel
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: HSD050IDW1-A50-0299
Availability: InStock

Brand Name:	HannStar
Model Number:	HSD050IDW1-A50-0299
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HSD050IDW1-A50-0299

Resolution:

800(RGB)×480, WVGA 188PPI

Active Area:

108(W)×64.8(H) Mm

Outline(mm):

114.8 × 73.2 × 1.43 (H×V×D)

Contrast Ratio:

600 : 1 (Typ.) (TM)

Viewing Angle:

75/75/60/70 (Typ.)(CR≥10)

Transmissivity:

4.48% (Typ.)(with Polarizer)

Used For:

Automotive Display / Portable Navigation / Video Door Phone / MID UMPC / MP3 PMP

Signal Type:

TTL (1 Ch, 8-bit) , 40 Pins FPC

Voltage Supply:

3.3V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

HSD050IDW1-A50-0299 5.0 inch 800*480 lcd Screen panel

HSD050IDW1-A50-0299 LCD Panel Product details :

HannStar LCD Screen HSD050IDW1-A50-0299
Panel Brand	HannStar
Model P/N	HSD050IDW1-A50-0299
Diagonal Size	5.0"
Panel Type	a-Si TFT-LCD, CELL , FOG
Resolution	800(RGB)×480, WVGA 188PPI
Pixel Format	RGB Vertical Stripe
Active Area	108(W)×64.8(H) mm
Outline(mm)	114.8 × 73.2 × 1.43 (H×V×D)
Luminance	0 cd/m²
Contrast Ratio	600 : 1 (Typ.) (TM)
Viewing Angle	75/75/60/70 (Typ.)(CR≥10)
Response	2/6 (Typ.)(Tr/Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Glass Thickness	0.50+0.50 mm
Transmissivity	4.48% (Typ.)(with Polarizer)
Color Depth	16.2M 47% NTSC
Backlight	No B/L
Used for	Automotive Display / Portable Navigation / Video Door Phone / MID UMPC / MP3 PMP
Touchscreen	Without
Signal Type	TTL (1 ch, 8-bit) , 40 pins FPC
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.9G (28.4 m/s²)
HSD050IDW1-A50-0299 5.0 inch 800*480 lcd Screen panel

HSD050IDW1-A50-0299 LCD Display Product Quality Assurance:

Originality and Newness:

Our products are sourced directly from reputable manufacturers, ensuring their originality and newness.

Thorough Testing Process:

Before dispatching any goods, our dedicated team of engineers rigorously tests each HSD050IDW1-A50-0299 LCD display to ensure its functionality and performance.

Only products that pass our comprehensive testing process are approved for shipment to our customers.

Quality Assurance Guarantee:

We stand behind the quality of our products. Every HSD050IDW1-A50-0299 LCD display undergoes meticulous scrutiny to meet our high standards before being sent to you.

Rest Assured Buying Experience:

With our commitment to quality assurance, you can shop with confidence at our store.

Rest assured that the product you receive will meet your expectations and provide reliable performance.

HSD050IDW1-A50-0299 LCD Panel Shipping and Package :

HSD050IDW1-A50-0299 LCD Display Shipment:

Order Placement and Shipping Method:

Upon placing your order, kindly select your preferred shipping method and complete the payment, which includes the shipping fee.

Processing Time:

Once your payment is successfully processed, we will endeavor to dispatch your items within 3 days.

Delivery Timeframe:

While we strive to expedite the delivery process, please note that we cannot guarantee specific delivery times, especially for international shipments.

Differences in customs clearing times in individual countries may impact the speed at which your product is inspected and subsequently delivered.

We appreciate your understanding and patience regarding any potential delays that may arise during the customs clearance process.

HSD050IDW1-A50-0299 LCD Display Return & Warranty Policy:

Defective or Non-functional Product:

In the event that the product is defective or not functioning upon receipt, kindly contact us immediately for assistance.

30 Days Money Back or Replacement:

We offer a 30-day window for you to choose either a refund or a replacement, according to your preference.

Return Process for Defective Items:

Upon providing proof of the product's defectiveness or malfunction, please proceed with returning the item to us.

Upon receipt of the returned item, we will promptly dispatch a replacement unit to you.

Condition of Returned Items:

All returned items, along with their accessories, must be in their original and unused condition.

Warranty Label:

Each item is affixed with a warranty label. Please refrain from removing or tampering with this label.

This measure is taken to prevent errors and misunderstandings during the warranty process.

HSD050IDW1-A50-0299 LCD Panel FAQ :

Q: How long will I receive my goods HSD050IDW1-A50-0299 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: If I place order now,when will you ship the goods of HSD050IDW1-A50-0299 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: How to make payment of HSD050IDW1-A50-0299 ?

A: We accept T/T , Paypal , western union .
