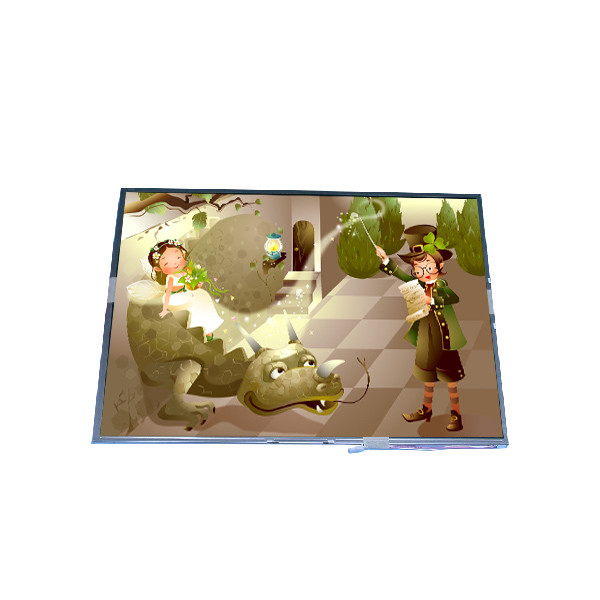

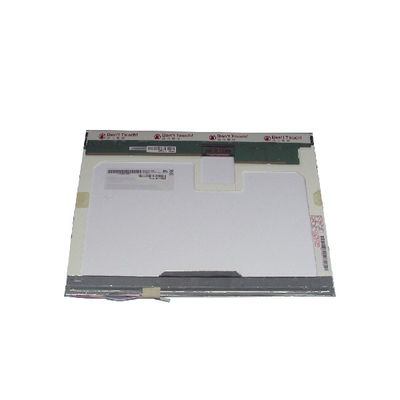

B150XN05 V0 15.0 inch 1024*768 LCD Display 60Hz
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B150XN05 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B150XN05 V0 | Resolution: | 1024(RGB)×768 XGA 85PPI |
|---|---|---|---|
| Active Area: | 304.128(H)×228.096(V) Mm | Brightness (cd/m²): | 320 Cd/m² (Typ.) |
| Contrast Ratio: | 400:1 (Typ.) (TM) | Viewing Angle: | 60/60/45/55 (Typ.) (CR≥10) |
| Responding Speed: | 5/20 (Typ.)(Tr/Td) Ms | Refresh Rate: | 60Hz |
Product Description
B150XN05 V0 15.0 inch 1024*768 LCD Display 60Hz
B150XN05 V0 LCD Panel Product details :
| AUO LCD SCREEN B150XN05 V0 | |
|---|---|
| Panel Brand | AUO |
| Panel Model | B150XN05 V0 |
| Panel Size | 15.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×768 XGA 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 304.128(H)×228.096(V) mm |
| Bezel Opening | 307.13(W)×231.1(H) mm |
| Outline Size | 317.3 × 242 ×9.3(H×V×D) mm |
| Surface | Specular (Haze 0%), Hard coating (2H), Reflectivity 2.5% (Max.) |
| Brightness | 320 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Viewing Angle | 60/60/45/55 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 5/20 (Typ.)(Tr/Td) ms |
| Display Colors | 262K , 72% NTSC |
| Lamp Type | 2 pcs CCFL , 10K hours, without driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Signal Interface | LVDS (1 ch, 6-bit) , 30 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Storage temperature: -25 ~ 65 °C Operating temperature: 0 ~ 50 °C |
| B150XN05 V0 15.0 inch 1024*768 LCD Display 60Hz | |
B150XN05 V0 LCD Screen , Please note the following important instructions:
We highly advise seeking professional assistance for installation. Please ensure that experienced technicians handle the installation process for you to avoid any damage or mishaps.
Upon receiving the package, it is imperative to promptly check and test the screen. This step helps to identify any potential issues or defects early on, facilitating timely resolutions.
Don't overlook the protective film on the back of the screen. It is essential to remove this film before installation to prevent any interference with the display quality. Note that there might be protective film layers on both sides, so make sure to remove them all.
Exercise caution during handling, and avoid applying excessive pressure, as the LCD screen is a delicate and fragile product. Mishandling or pressing too hard can lead to irreversible damage, impacting its functionality and longevity.
These guidelines aim to ensure the optimal performance and longevity of your B150XN05 V0 LCD screen.
B150XN05 V0 LCD Panel Shipping and Package :
B150XN05 V0 LCD Screen Packing Instructions:
To ensure the utmost protection during transit, we employ a comprehensive packing procedure for the B150XN05 V0 LCD Screen:
Antistatic Bag: The screen is first carefully placed within an antistatic bag. This specialized bag prevents any static electricity buildup, safeguarding the sensitive electronic components from potential damage.
Bubble Bag: Next, the screen is enveloped in a bubble bag. This layer serves as an additional cushioning barrier, shielding the screen from impacts and vibrations that may occur during handling and transportation.
Bubble Chamber: Following the bubble bag, the screen is nestled within a bubble chamber. This chamber provides an extra layer of protection, ensuring that the screen remains securely cushioned and insulated from external forces throughout its journey.
Suitable Hard Carton: Finally, the screen, meticulously packed in its antistatic bag, bubble bag, and bubble chamber, is placed inside a sturdy hard carton. This carton is specifically chosen for its durability and strength, offering optimal protection against bumps, jolts, and compression during shipping.
By adhering to this meticulous packing process, we guarantee that your B150XN05 V0 LCD Screen arrives at its destination in pristine condition, ready for installation and use.
B150XN05 V0 LCD Screen Delivery & Customs Service :
Worldwide Shipping: Our shipping service extends globally, ensuring that customers worldwide can access our products with ease.
Thorough Testing: Prior to shipment, each item undergoes meticulous inspection to ensure both its appearance and functionality meet our stringent quality standards. This meticulous process guarantees that you receive a product of the highest quality.
90-Day Warranty: We stand behind the quality of our products. Therefore, we provide a 90-day warranty period, offering you peace of mind and assurance in your purchase.
Customs Duties: Please note that any taxes or customs duties imposed by the destination country are the responsibility of the buyer. We recommend checking with local authorities to understand any applicable charges.
Remote Area Surcharge: In instances where the delivery location is classified as a remote area, an additional surcharge may apply. This fee is to cover the additional costs associated with delivering to such locations and is borne by the buyer.
Express Shipping Options: By default, we utilize DHL for express shipping. However, in cases of unforeseen circumstances such as force majeure events causing backlogs at warehouses, we reserve the right to select an alternative express courier service such as UPS, FedEx, or TNT to expedite delivery and ensure prompt receipt of your order.
B150XN05 V0 LCD Panel FAQ :
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Do you accept the sample order of B150XN05 V0 ?
A: Yes, Welcome !
Q: How long the warranty of B150XN05 V0 ?
A: 90 days .
Q: What happen if the B150XN05 V0 received can't work ?
A: Our B150XN05 V0 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Want to Know more details about this product
