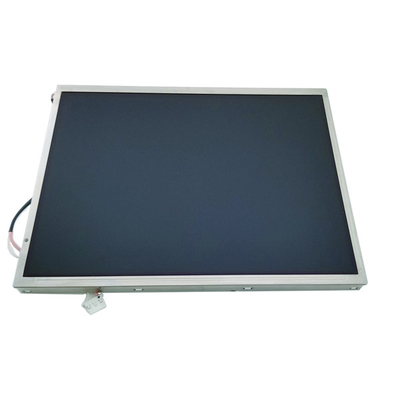

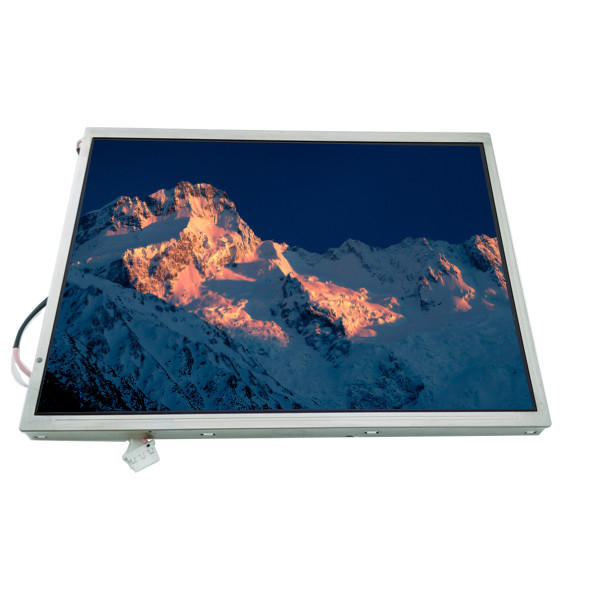

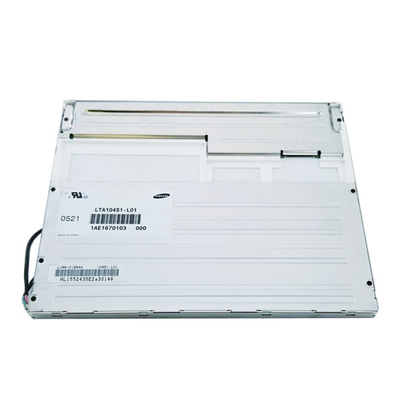

LTA104S1-L01 Original in stock 10.4 inch LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Samsung |
| Model Number: | LTA104S1-L01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTA104S1-L01 | Resolution: | 800(RGB)×600, SVGA 96PPI |
|---|---|---|---|
| Active Area: | 211.2(W)×158.4(H) Mm | Outline (mm): | 226 × 177.8 × 10.5 (H×V×D) |
| Luminance: | 350 Cd/m² (Typ.) | Viewing Angle: | 60/60/45/45 (Typ.)(CR≥10) |
| Signal Type: | LVDS (1 Ch, 6-bit) , 20 Pins Connector | Used For: | Laptop / Industrial / Digital Photo Frame |
| Environment: | Storage Temp.: -25 ~ 70 °C Operating Temp.: 0 ~ 65°C | ||
Product Description
LTA104S1-L01 Original in stock 10.4 inch LCD Display Screen
LTA104S1-L01 LCD Panel Product details :
| Samsung LCD Screen LTA104S1-L01 | |
|---|---|
| Manufacturer | Samsung |
| Model Name | LTA104S1-L01 |
| Screen Size | 10.4inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 96PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 211.2(W)×158.4(H) mm |
| Bezel Opening | 215.6(W)×162.8(H) mm |
| Outline (mm) | 226 × 177.8 × 10.5 (H×V×D) |
| Treatment | - |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 150:1 (Typ.) (TM) |
| Viewing angle | 60/60/45/45 (Typ.)(CR≥10) |
| Response | 10/30 (Typ.)(Tr/Td) ms |
| View Direction | - |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K |
| Light Source | 2 pcs CCFL , 30K hours , No Driver |
| Mass | - |
| Used for | Laptop Industrial Digital Photo Frame |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Environment | Storage Temp.: -25 ~ 70 °C Operating Temp.: 0 ~ 65°C |
| LTA104S1-L01 Original in stock 10.4 inch LCD Display Screen | |
LTA104S1-L01 LCD Screen , Please note the following important instructions:
We highly advise seeking professional assistance for installation. Please ensure that experienced technicians handle the installation process for you to avoid any damage or mishaps.
Upon receiving the package, it is imperative to promptly check and test the screen. This step helps to identify any potential issues or defects early on, facilitating timely resolutions.
Don't overlook the protective film on the back of the screen. It is essential to remove this film before installation to prevent any interference with the display quality. Note that there might be protective film layers on both sides, so make sure to remove them all.
Exercise caution during handling, and avoid applying excessive pressure, as the LCD screen is a delicate and fragile product. Mishandling or pressing too hard can lead to irreversible damage, impacting its functionality and longevity.
These guidelines aim to ensure the optimal performance and longevity of your LTA104S1-L01 LCD screen.
LTA104S1-L01 LCD Panel Shipping and Package :
LTA104S1-L01 LCD Screen Packing Instructions:
To ensure the utmost protection during transit, we employ a comprehensive packing procedure for the LTA104S1-L01 LCD Screen:
Antistatic Bag: The screen is first carefully placed within an antistatic bag. This specialized bag prevents any static electricity buildup, safeguarding the sensitive electronic components from potential damage.
Bubble Bag: Next, the screen is enveloped in a bubble bag. This layer serves as an additional cushioning barrier, shielding the screen from impacts and vibrations that may occur during handling and transportation.
Bubble Chamber: Following the bubble bag, the screen is nestled within a bubble chamber. This chamber provides an extra layer of protection, ensuring that the screen remains securely cushioned and insulated from external forces throughout its journey.
Suitable Hard Carton: Finally, the screen, meticulously packed in its antistatic bag, bubble bag, and bubble chamber, is placed inside a sturdy hard carton. This carton is specifically chosen for its durability and strength, offering optimal protection against bumps, jolts, and compression during shipping.
By adhering to this meticulous packing process, we guarantee that your LTA104S1-L01 LCD Screen arrives at its destination in pristine condition, ready for installation and use.
LTA104S1-L01 LCD Screen Delivery & Customs Service :
Worldwide Shipping: Our shipping service extends globally, ensuring that customers worldwide can access our products with ease.
Thorough Testing: Prior to shipment, each item undergoes meticulous inspection to ensure both its appearance and functionality meet our stringent quality standards. This meticulous process guarantees that you receive a product of the highest quality.
90-Day Warranty: We stand behind the quality of our products. Therefore, we provide a 90-day warranty period, offering you peace of mind and assurance in your purchase.
Customs Duties: Please note that any taxes or customs duties imposed by the destination country are the responsibility of the buyer. We recommend checking with local authorities to understand any applicable charges.
Remote Area Surcharge: In instances where the delivery location is classified as a remote area, an additional surcharge may apply. This fee is to cover the additional costs associated with delivering to such locations and is borne by the buyer.
Express Shipping Options: By default, we utilize DHL for express shipping. However, in cases of unforeseen circumstances such as force majeure events causing backlogs at warehouses, we reserve the right to select an alternative express courier service such as UPS, FedEx, or TNT to expedite delivery and ensure prompt receipt of your order.
LTA104S1-L01 LCD Panel FAQ :
Q: If I place order now,when will you ship the goods of LTA104S1-L01 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How to make payment of LTA104S1-L01 ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of LTA104S1-L01 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of LTA104S1-L01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Want to Know more details about this product
