For notebook B154EW08 V1 15.4 inch 1280*800 98PPI LCD Moudle

Brand Name:	AUO
Model Number:	B154EW08 V1
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

B154EW08 V1

Resolution:

1280(RGB)×800, WXGA, 98PPI

Active Area:

331.2(Horizontal)×207(Vertical) Mm

Brightness:

200 Cd/m² (Typ.)

Contrast Ratio:

400: 1 (Typ.) [Transmission]

Viewing Angle:

45/45/15/35 (Typ.) (CR≥10)

Response Time:

6/2 (Typ.)(Tr/Td) Ms

Frequency:

Supply Ability:

100000 Unit/Units per Month

Product Description

For notebook B154EW08 V1 15.4 inch 1280*800 98PPI LCD Moudle

B154EW08 V1 LCD Panel Product details :

AUO LCD Screen B154EW08 V1
manufacturer	AUO
Model Name	B154EW08 V1
screen size	15.4"
Screen type	LCM, a-Si TFT-LCD
Resolution	1280(RGB)×800 [WXGA] 98PPI
Pixel arrangement	RGB vertical bar
Display size	331.2(Horizontal)×207(Vertical) mm
Visual size	335.35(Horizontal)×211.05(Vertical) mm
Surface treatment	Mirror (Haze 0%), Hard coating (3H), reflectivity 4.3%
Display brightness	200 cd/m² (Typ.)
Contrast	400: 1 (Typ.) [Transmission]
Best perspective	6 o'clock
Optical mode	TN, normally white display, transmissive
Viewing angle	45/45/15/35 (Typ.)(CR≥10)
responding	6/2 (Typ.)(Tr/Td) ms
Number of	262K , 45% NTSC
Backlight type	CCFL [1 pcs], 12K hours, no driver
Screen weight	Thick screen (PCBA bending, thickness ≥5.2mm)
Apply to	notebook
Refresh rate	60Hz
Touch function	No touch
Interface Type	30 pins LVDS (1 ch, 6-bit), connector
Supply voltage	3.3V (Typ.)
Maximum	Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C
For notebook B154EW08 V1 15.4 inch 1280*800 98PPI LCD Moudle

B154EW08 V1 LCD Screen Notice:

Part Number Clarification:

Please be aware that the part numbers listed in the titles are provided solely to assist you in locating a compatible screen for your current model number. While we strive to ensure compatibility, it is not guaranteed that you will receive the exact part number as indicated in the listing title. Rest assured, we will ship a 100% compatible item equivalent to the original part number. Manufacturers frequently update and modify part numbers over time, and certain part numbers may no longer be available.

Illustrative Purposes Only:

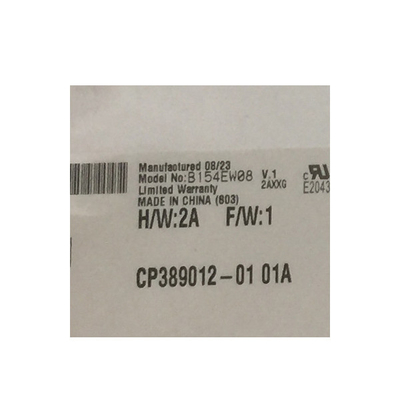

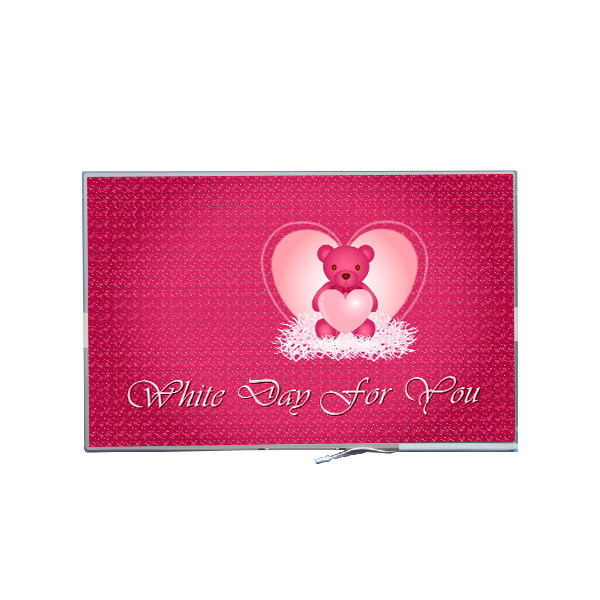

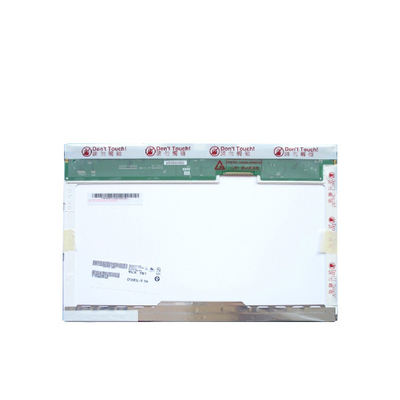

Additionally, the pictures included in the listing serve purely for illustrative purposes, intended to showcase the connector's position and the fixing points. These images are meant to provide guidance and clarity regarding the product, but the actual item shipped may vary slightly in appearance.

B154EW08 V1 LCD Panel Shipping and Package :

For notebook B154EW08 V1 15.4 inch 1280*800 98PPI LCD Moudle 0

B154EW08 V1 LCD Screen International Shipping:

Global Shipping Services:

We proudly offer worldwide shipping services. For international customers seeking assistance prior to placing an order, please reach out to us through our information system.

Express Delivery Options:

Should you require expedited delivery, we extend express delivery services to numerous countries and regions. Simply select "Express" during the checkout process. In case the shipping fee isn't automatically displayed, kindly contact us through our information system for prompt assistance.

Australia, New Zealand, and the United States:

Standard Transit Time: 5-12 working days

Express Transit Time: 1-3 working days

Should your item not arrive within the anticipated shipping duration, please promptly get in touch with us via our information system.

Other Global Regions:

Standard Transit Time: 8-15 working days

Rest assured, we're dedicated to ensuring the timely delivery of your orders. However, for regions beyond Australia, New Zealand, and the United States, we acknowledge the following transit times:

Unreceived Shipments:

While we diligently process all orders in accordance with our commitments, certain circumstances beyond our control, such as delays attributable to express delivery services, international local postal systems, or customs inspections, may occur. In such instances, we regretfully cannot assume responsibility for any resulting delays. We appreciate your understanding and patience in such matters.

B154EW08 V1 Warranty/Return :

If you have any concerns, we offer a 30 day peace of mind guarantee (refund or exchange).

Defective or damaged items during transportation must be reported within 48 hours of receipt. Contact us through the information system Simply return the purchased item within 30 days of receiving its original (resale) status and packaging for a refund (less postage and packaging) or exchange.

Any defective or incorrect items must be returned within 30 days of receipt. In any case, customers are responsible for paying the return shipping fee. It is recommended that customers obtain proof of postage when they have not received items in rare circumstances.

We offer a three-month warranty for most products, covering only manufacturing defects. This warranty does not cover any damage/improper operation caused by the user.

If the product we provide malfunctions due to manufacturing defects, please contact us through the information system to obtain RMA (Return Authorization) and return instructions. If you return the item, you must return it together with the RMA number and invoice copy, and the reason for the return must be stated.

We can only refund or replace the product when we actually receive the return. All returns will be processed within 5 working days of receipt in our office.

B154EW08 V1 LCD Panel FAQ :

Q: If I place order now,when will you ship the goods of B154EW08 V1?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can you give me a discount if I need a large quantity of B154EW08 V1?

A: Of course!If you make a large order, we will give you a discount.

Q: How long will I receive my goods B154EW08 V1?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How to make payment of B154EW08 V1?

A: We accept T/T , Paypal , western union .
