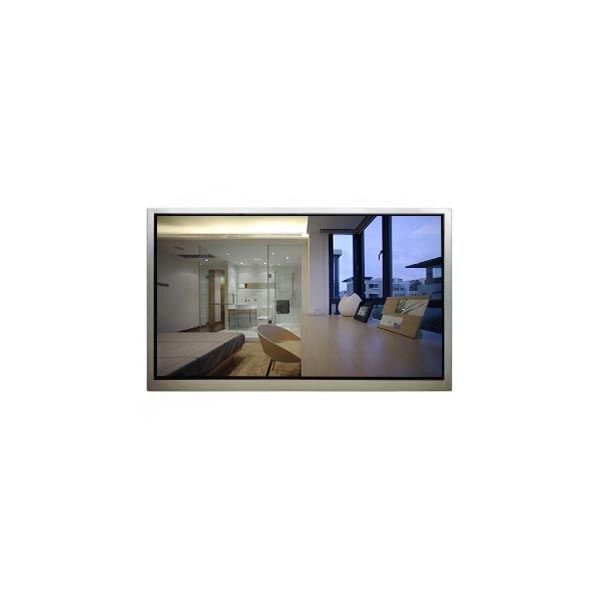

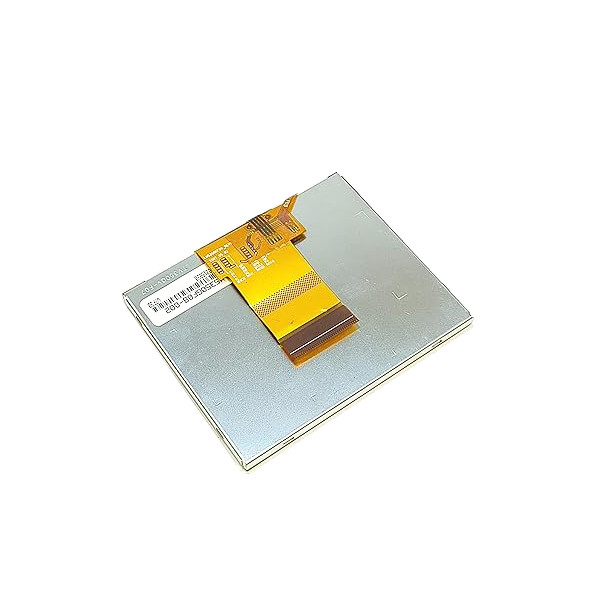

CM520B1-001 5.2 inch 1080*1920 LCD Touch Panel Display
Product Details:
| Place of Origin: | China |
| Brand Name: | CSOT |
| Model Number: | CM520B1-001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | CM520B1-001 | Diagonal Size: | 5.2" |
|---|---|---|---|
| Resolution: | 1080(RGB)×1920, FHD 423PPI | Active Area: | 64.8(W)×115.2(H) Mm |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | Luminance: | 0 Cd/m² |
| Apply To: | Mobile Phone | Driver IC List: | Suggest COG TD4310, TD4322 |
| Environment: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C | Outline (mm): | 66×120.5×0.46 (H×V×D) |
Product Description
CM520B1-001 5.2 inch 1080*1920 LCD Touch Panel Display
CM520B1-001 LCD Panel Product details :
| Brand | CSOT |
| Model P/N | CM520B1-001 |
| Diagonal Size | 5.2" |
| Panel Type | LTPS TFT-LCD, CELL, Full Cell |
| Resolution | 1080(RGB)×1920, FHD 423PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 64.8(W)×115.2(H) mm |
| Bezel Opening | - |
| Outline (mm) | 66×120.5×0.46 (H×V×D) |
| Treatment | With Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 35 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Glass Thickness | - |
| Transmissivity | 4.5% (Typ.)(with Polarizer) |
| Color Depth | 16.7M 80%NTSC |
| Backlight | No B/L |
| Mass | TBD |
| Used for | Mobile Phone |
| Refresh Rate | - |
| Touchscreen | In-Cell Touch |
| Driver IC list | Suggest COG TD4310, TD4322 |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
CM520B1-001 LCD Screen Acceptable returns and exchanges:
✅ Quality issue (7-30 day no reason return or exchange, depending on product category)
Bright spots, dark spots, and bad spots appear on the screen (exceeding industry standards, such as ISO 9241-307 Class II)
Display abnormalities (flicker, color cast, uneven backlight, residual image, etc.)
Physical damage (non-human damage, such as internal cable breakage, panel fragmentation)
Interface malfunction (HDMI/eDP/LVDS interface cannot recognize signals properly)
✅ Transportation damage (feedback within 48 hours after receipt)
Severe damage to the outer packaging (such as cardboard box rupture, obvious compression deformation)
Screen breakage and leakage (requires unboxing inspection video)
✅ Wrong/missed delivery (feedback within 7 days)
The received model, size, and interface do not match the order
Missing accessories (such as screws, cables, driver boards, etc.)
CM520B1-001 LCD Screen About payment:
PayPal is our preferred payment method, as it is the fastest, simplest, and most secure way to pay for goods or services online. PayPal provides protection for buyers and sellers in case of any issues. In addition, we also support T/T, Payment methods such as Western Union.
Order verification: Once you place an order, we will promptly review your purchase details to ensure everything is correct and there are no discrepancies.
The price does not include tariffs. Different countries may require buyers to clear customs and pay tariffs.
CM520B1-001 LCD Panel Shipping and Package :
CM520B1-001 LCD Screen FEEDBACK:
CM520B1-001 LCD Screen FAQ:
Q: Can you test the lcd panel CM520B1-001 before shipping ?
A: Yes , of course , don't worry , our item was tested ok before shipping .
Q: Do you accept the sample order CM520B1-001 ?
A: Yes , sample order is welcome.
Q: Can you declared low value of my order CM520B1-001 ?
A: Yes , we can , you can tell us before shipping .
Q: How long the warranty of lcd CM520B1-001 ?
A: 90 days .
