LCD Screen Display Panel

15.6 inch 40 pins 60Hz a-Si TFT-LCD B156XTN02.2 Screen Panel

All Category

Floor Standing Digital Signage

15.6 inch 40 pins 60Hz a-Si TFT-LCD B156XTN02.2 Screen Panel

Brand Name:	AUO
Model Number:	B156XTN02.2
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

B156XTN02.2

Resolution:

1366(RGB)×768, WXGA, 100PPI

Active Area:

344.232 × 193.536 Mm (H×V)

Outline Size:

359.3 × 209.5 × 5.5 Mm (H×V×D)

Contrast Ratio:

500:1 (Typ.) (TM)

Viewing Angle:

45/45/15/35 (Typ.) (CR≥10)

Supply Ability:

100000 Unit/Units per Month

Product Description

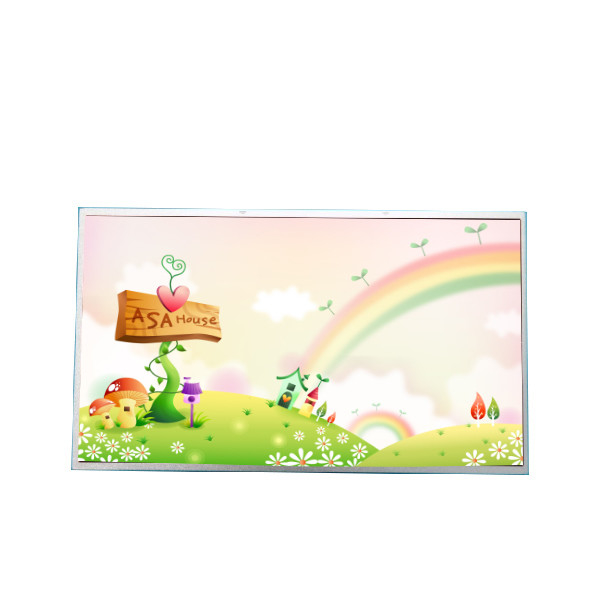

15.6 inch 40 pins 60Hz a-Si TFT-LCD B156XTN02.2 Screen Panel

B156XTN02.2 LCD Panel Product details :

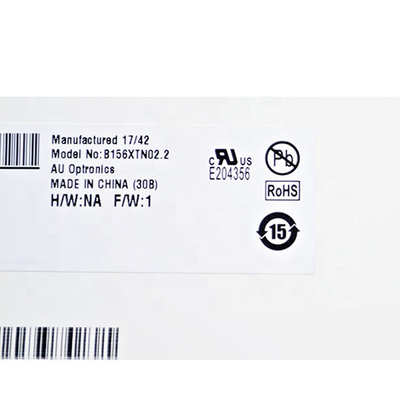

AUO LCD SCREEN B156XTN02.2
Panel Brand	AUO
Panel Model	B156XTN02.2
Panel Size	15.6"
Panel Type	a-Si TFT-LCD , LCM
Resolution	1366(RGB)×768 WXGA 100PPI
Pixel Format	RGB vertical bars
Display Area	344.232 × 193.536 mm (H×V)
Bezel Opening	350.4 × 196.94 mm (H×V)
Outline Size	359.3 × 209.5 × 5.5 mm (H×V×D)
Surface	Mirror surface (Haze 0%), Hard coating (3H), reflectivity 4.3% (Typ.)
Brightness	200 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
Viewing Angle	45/45/15/35 (Typ.) (CR≥10)
Display Mode	TN, Normally White, Transmissive
Response Time	8 (Typ.)(Tr+Td) ms
Display Colors	262K , 60% NTSC
Lamp Type	WLED , 15K hours, with LED driver
Frequency	60Hz
Touch Screen	Without
Signal Interface	LVDS (1 ch, 6-bit) , terminal, 40 pins
Input Voltage	3.3V (Typ.)
Environment	Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C
15.6 inch 40 pins 60Hz a-Si TFT-LCD B156XTN02.2 Screen Panel

B156XTN02.2 LCD Screen Notice:

Part Number Clarification:

Please be aware that the part numbers listed in the titles are provided solely to assist you in locating a compatible screen for your current model number. While we strive to ensure compatibility, it is not guaranteed that you will receive the exact part number as indicated in the listing title. Rest assured, we will ship a 100% compatible item equivalent to the original part number. Manufacturers frequently update and modify part numbers over time, and certain part numbers may no longer be available.

Illustrative Purposes Only:

Additionally, the pictures included in the listing serve purely for illustrative purposes, intended to showcase the connector's position and the fixing points. These images are meant to provide guidance and clarity regarding the product, but the actual item shipped may vary slightly in appearance.

B156XTN02.2 LCD Panel Shipping and Package :

15.6 inch 40 pins 60Hz a-Si TFT-LCD B156XTN02.2 Screen Panel 0

B156XTN02.2 LCD Screen International Shipping:

Global Shipping Services:

We proudly offer worldwide shipping services. For international customers seeking assistance prior to placing an order, please reach out to us through our information system.

Express Delivery Options:

Should you require expedited delivery, we extend express delivery services to numerous countries and regions. Simply select "Express" during the checkout process. In case the shipping fee isn't automatically displayed, kindly contact us through our information system for prompt assistance.

Australia, New Zealand, and the United States:

Standard Transit Time: 5-12 working days

Express Transit Time: 1-3 working days

Should your item not arrive within the anticipated shipping duration, please promptly get in touch with us via our information system.

Other Global Regions:

Standard Transit Time: 8-15 working days

Rest assured, we're dedicated to ensuring the timely delivery of your orders. However, for regions beyond Australia, New Zealand, and the United States, we acknowledge the following transit times:

Unreceived Shipments:

While we diligently process all orders in accordance with our commitments, certain circumstances beyond our control, such as delays attributable to express delivery services, international local postal systems, or customs inspections, may occur. In such instances, we regretfully cannot assume responsibility for any resulting delays. We appreciate your understanding and patience in such matters.

B156XTN02.2 Warranty/Return :

If you have any concerns, we offer a 30 day peace of mind guarantee (refund or exchange).

Defective or damaged items during transportation must be reported within 48 hours of receipt. Contact us through the information system Simply return the purchased item within 30 days of receiving its original (resale) status and packaging for a refund (less postage and packaging) or exchange.

Any defective or incorrect items must be returned within 30 days of receipt. In any case, customers are responsible for paying the return shipping fee. It is recommended that customers obtain proof of postage when they have not received items in rare circumstances.

We offer a three-month warranty for most products, covering only manufacturing defects. This warranty does not cover any damage/improper operation caused by the user.

If the product we provide malfunctions due to manufacturing defects, please contact us through the information system to obtain RMA (Return Authorization) and return instructions. If you return the item, you must return it together with the RMA number and invoice copy, and the reason for the return must be stated.

We can only refund or replace the product when we actually receive the return. All returns will be processed within 5 working days of receipt in our office.

B156XTN02.2 LCD Panel FAQ :

Q: How long will I receive my goods B156XTN02.2 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q:If I place order now,when will you ship the goods of B156XTN02.2 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q:Do you accept sample orders of B156XTN02.2 ?

A:Of course!sample order is welcome !

Q: How long is the warranty ?

A: We offer 90days warranty .
