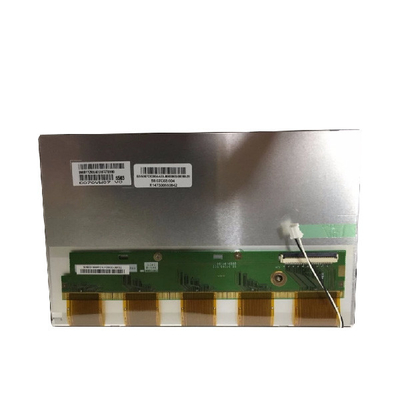

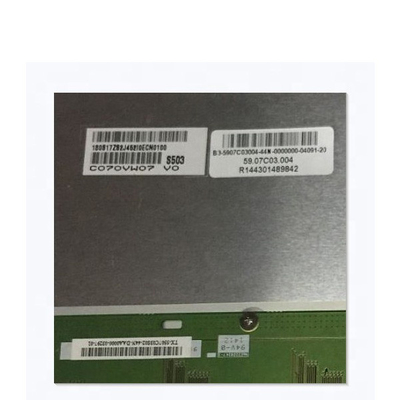

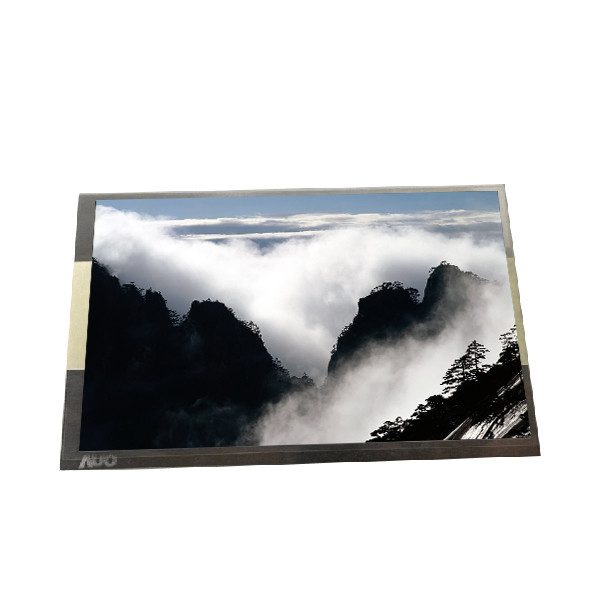

Supply 7.0 inch C070VW07 V0 LCD Display Panel for AUO
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | C070VW07 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | C070VW07 V0 | Diagonal Size: | 7.0'' |
|---|---|---|---|
| Viewing Angle: | 60/60/40/60 (Typ.)(CR≥10) | Display Area: | 152.4(Horizontal)×91.44(Vertical) Mm |
| Responding Speed: | 6/10 (Typ.)(Tr/Td) Ms | Resolution: | 800×480(RGB), WVGA, 133PPI |
| Refresh Rate: | 60Hz | Display Brightness: | 400 Cd/m² (Typ.) |
Product Description
Supply 7.0 inch C070VW07 V0 LCD Display Panel for AUO
C070VW07 V0 LCD Panel Product details :
| AUO LCD SCREEN C070VW07 V0 | |
|---|---|
| manufacturer | AUO |
| Model Name | C070VW07 V0 |
| Diagonal size | 7.0 inches |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 800×480(RGB), WVGA, 133PPI |
| Pixel arrangement | RGB vertical bar |
| Display size | 152.4(Horizontal)×91.44(Vertical) mm |
| physical dimension | 165(horizontal)×104(vertical) ×9.15(thick) mm |
| Visual size | 154.6(Horizontal)×93.64(Vertical) mm |
| Surface treatment | Matte |
| Display brightness | 400 cd/m² (Typ.) |
| Contrast | 500:1 (Typ.) (transmission) |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 60/60/40/60 (Typ.)(CR≥10) |
| responding | 6/10 (Typ.)(Tr/Td) ms |
| Backlight type | WLED, 10K hours, no driver |
| Refresh rate | 60Hz |
| Interface Type | 50 pins Parallel RGB (1 ch, 6-bit), Connector |
| Supply voltage | 3.3/9.8/19/-9V (Typ.)(VCC/AVDD/VGH/VHL) |
| Application Environment | Working temperature: -30 ~ 85 °C; Storage temperature: -40 ~ 85 °C; Vibration resistance: 2.9G (28.4 m/s²) |
| Supply 7.0 inch C070VW07 V0 LCD Display Panel for AUO | |
