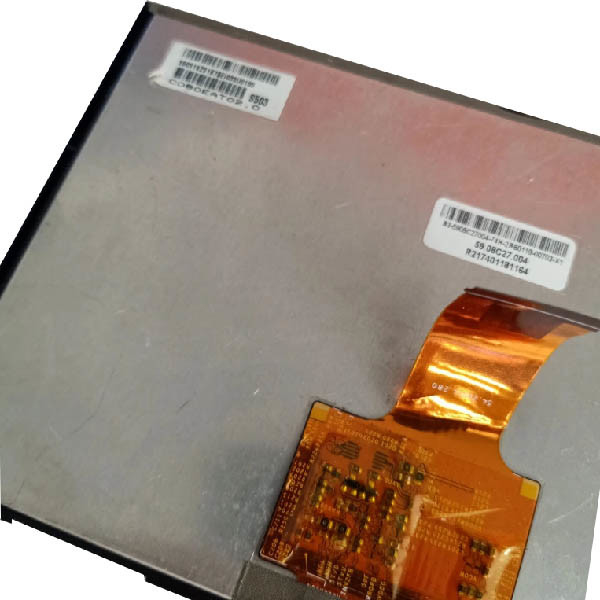

Size 8.0 inch 184PPI TFT-LCD C080EAT02.1 40 pins LCD Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | C080EAT02.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | C080EAT02.1 | Diagonal Size: | 8.0'' |
|---|---|---|---|
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | Display Area: | 176.64 × 99.36 Mm (H×V) |
| Contrast Ratio: | 1000: 1 (Typ.) [Transmission] | Resolution: | 1280(RGB)×720[WXGA] 184PPI |
Product Description
Size 8.0 inch 184PPI TFT-LCD C080EAT02.1 40 pins LCD Panel
C080EAT02.1 LCD Panel Product details :
| AUO LCD Screen C080EAT02.1 | |
|---|---|
| Panel Brand | AUO |
| Panel Model | C080EAT02.1 |
| screen size | 8.0inches |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 1280(RGB)×720[WXGA] 184PPI |
| Pixel configuration | RGB vertical bars |
| Display size | 176.64 × 99.36 mm (H×V) |
| physical dimension | 253.2 × 136.76 × 34.7 mm (H×V×D) |
| surface | Hard coating (2H) |
| Brightness (cd/m²) | 600 (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) [Transmission] |
| Viewing Angle | 80/80/80/80 (Typ.) (CR≥10) |
| responding speed | 15/15 (Max.)(Tr/Td) ms |
| display mode | AHVA, Normally Black, Transmissive |
| Number of colors | 16.7M |
| Backlight type | 8S3P WLED , 10K hours, no driver |
| screen weight | 357±53g |
| signal system | LVDS (1 ch, 8-bit) , FPC , 40 pins |
| Supply voltage | 3.3/3.3V (Typ.)(VDD/AVDD) |
| maximum rating | Storage temperature: -40 ~ 95 °C Operating temperature: -30 ~ 85 °C ; Vibration resistance: 2.9G (28.4 m/s²) |
| Size 8.0 inch 184PPI TFT-LCD C080EAT02.1 40 pins LCD Panel | |
