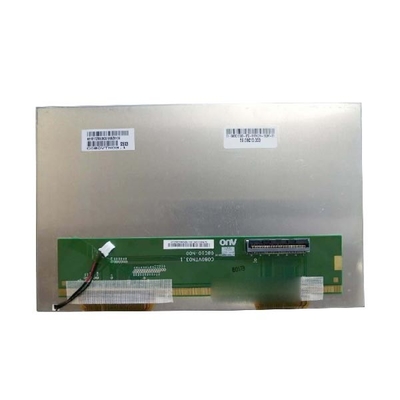

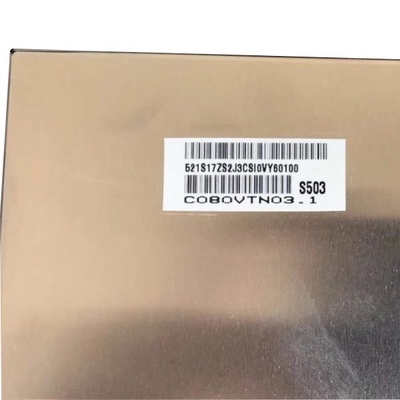

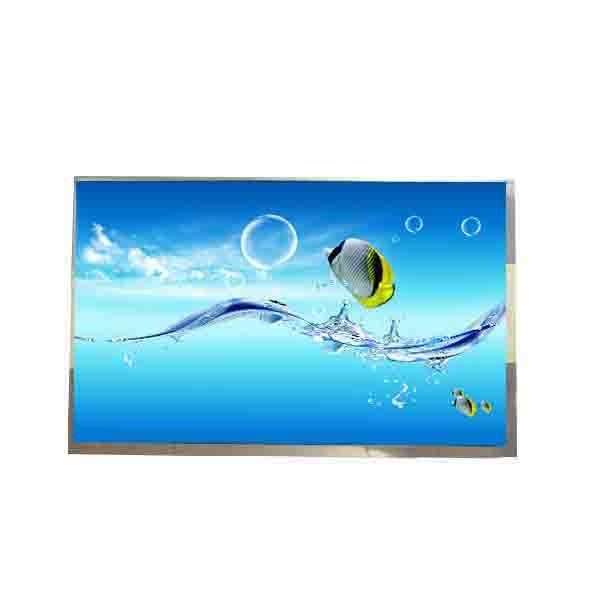

8.0 inch 800*480 TFT Screen C080VTN03.1 LCD Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | C080VTN03.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | C080VTN03.1 | Diagonal Size: | 8.0'' |
|---|---|---|---|
| Viewing Angle: | 60/60/40/60 (Typ.)(CR≥10) | Display Area: | 175.2 × 105.12 Mm (H×V) |
| Contrast Ratio: | 600:1 (Typ.) (transmission) | Resolution: | 800(RGB)×480 [WVGA] 115PPI |
Product Description
8.0 inch 800*480 TFT Screen C080VTN03.1 LCD Panel
C080VTN03.1 LCD Panel Product details :
| AUO LCD SCREEN C080VTN03.1 | |
|---|---|
| manufacturer | AUO |
| Model Name | C080VTN03.1 |
| Diagonal size | 8.0 inch |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 800(RGB)×480 [WVGA] 115PPI |
| Pixel arrangement | RGB vertical bar |
| Display size | 175.2(Horizontal)×105.12(Vertical) mm |
| physical dimension | 186.5(Horizontal)×117.12(Vertical) ×5.6(Thick) mm |
| Visual size | 178.1(Horizontal)×108.47(Vertical) mm |
| Surface treatment | Matte, Hard coating (3H) |
| Display brightness | 500 cd/m² (Typ.) |
| Contrast | 600:1 (Typ.) (transmission) |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 60/60/40/60 (Typ.)(CR≥10) |
| responding | 15/20 (Typ.)(Tr/Td) ms |
| Backlight type | WLED, 10K hours, no driver |
| Refresh rate | 60Hz |
| Interface Type | 60 pins Parallel RGB (1 ch, 6-bit), Connector |
| Supply voltage | 3.3/11.0/20.0/-8.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Application Environment | Working temperature: -30 ~ 85 °C; Storage temperature: -40 ~ 95 °C; Vibration resistance: 2.9G (28.4 m/s²) |
| 8.0 inch 800*480 TFT Screen C080VTN03.1 LCD Panel | |
