LCD Screen Display Panel

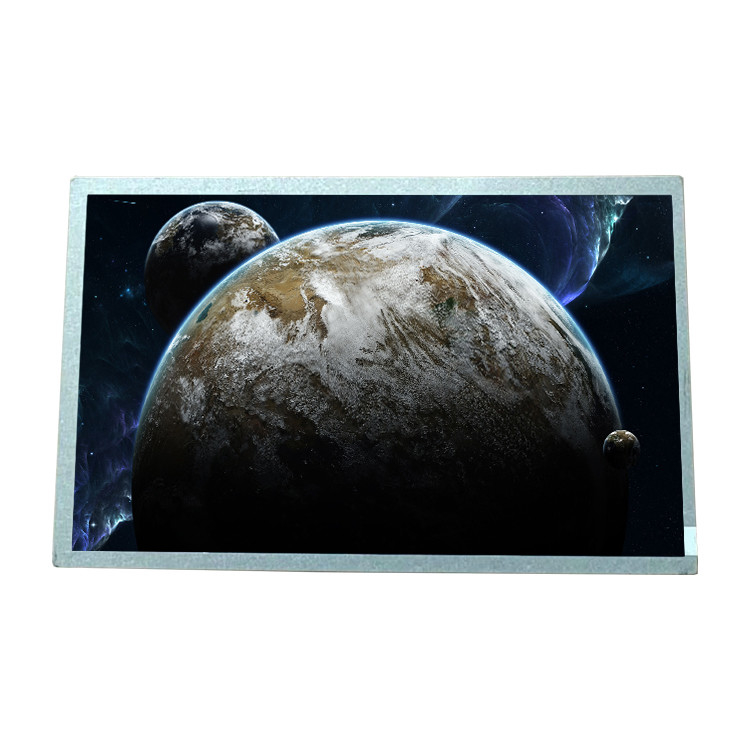

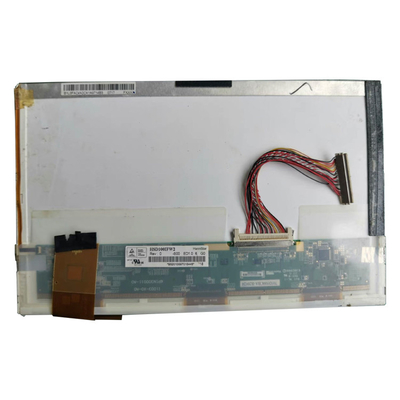

HSD100IFW2-B00 HannStar 10.1 inch lcd panel 1024*600 lcd screen

All Category

Floor Standing Digital Signage

HSD100IFW2-B00 HannStar 10.1 inch lcd panel 1024*600 lcd screen

Brand Name:	HannStar
Model Number:	HSD100IFW2-B00
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HSD100IFW2-B00

Resolution:

1024(RGB)×600, WSVGA 118PPI

Active Area:

220.416(W)×129.15(H) Mm

Bezel Opening:

223.42(W)×132.15(H) Mm

Luminance:

180 Cd/m² (Typ.)

Contrast Ratio:

500:1 (Typ.) (TM)

Response Time:

10 (Typ.)(Tr+Td)

Designed For:

Netbook PC / Digital Photo Frame

Interface Type:

LVDS (1 Ch, 6-bit) , 30 Pins Connector

Supply Ability:

100000 Unit/Units per Month

Product Description

HSD100IFW2-B00 HannStar 10.1 inch lcd panel 1024*600 lcd screen

HSD100IFW2-B00 LCD Panel Product details :

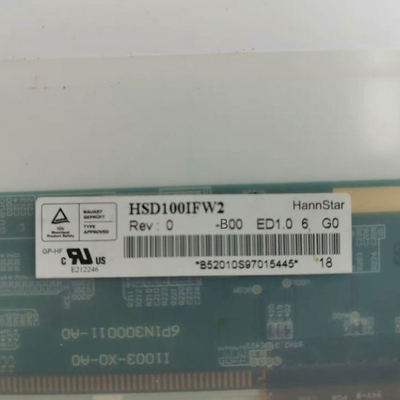

HannStar LCD Screen HSD100IFW2-B00
Panel Brand	HannStar
Model P/N	HSD100IFW2-B00
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×600, WSVGA 118PPI
Pixel Format	RGB Vertical Stripe
Active Area	220.416(W)×129.15(H) mm
Bezel Opening	223.42(W)×132.15(H) mm
Luminance	180 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	10 (Typ.)(Tr+Td)
Viewing Angle	70/70/50/60 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K
Light Source	WLED , With LED Driver
Designed For	Netbook PC / Digital Photo Frame
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 6-bit) , 30 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
HSD100IFW2-B00 HannStar 10.1 inch lcd panel 1024*600 lcd screen

Customer Service for HSD100IFW2-B00 LCD Screen:

We understand that compatibility is crucial when selecting replacement parts for your device. The HSD100IFW2-B00 LCD screen is utilized in various Netbook models, and we are committed to ensuring that our customers find the right fit for their specific requirements.

If you're uncertain whether the HSD100IFW2-B00 LCD screen will work with your Netbook model, we encourage you to reach out to us directly via the "Ask Seller a Question" feature. Our dedicated customer service team is readily available to assist you and provide personalized support.

When contacting us, please provide as much information as possible about your Netbook model, including its make, model number, and any other relevant specifications. This will enable us to offer tailored guidance and recommendations to ensure compatibility and satisfaction with your purchase.

Don't hesitate to reach out to us with any inquiries or concerns – we're here to ensure that you find the perfect solution for your Netbook's display needs with the HSD100IFW2-B00 LCD screen.

HSD100IFW2-B00 LCD Panel Shipping and Package : HSD100IFW2-B00 HannStar 10.1 inch lcd panel 1024*600 lcd screen 0

Estimated Delivery Time for HSD100IFW2-B00 LCD Screen:

We understand the importance of timely delivery and offer flexible shipping options to accommodate our customers' needs. The estimated delivery times for the HSD100IFW2-B00 LCD screen are as follows:

Economy: Estimated delivery within 15 to 50 days. This option provides cost-effective shipping for customers who prioritize savings and can wait for a longer delivery period.

Standard: Estimated delivery within 10 to 35 days. Our standard shipping option strikes a balance between affordability and delivery speed, catering to customers who seek a reasonably prompt delivery without incurring high shipping costs.

Expedited: Estimated delivery within 4 to 7 days. For customers requiring urgent delivery, our expedited shipping option ensures swift transportation and prioritized handling to deliver the HSD100IFW2-B00 LCD screen within the shortest possible timeframe.

We strive to provide accurate delivery estimates and ensure that orders reach our customers within the specified timeframes. However, please note that actual delivery times may vary depending on factors such as destination, customs clearance processes, and logistical considerations beyond our control.

Rest assured, we are committed to delivering your HSD100IFW2-B00 LCD screen promptly and efficiently, regardless of the shipping option selected.

Warranty Details for HSD100IFW2-B00 LCD Screen:

We offer a comprehensive 1-YEAR WARRANTY for all brand new HSD100IFW2-B00 LCD screens. This warranty ensures peace of mind for our customers, reflecting our commitment to quality and customer satisfaction. In the unlikely event of any quality issues arising within the warranty period, customers are entitled to request a replacement unit.

Our warranty policy includes a provision for expedited resolution within 7 days of the product's receipt. If a defect or quality problem is identified within this timeframe, customers are encouraged to promptly notify us. Upon verification of the issue, customers can initiate the replacement process.

To facilitate the replacement process, customers are required to return the defective product to us. However, we understand the inconvenience this may cause and therefore cover the return shipping costs. Our aim is to minimize any inconvenience for our valued customers and ensure a seamless warranty experience.

At our company, customer satisfaction is paramount, and we strive to uphold the highest standards of product quality and service excellence. Our warranty reflects our confidence in the durability and performance of our HSD100IFW2-B00 LCD screens, providing customers with assurance and support throughout their ownership experience.

HSD100IFW2-B00 LCD Panel FAQ :

Q: How can I trace my order of HSD100IFW2-B00 ?

A: we will give you tracking number then you can trace your order from website.

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can you give me a discount if I need a large quantity of HSD100IFW2-B00 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can I pay my order of HSD100IFW2-B00 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
