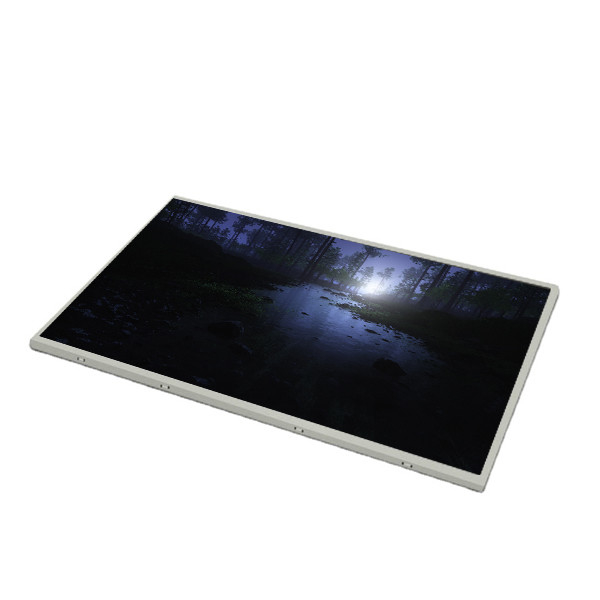

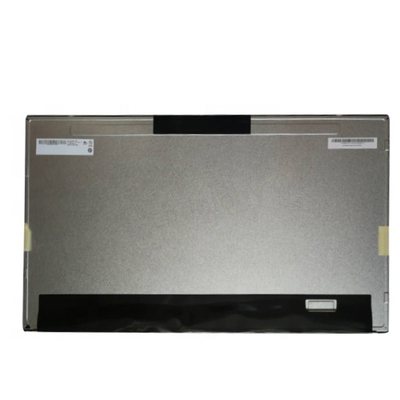

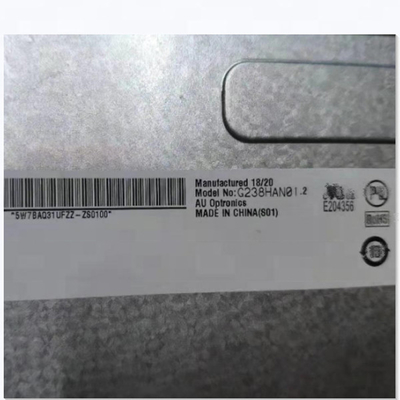

Supplying G238HAN01.2 23.8 inch Medical Imaging LCD Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G238HAN01.2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G238HAN01.2 | Resolution: | 1920(RGB)×1080 (FHD) 95PPI |
|---|---|---|---|
| Active Area: | 527.04(W)×296.46(H) Mm | Outline Dim.: | 543(W)×317.4(H)×11.65(D) Mm |
| Brightness: | 400 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (Transmission) |
| High Light: | Medical Imaging LCD Panel,23.8 inch LCD Panel,G238HAN01.2 LCD Panel |
||
Product Description
Supplying G238HAN01.2 23.8 inch Medical Imaging LCD Panel
G238HAN01.2 LCD Panel Product details :
| AUO LCD SCREEN G238HAN01.2 | |
|---|---|
| Panel Brand | AUO |
| Panel Model | G238HAN01.2 |
| Panel Size | 23.8" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080 (FHD) 95PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 527.04(W)×296.46(H) mm |
| Bezel Opening | 530.2(W)×299.6(H) mm |
| Outline Size | 543(W)×317.4(H) ×11.65(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 14 (Typ.)(G to G) |
| Display Colors | 16.7M 75% NTSC |
| Lamp Type | 18S4P WLED , 30K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 2.30Kgs (Typ.) |
| Application | Industrial Medical Imaging |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Storage Temp.: -20 ~ 50 °C Operating Temp.: 0 ~ 60 °C |
| Supplying G238HAN01.2 23.8 inch Medical Imaging LCD Panel | |
G238HAN01.2 LCD Module Reminder:
Product Information:
While product information is sourced from the internet, we assure you that our pictures are genuine representations of the product. We ship your order exactly as depicted in our images. To avoid any inconvenience, please compare our pictures with your desired product before making a purchase. Please note that return postal costs for an incorrect purchase are at the buyer's expense.
Order Processing Time:
Your order will be processed and shipped out within 2-7 working days from the date of purchase.
Arrival Time:
The estimated arrival time for your order is between 30-60 days, or even longer, depending on the postal service in your country. If you haven't received your product within 60 days, we kindly ask for your patience and suggest waiting a few more days.
Shipping Method:
If you have chosen the shipping option "China Post Ordinary Small Packet Plus," please be aware that this method does not provide tracking outside of China. We appreciate your understanding and patience in waiting for your package to arrive. Thank you for your cooperation.
G238HAN01.2 LCD Panel Shipping and Package :
G238HAN01.2 LCD Module Return Policy:
Return Conditions:
Returned products must be in their original condition, including the box, packaging, and all other accessories.
Returns that result from customer error will be subject to an actual shipping fee deduction from the refund.
Refund or Replacement:
Upon receipt of the returned item, we will inspect it to ensure it meets our return conditions.
Depending on the circumstances, we will offer a partial or full refund or a replacement at our cost.
Contact Us:
To initiate a return or if you have any questions regarding the return process, please contact us at [sales@yongs-hk.com]. Our dedicated customer service team will be happy to assist you.
Please note that shipping fees and YONGS (Your Own Negligence Goods Shipping) charges are non-refundable.
G238HAN01.2 LCD Panel FAQ :
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can You declare my order of G238HAN01.2 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of G238HAN01.2 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of G238HAN01.2 ?
A: Of course!If you make a large order, we will give you a discount.
G238HAN01.2 LCD Module Contact Us:
We are dedicated to providing exceptional customer service. If you have any questions or concerns regarding the G238HAN01.2 LCD Module, please do not hesitate to reach out to us. Our team is committed to promptly addressing all inquiries and providing the assistance you need.
You can email us at [sales@yongs-hk.com]. We strive to respond to all messages within 24 hours. However, please understand that there may be a delay in response during non-business hours.
Your satisfaction is our priority, and we look forward to assisting you with any issues or queries you may have. Thank you for choosing our products.
