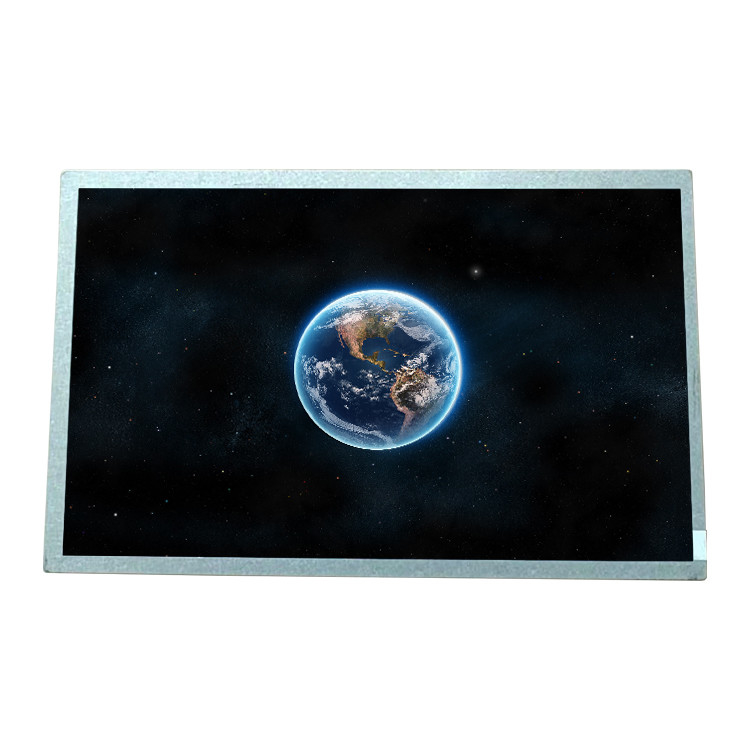

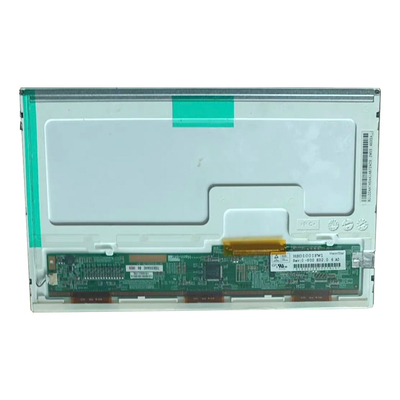

10.1 Inch 1024*600 LCD Display Screen Panel HSD100IFW1-F00
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD100IFW1-F00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD100IFW1-F00 | Resolution: | 1024(RGB)×600, WSVGA 118PPI |
|---|---|---|---|
| Active Area: | 220.416(W)×129.15(H) Mm | Bezel Opening: | 223.4(W)×132.15(H) Mm |
| Outline Dim.: | 235(H)×145.8(V) ×5.8(D) Mm | Treatment: | Glare (Haze 0%), Hard Coating (3H) |
| Response Time: | 5/20 (Typ.)(Tr/Td) | Designed For: | Netbook PC / Digital Photo Frame / Portable DVD Player |
| Interface Type: | LVDS (1 Ch, 6-bit) , 30 Pins Connector | ||
| High Light: | HSD100IFW1-F00 LCD Display Screen Panel,1024*600 LCD Display Screen Panel |
||
Product Description
10.1 inch 1024*600 lcd display screen panel HSD100IFW1-F00
HSD100IFW1-F00 LCD Panel Product details :
| HannStar LCD Screen HSD100IFW1-F00 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD100IFW1-F00 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA 118PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 220.416(W)×129.15(H) mm |
| Bezel Opening | 223.4(W)×132.15(H) mm |
| Outline Dim. | 235(H)×145.8(V) ×5.8(D) mm |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 5/20 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K |
| Light Source | WLED , With LED Driver |
| Designed For | Netbook PC / Digital Photo Frame / Portable DVD Player |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6-bit) , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| 10.1 inch 1024*600 lcd display screen panel HSD100IFW1-F00 | |
HSD100IFW1-F00 LCD Screen Features:
Waterproof and Dustproof Design: Built to withstand challenging environments, the HSD100IFW1-F00 features a waterproof and dustproof construction. Its smooth surface enhances usability and ensures protection against moisture and debris.
High Accuracy and Precise Contacts: Experience exceptional accuracy with the HSD100IFW1-F00. Its design eliminates offset phenomena, ensuring precise and reliable touch contacts with every interaction.
System Integration with Sensitivity Point: Seamlessly integrate the HSD100IFW1-F00 LCD Screen into your system with its sensitivity point technology. This feature enhances responsiveness and ensures smooth operation within your setup.
Long Lifespan for Harsh Environments: Designed to endure harsh operating conditions, the HSD100IFW1-F00 boasts a long lifespan. It can withstand tens of thousands of hits on the panel, making it ideal for demanding environments where durability is paramount.
Whether you require a robust touchscreen solution for industrial applications, outdoor kiosks, or medical devices, the HSD100IFW1-F00 LCD Screen delivers outstanding performance and reliability. Experience peace of mind knowing that your touchscreen interface is built to withstand the rigors of daily use, ensuring uninterrupted operation and longevity.
Upgrade to the HSD100IFW1-F00 LCD Screen and enjoy superior durability, precision, and functionality for your touchscreen applications.
