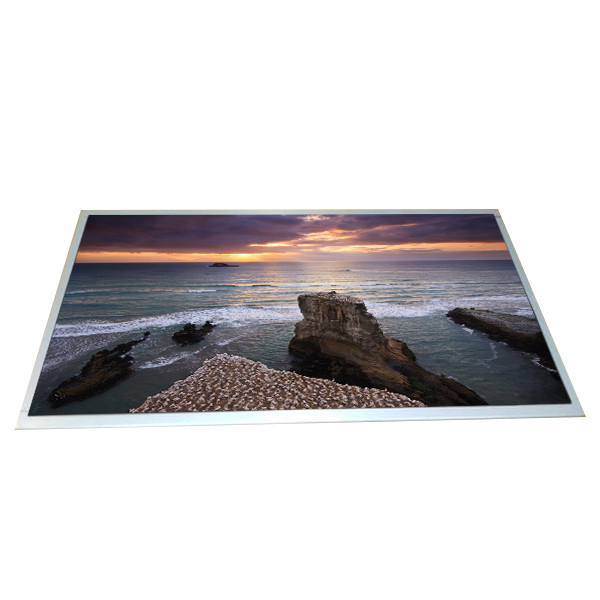

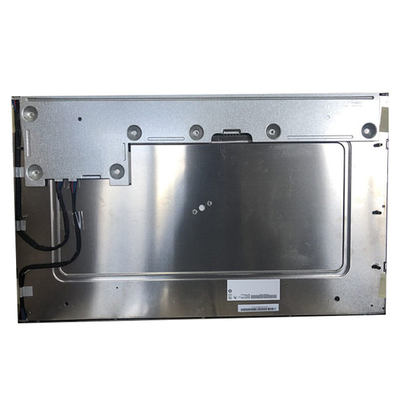

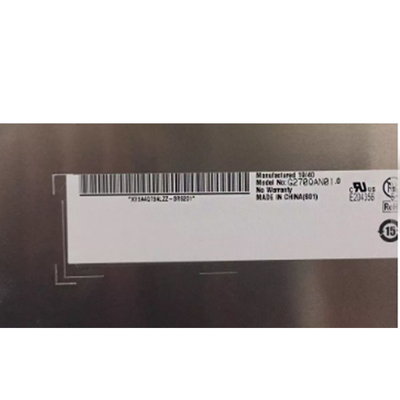

27.0 inch G270QAN01.0 TFT Touch LCD Panel with Industry
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G270QAN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G270QAN01.0 | Resolution: | 2560(RGB)×1440 Quad-HD 108PPI |
|---|---|---|---|
| Active Area: | 596.16(W)×335.34(H) Mm | Outline Dim.: | 630(H)×368.2(V)×15.6(D) Mm |
| Brightness: | 350 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (Transmission) |
| High Light: | Industry TFT Touch LCD Panel,27.0 inch TFT Touch LCD Panel,G270QAN01.0 |
||
Product Description
27.0 inch G270QAN01.0 TFT Touch LCD Panel with Industry
G270QAN01.0 LCD Panel Product details :
| AUO LCD SCREEN G270QAN01.0 | |
|---|---|
| Panel Brand | AUO |
| Panel Model | G270QAN01.0 |
| Panel Size | 27.0 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 2560(RGB)×1440 Quad-HD 108PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 596.74(H)×335.66(V) mm |
| Bezel Opening | 601.6(H)×340.15(V) mm |
| Outline Size | 630(H)×368.2(V)×15.6(D) mm |
| Surface | Matte |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (Transmission) |
| Viewing Angle | 89/89/89/89 (Typ.) (CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Response Time | 8/8 (Typ.)(Tr/Td) ms |
| Display Colors | 16.7M , 100% Adobe RGB |
| Lamp Type | WLED [4 strings] , 30K hours, no driver |
| Frequency | 60Hz |
| Panel Weight | 3.15Kgs (Typ.) |
| Designed For | Industrial |
| Touch Panel | Touch Panel |
| Signal Interface | 92 pins LVDS (4 ch, 8-bit) , terminal |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| 27.0 inch G270QAN01.0 TFT Touch LCD Panel with Industry | |
