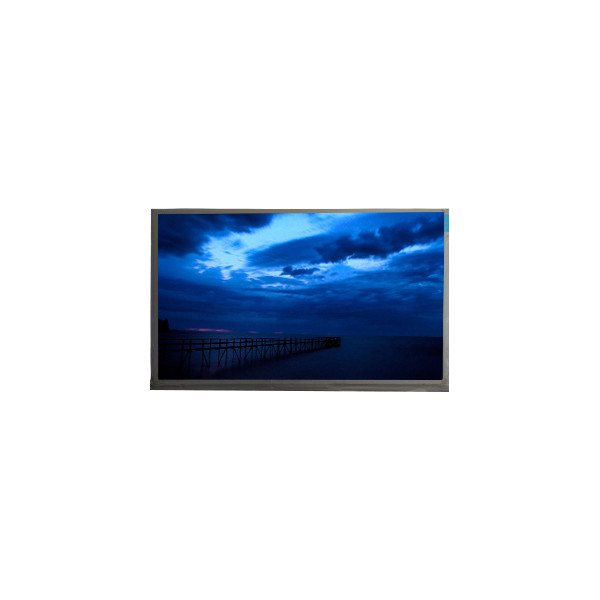

M315KCA-E7L 32.0 inch 2560*1440 165Hz TFT LCD Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | M315KCA-E7L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M315KCA-E7L | Resolution: | 2560(RGB)×1440, Quad-HD 93PPI |
|---|---|---|---|
| Screen Size: | 32.0" | Display Area: | 698.112(W)×392.688(H) Mm |
| Outline Size: | 710.3(H)×411.2(V)×14.4(D) Mm | Pixel Format: | RGB Vertical Stripe |
| Treatment: | Antiglare (Haze 25%), Hard Coating (3H) | Luminance: | 250 Cd/m² (Typ.) |
| Contrast Ratio: | 1000:1 (Typ.) (TM) | Designed For: | Desktop Monitor、Gaming |
| Highlight: | H245QBN02.0 TFT LCD Panel,240*400 TFT LCD Panel,H245QBN02.0 |
||
Product Description
M315KCA-E7L 32.0 inch 2560*1440 165Hz TFT LCD Panel
M315KCA-E7L LCD Panel Product details :
| Brand | Innolux |
| Model P/N | M315KCA-E7L |
| Diagonal Size | 32.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 2560(RGB)×1440, Quad-HD 93PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 698.112(W)×392.688(H) mm |
| Bezel Opening | - |
| Outline Dim. | 710.3(H)×411.2(V)×14.4(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 5 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | AAS, Normally Black, Transmissive |
| Support Color | 16.7M 92%DCI-P3 |
| Light Source | WLED, 30K hours, W/O Driver |
| Weight | 4.24/4.45Kgs (Typ./Max.) |
| Designed For | Desktop Monitor,Gaming |
| Frame Rate | 165Hz |
| Touch Panel | Without |
| Interface Type | eDP (4 Lanes) , HBR2 (5.4G/lane) , 51 pinsConnector |
| Power Supply | 12.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
Product M315KCA-E7LLCD Screen:
At our company, we take pride in offering excellent industrial LCD products. Occasionally, the images captured may not perfectly align with the product's logo due to upgrades or other factors. However, please rest assured that the product information, including electrical and mechanical properties, remains consistent. We apologize for any inconvenience caused by this discrepancy and appreciate your understanding.
Color Mismatch Disclaimer:
Please note that slight color deviations may occur in the LCD module due to various factors such as monitor color settings, lighting conditions, or background hues. While we strive to maintain color accuracy, we acknowledge that perceived differences may arise. If you believe that the item received does not match the expected color, we encourage you to reach out to us to discuss options for return or refund.
M315KCA-E7L LCD Panel Shipping and Package :
M315KCA-E7L LCD Screen Shipment:
Order Processing and Shipping:
Upon placing your order, kindly select your preferred shipping method and complete the payment, which includes the shipping fee. We endeavor to dispatch your items within 1-3 business days following the completion of your payment.
International Shipping Considerations:
Please be advised that we cannot guarantee specific delivery times for international shipments due to variations in customs clearing procedures across different countries. These differences may impact the speed at which your product undergoes inspection and clearance. We appreciate your patience and understanding in this regard.
Customs Fees and Duties:
It's important to note that buyers are responsible for any additional fees associated with customs clearance, including but not limited to customs fees, brokerage fees, duties, and taxes. In the event of refused shipments, buyers remain responsible for these charges.
Import Taxes:
Please be aware that the shipping cost does not cover any import taxes. Buyers are advised to acquaint themselves with their country's customs regulations and are responsible for any customs duties incurred as a result of the importation of our products.
M315KCA-E7L LCD Screen Returns Policy:
Return Period:
We offer a 15-day return window from the date of receipt of the items. Should you wish to return your purchase for any reason within this timeframe, we are happy to assist you with the process.
Condition of Returned Items:
To qualify for a refund, please ensure that the items are returned in their original condition. Any damage incurred to the items during the return transit may result in a deduction from the refund amount. We advise buyers to handle and package the items carefully to prevent damage during transportation.
Responsibility for Damaged or Lost Items:
In the event that returned items are damaged or lost during transit, the buyer assumes responsibility for such occurrences. We regret to inform you that a full refund will not be issued under these circumstances. We recommend that buyers file a claim with the logistic company to recover the costs associated with any damage or loss.
Shipping Fees for Returns:
Please note that the buyer is responsible for covering the shipping fees associated with returning the items. We kindly request that you arrange for the return shipment using a reliable and trackable shipping method.
M315KCA-E7L LCD Panel FAQ :
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: If I place order now,when will you ship the goods of M315KCA-E7L ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of M315KCA-E7L via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods M315KCA-E7L ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
