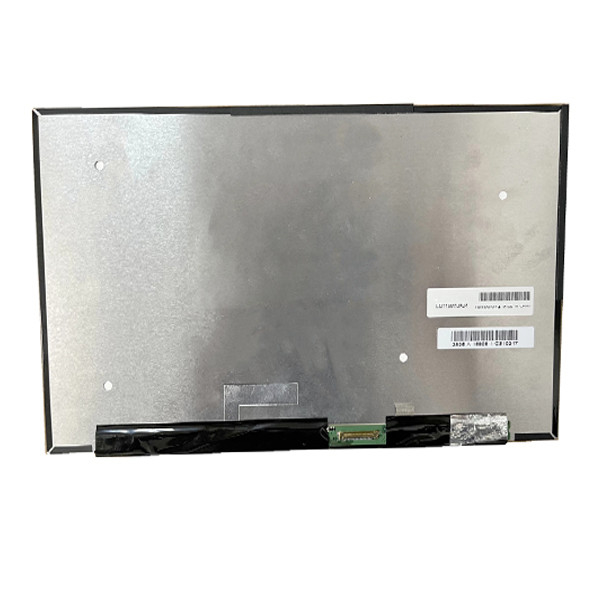

LQ116M1JX04 11.6 inch 1920*1080 LCD Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ116M1JX04 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ116M1JX04 | Diagonal Size: | 11.6" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080[FHD] 190PPI | Application: | Pad & Tablet |
| Display Size: | 256.32 × 144.18 Mm (H×V) | Physical Dimension: | 293.68 × 186.54 × 6 Mm (H×V×D) |
| Brightness: | 300 (Typ.) | Viewing Angle: | 89/89/89/89 (Typ.) (CR≥10) |
| Screen Weight: | 252.3g (Typ.) | Signal System: | EDP (2 Lanes) , EDP1.3 , HBR1 (2.7G/lane) , Terminal, 30 Pins |
| Maximum Rating: | Storage Temperature: -20 ~ 60 °C Operating Temperature: 0 ~ 50 °C | ||
Product Description
LQ116M1JX04 11.6 inch 1920*1080 LCD Screen Panel
LQ116M1JX04 LCD Panel Product details :
| Sharp LCD Screen LQ116M1JX04 | |
|---|---|
| Panel Brand | Sharp |
| Panel Model | LQ116M1JX04 |
| screen size | 11.6inches |
| Panel Type | Assembly , Oxide TFT-LCD |
| Resolution | 1920(RGB)×1080[FHD] 190PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 256.32 × 144.18 mm (H×V) |
| physical dimension | 293.68 × 186.54 × 6 mm (H×V×D) |
| Surface | Mirror (Haze 0%), Hard coating (7H) |
| Brightness | 300 (Typ.) |
| Contrast Ratio | 1500 : 1 (Typ.) [Transmission] |
| Viewing Angle | 89/89/89/89 (Typ.) (CR≥10) |
| Good View at | Symmetry |
| Number of colors | 16.7M , 100% sRGB |
| Response time | 22 (Typ.)(G to G) ms |
| Used for | Pad & Tablet |
| Backlight type | WLED , 10K hours, with LED driver |
| refresh rate | 60Hz |
| Touch Screen | On-Cell Touch |
| screen weight | 252.3g (Typ.) |
| signal system | eDP (2 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , terminal, 30 pins |
| Supply voltage | 3.3V (Typ.) |
| maximum rating | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C |
| LQ116M1JX04 11.6 inch 1920*1080 LCD Screen Panel | |
