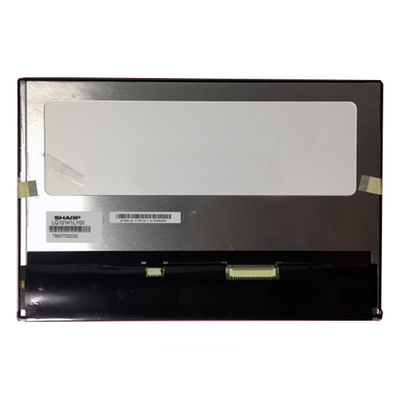

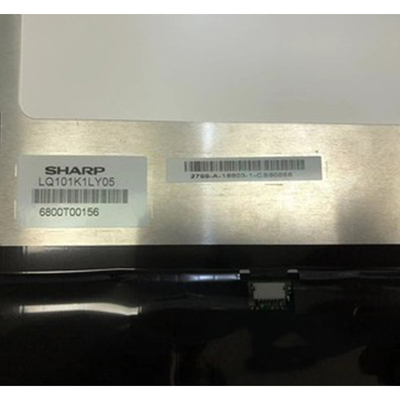

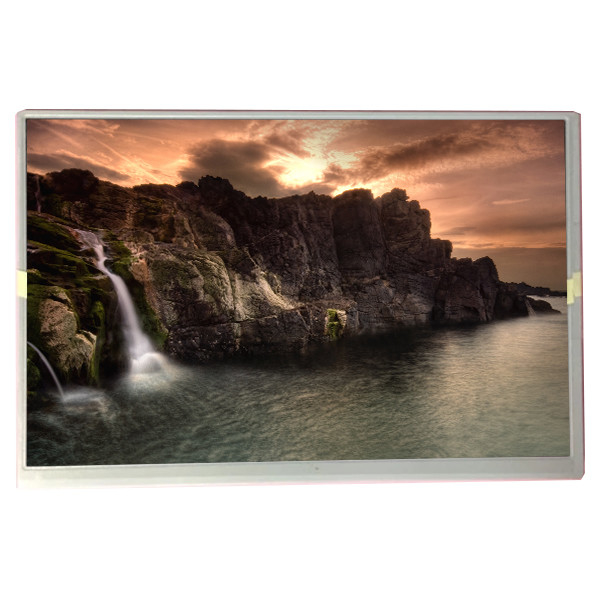

LQ101K1LY05 10.1 inch 1280*800 LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ101K1LY05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ101K1LY05 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800(WXGA) 149PPI | Designed For: | Industrial |
| Display Size: | 216.96 × 135.6 (H×V) Mm | Physical Dimension: | 230.7 × 152.7 × 9.2 (H×V×D) Mm |
| Brightness: | 400 Cd/m² (Typ.) | Viewing Angle: | 85/85/85/85 (Typ.) (CR≥10) |
| Screen Weight: | 270g | Signal System: | LVDS (1 Ch, 8-bit) , Terminal, 20 Pins |
| Maximum Rating: | Storage Temperature: -20 ~ 70 °C Operating Temperature: -10 ~ 70 °C | ||
Product Description
LQ101K1LY05 10.1 inch 1280*800 LCD Screen Display
LQ101K1LY05 LCD Panel Product details :
| Sharp LCD Screen LQ101K1LY05 | |
|---|---|
| Panel Brand | Sharp |
| Panel Model | LQ101K1LY05 |
| screen size | 10.1inches |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 1280(RGB)×800(WXGA) 149PPI |
| Pixel configuration | RGB Horizontal Stripe |
| Display size | 216.96 × 135.6 (H×V) mm |
| visible size | 220.56 × 139.2 (H×V) mm |
| physical dimension | 230.7 × 152.7 × 9.2 (H×V×D) mm |
| Surface | Specular (Haze 0%), Reflectance 1.25% (Typ.) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (Transmission) |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Optical mode | PSV, Normally Black, Transmissive |
| Number of colors | 16.7M , 50% NTSC |
| Response time | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Backlight type | WLED , 100K hours, with LED driver |
| refresh rate | 60Hz |
| Touch Screen | Without |
| screen weight | 270g |
| Used for | Industrial |
| signal system | LVDS (1 ch, 8-bit) , terminal, 20 pins |
| Supply voltage | 3.3V (Typ.) |
| maximum rating | Storage temperature: -20 ~ 70 °C Operating temperature: -10 ~ 70 °C |
| LQ101K1LY05 10.1 inch 1280*800 LCD Screen Display | |
LQ101K1LY05 LCD Screen Note:
Compatibility Assurance: Rest assured, the LCD screen you receive will be compatible with your device. While it may not be identical to the model specified in the title, please note that we prioritize sending compatible models. If you require an exact match, kindly reach out to us before making your purchase. In cases where our stock permits, we will provide photos of the exact model for your reference.
Precautionary Measures: Prior to ordering, we strongly advise removing your old screen. Additionally, please furnish us with details of your LCD model and laptop model. This information allows us to ensure that you receive the correct product. International shipping costs are significant, and we urge buyers to verify their requirements thoroughly to avoid any unnecessary expenses or inconvenience.
Consideration for Glued Notebooks: With modern notebooks often featuring glued components, separating the LCD screen from the cover or front touch panel can be challenging. Therefore, it is prudent to consider whether you require a standalone LCD screen or a complete LCD assembly before making your purchase. Many customers have encountered issues in the past due to this consideration. Hence, we recommend assessing your maintenance needs carefully to determine the most suitable option for your requirements.
LQ101K1LY05 LCD Screen About Company:
Specialization and Expertise: With a decade of experience in foreign trade, our company specializes in providing a wide range of computer spare parts. Our expertise lies in the professional sales of motherboards, graphics cards, screens, keyboards, and various other computer peripheral accessories. We are committed to offering high-quality products to meet the diverse needs of our customers.
Long-Term Partnership: We value establishing long-term partnerships with our clients. If you are interested in our products, we invite you to reach out to us. By collaborating with us, you can benefit from more favorable pricing and enhanced warranty policies. We prioritize building lasting relationships built on trust, reliability, and mutual benefit.
Terms and Conditions: By placing an order with us, you acknowledge and agree to abide by all the policies outlined above. We aim to ensure transparency and clarity in our business transactions, fostering a positive shopping experience for our customers.
LQ101K1LY05 LCD Panel Shipping and Package :
LQ101K1LY05 LCD Screen Return and Warranty:
Quality Inspection: Prior to shipment, all goods undergo rigorous inspection procedures twice to ensure optimal quality. However, if you find yourself unsatisfied with your purchase, you are entitled to exchange the items within one week of receipt. It is imperative to reach out to us within 24 hours of receiving your purchase to initiate the exchange process.
Warranty Coverage: Enjoy peace of mind with our comprehensive warranty coverage. All items are backed by a 6-month warranty period. Should any issues arise that are not attributable to human error, we will replace the item free of charge. Our commitment to providing top-notch after-sales service ensures that any problems encountered will be promptly addressed, with our team striving to deliver satisfactory resolutions to our valued customers.
Return Policy: To facilitate smooth returns, please ensure that all return items are in their original condition, complete with the original packaging and accessories. Please note that defects resulting from mishandling or improper use, such as breakage or scratching, are not covered under our warranty policy.
Shipping Instructions: When returning any items, we kindly request that you utilize EMS or your local postal service for shipping purposes. This helps expedite the return process and ensures the safe and secure transit of the item.
LQ101K1LY05 LCD Screen FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: If I place order now,when will you ship the goods of LQ101K1LY05 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of LQ101K1LY05 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods LQ101K1LY05 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
