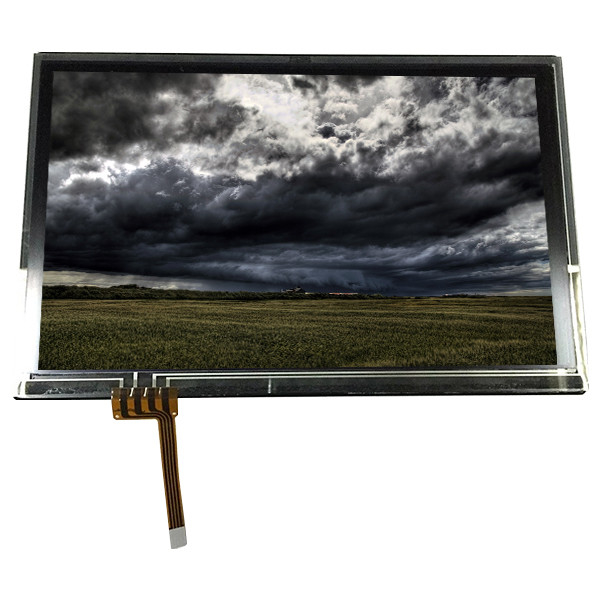

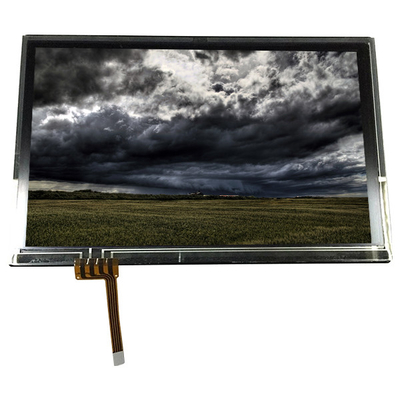

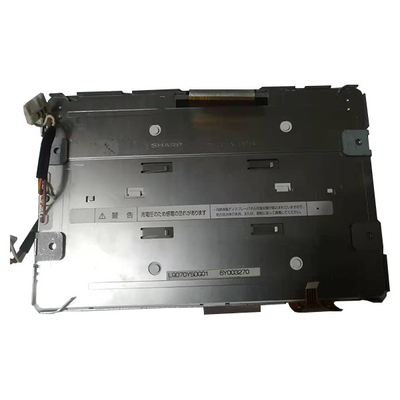

LQ070Y5DG01 7.0 inch 800*480 LCD Screen for Car Displays
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ070Y5DG01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ070Y5DG01 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Designed For: | Automotive Display | Resolution: | 800(RGB)×480, WVGA 133PPI |
| Active Area: | 152.4(W)×91.44(H) Mm | Outline(mm): | 172.2(W)×110.5(H) ×25(D) Mm |
| Luminance: | 530 Cd/m² (Typ.) | Viewing Angle: | 60/60/35/50 (Typ.)(CR≥10) |
| Mass: | 310±20g | Signal Type: | Parallel RGB (1 Ch, 6-bit) , 60 Pins FPC |
| Max. Ratings: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 M/s²) | ||
Product Description
LQ070Y5DG01 7.0 inch 800*480 LCD Screen for Car Displays
LQ070Y5DG01 LCD Panel Product details :
| Sharp LCD Screen LQ070Y5DG01 | |
|---|---|
| Panel Brand | Sharp |
| Panel Model | LQ070Y5DG01 |
| screen size | 7.0 inches |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480[WVGA] 133PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 152.4(W)×91.44(H) mm |
| visible size | 155.3(W)×94.9(H) mm |
| physical dimension | 172.2(W)×110.5(H)×25(D) mm |
| Surface | Antiglare, Antireflection |
| Brightness | 530 cd/m² (Typ.) |
| Contrast Ratio | 250:1 (Typ.) (TM) |
| Viewing Angle | 60/60/35/50 (Typ.) (CR≥10) |
| Optical mode | TN, Normally White, Transmissive |
| Number of colors | 262K , 54% NTSC |
| Response time | 10/20 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Backlight type | 2 pcs CCFL , 10K hours, without driver |
| refresh rate | 60Hz |
| Touch Screen | Without |
| screen weight | 310±20g |
| Used for | Automotive Display |
| signal system | Parallel RGB (1 ch, 6-bit) , 60 pins , FPC |
| Supply voltage | 5.3/3.3/13.0/-11.7/-13.7/-17.0V (Typ.)(VLS/VSH/VDD/VEE/VCC/VSS) |
| maximum rating | Operating: -30 ~ 85 °C ; Storage: -40 ~ 95 °C ; Vibration Resistance: 3.0G (29.4 m/s²) |
| LQ070Y5DG01 7.0 inch 800*480 LCD Screen for Car Displays | |
LQ070Y5DG01 LCD Screen Note:
Compatibility Assurance: Rest assured, the LCD screen you receive will be compatible with your device. While it may not be identical to the model specified in the title, please note that we prioritize sending compatible models. If you require an exact match, kindly reach out to us before making your purchase. In cases where our stock permits, we will provide photos of the exact model for your reference.
Precautionary Measures: Prior to ordering, we strongly advise removing your old screen. Additionally, please furnish us with details of your LCD model and laptop model. This information allows us to ensure that you receive the correct product. International shipping costs are significant, and we urge buyers to verify their requirements thoroughly to avoid any unnecessary expenses or inconvenience.
Consideration for Glued Notebooks: With modern notebooks often featuring glued components, separating the LCD screen from the cover or front touch panel can be challenging. Therefore, it is prudent to consider whether you require a standalone LCD screen or a complete LCD assembly before making your purchase. Many customers have encountered issues in the past due to this consideration. Hence, we recommend assessing your maintenance needs carefully to determine the most suitable option for your requirements.
LQ070Y5DG01 LCD Screen About Company:
Specialization and Expertise: With a decade of experience in foreign trade, our company specializes in providing a wide range of computer spare parts. Our expertise lies in the professional sales of motherboards, graphics cards, screens, keyboards, and various other computer peripheral accessories. We are committed to offering high-quality products to meet the diverse needs of our customers.
Long-Term Partnership: We value establishing long-term partnerships with our clients. If you are interested in our products, we invite you to reach out to us. By collaborating with us, you can benefit from more favorable pricing and enhanced warranty policies. We prioritize building lasting relationships built on trust, reliability, and mutual benefit.
Terms and Conditions: By placing an order with us, you acknowledge and agree to abide by all the policies outlined above. We aim to ensure transparency and clarity in our business transactions, fostering a positive shopping experience for our customers.
LQ070Y5DG01 LCD Panel Shipping and Package :
LQ070Y5DG01 LCD Screen Return and Warranty:
Quality Inspection: Prior to shipment, all goods undergo rigorous inspection procedures twice to ensure optimal quality. However, if you find yourself unsatisfied with your purchase, you are entitled to exchange the items within one week of receipt. It is imperative to reach out to us within 24 hours of receiving your purchase to initiate the exchange process.
Warranty Coverage: Enjoy peace of mind with our comprehensive warranty coverage. All items are backed by a 6-month warranty period. Should any issues arise that are not attributable to human error, we will replace the item free of charge. Our commitment to providing top-notch after-sales service ensures that any problems encountered will be promptly addressed, with our team striving to deliver satisfactory resolutions to our valued customers.
Return Policy: To facilitate smooth returns, please ensure that all return items are in their original condition, complete with the original packaging and accessories. Please note that defects resulting from mishandling or improper use, such as breakage or scratching, are not covered under our warranty policy.
Shipping Instructions: When returning any items, we kindly request that you utilize EMS or your local postal service for shipping purposes. This helps expedite the return process and ensures the safe and secure transit of the item.
LQ070Y5DG01 LCD Screen FAQ:
Q: How long is the warranty of LQ070Y5DG01 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of LQ070Y5DG01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of LQ070Y5DG01 ?
A: we will give you tracking number then you can trace your order from website.
Q: If I order LQ070Y5DG01 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
