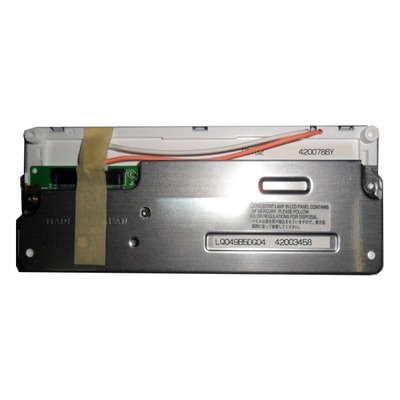

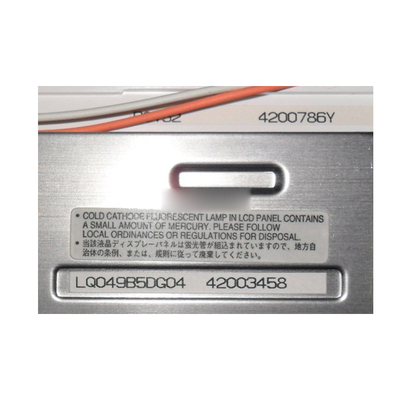

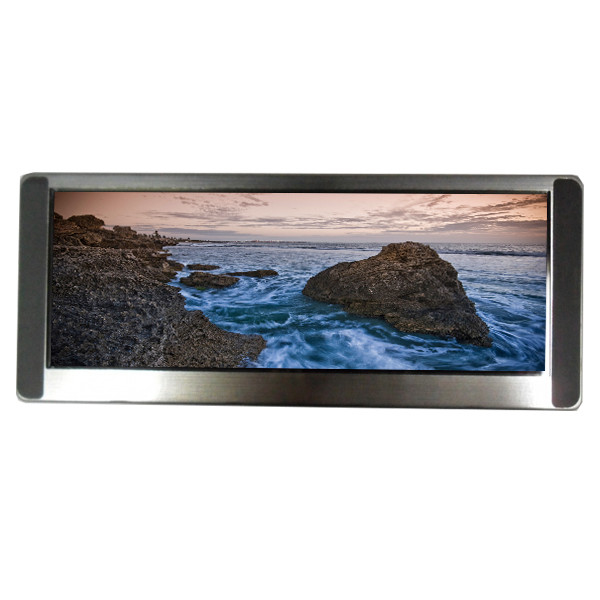

LQ049B5DG04 New 4.9 inch For Sharp 320*96 LCD Screen Display

LQ049B5DG04 New 4.9 inch For Sharp 320*96 LCD Screen Display

Product Details:

Place of Origin: China
Brand Name: Sharp
Model Number: LQ049B5DG04

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Model Name: LQ049B5DG04 Diagonal Size: 4.9" (Native Bar)
Resolution: 320(RGB)×96 67PPI Active Area: 120(W)×36(H) Mm
Outline Size: 142(W)×53.5(H) ×13.3(D) Mm Brightness: 350 Cd/m² (Typ.)
Viewing Angle: 65/65/40/65 (Typ.)(CR≥10) Weight: 110±20g
Signal Interface: Parallel RGB (1 Ch, 6-bit) , 30 Pins Connector Environment: Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 85 °C ; Vibration Level: 2.9G (28.4 M/s²)

Product Description

LQ049B5DG04 New 4.9 inch For Sharp 320*96 LCD Screen Display



LQ049B5DG04 LCD Panel Product details :



Sharp LCD Screen LQ049B5DG04
Panel Brand Sharp
Panel Model LQ049B5DG04
screen size 4.9 inches
Panel Type a-Si TFT-LCD , LCM
Resolution 320(RGB)×96 67PPI
Pixel configuration RGB Vertical Stripe
Display size 120(W)×36(H) mm
visible size 125.6(W)×41.6(H) mm
physical dimension 142(W)×53.5(H) mm
Surface Antiglare
Brightness 350 cd/m² (Typ.)
Contrast Ratio 60:1 (Min.) (TM)
Viewing Angle 65/65/40/65 (Typ.) (CR≥10)
Optical mode TN, Normally White, Transmissive
Number of colors 262K
Response time 30/50 (Typ.)(Tr/Td)
Best View on 6 o'clock
Backlight type 1 pcs CCFL , 10K hours, without driver
Application Automotive Display
Touch Screen Without
screen weight 110±20g
signal system Parallel RGB (1 ch, 6-bit) , 30 pins , terminal
Supply voltage 5.0/10.0/-10.0V (Typ.)(VSH/VGH/VGL)
maximum rating Operating: -30 ~ 85 °C ; Storage: -40 ~ 85 °C ; Vibration Resistance: 2.9G (28.4 m/s²)
LQ049B5DG04 New 4.9 inch For Sharp 320*96 LCD Screen Display



LQ049B5DG04 LCD Screen Note:


Compatibility Assurance: Rest assured, the LCD screen you receive will be compatible with your device. While it may not be identical to the model specified in the title, please note that we prioritize sending compatible models. If you require an exact match, kindly reach out to us before making your purchase. In cases where our stock permits, we will provide photos of the exact model for your reference.


Precautionary Measures: Prior to ordering, we strongly advise removing your old screen. Additionally, please furnish us with details of your LCD model and laptop model. This information allows us to ensure that you receive the correct product. International shipping costs are significant, and we urge buyers to verify their requirements thoroughly to avoid any unnecessary expenses or inconvenience.


Consideration for Glued Notebooks: With modern notebooks often featuring glued components, separating the LCD screen from the cover or front touch panel can be challenging. Therefore, it is prudent to consider whether you require a standalone LCD screen or a complete LCD assembly before making your purchase. Many customers have encountered issues in the past due to this consideration. Hence, we recommend assessing your maintenance needs carefully to determine the most suitable option for your requirements.



LQ049B5DG04 LCD Screen About Company:


Specialization and Expertise: With a decade of experience in foreign trade, our company specializes in providing a wide range of computer spare parts. Our expertise lies in the professional sales of motherboards, graphics cards, screens, keyboards, and various other computer peripheral accessories. We are committed to offering high-quality products to meet the diverse needs of our customers.


Long-Term Partnership: We value establishing long-term partnerships with our clients. If you are interested in our products, we invite you to reach out to us. By collaborating with us, you can benefit from more favorable pricing and enhanced warranty policies. We prioritize building lasting relationships built on trust, reliability, and mutual benefit.


 Terms and Conditions: By placing an order with us, you acknowledge and agree to abide by all the policies outlined above. We aim to ensure transparency and clarity in our business transactions, fostering a positive shopping experience for our customers.

LQ049B5DG04 LCD Panel Shipping and Package :
LQ049B5DG04 New 4.9 inch For Sharp 320*96 LCD Screen Display 0

LQ049B5DG04 LCD Screen Return and Warranty:


Quality Inspection: Prior to shipment, all goods undergo rigorous inspection procedures twice to ensure optimal quality. However, if you find yourself unsatisfied with your purchase, you are entitled to exchange the items within one week of receipt. It is imperative to reach out to us within 24 hours of receiving your purchase to initiate the exchange process.


Warranty Coverage: Enjoy peace of mind with our comprehensive warranty coverage. All items are backed by a 6-month warranty period. Should any issues arise that are not attributable to human error, we will replace the item free of charge. Our commitment to providing top-notch after-sales service ensures that any problems encountered will be promptly addressed, with our team striving to deliver satisfactory resolutions to our valued customers.

Return Policy: To facilitate smooth returns, please ensure that all return items are in their original condition, complete with the original packaging and accessories. Please note that defects resulting from mishandling or improper use, such as breakage or scratching, are not covered under our warranty policy.


Shipping Instructions: When returning any items, we kindly request that you utilize EMS or your local postal service for shipping purposes. This helps expedite the return process and ensures the safe and secure transit of the item.


LQ049B5DG04 LCD Screen FAQ:



Q: I do not find the LCD I am looking for in the website, what should I do ?

A: You can give us some pictures,we have a lot of LCD out of shelves.



Q: How long will I receive my goods of LQ049B5DG04 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.



Q: How to make payment for LQ049B5DG04 ?

A: We accept T/T , Paypal , western union .



Q: Can You declare my order of LQ049B5DG04 at a very low value ?

A: Yes , we can . pls inform us before shipping .
