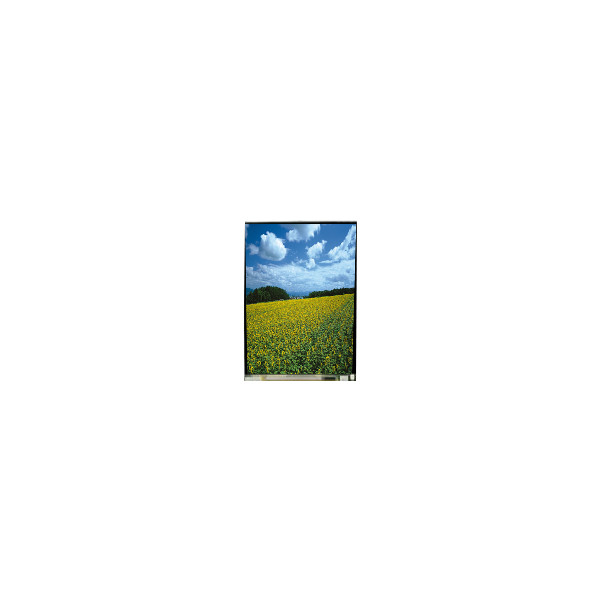

LS054T3SX01A Original 5.4 Inch MIPI Interface 1080*1920 TFT LCD Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LS054T3SX01A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LS054T3SX01A | Diagonal Size: | 5.4" |
|---|---|---|---|
| Resolution: | 1080(RGB)×1920, FHD 411PPI | Active Area: | 66.636(W)×118.464(H) Mm |
| Outline Size: | 68.7(H)×127.32(V)mm | Luminance: | 660 Cd/m² (Typ.) |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10 | Support Color: | 16.7M 54%NTSC |
| Interface Type: | MIPI (4 Data Lanes), 50 PinsFPC | Contrast Ratio: | 1300:1 (Typ.) (TM) |
Product Description
LS054T3SX01A Original 5.4 Inch MIPI Interface 1080*1920 TFT LCD Module
LS054T3SX01A LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LS054T3SX01A |
| Diagonal Size | 5.4" |
| Panel Type | Oxide TFT-LCD, LCM |
| Resolution | 1080(RGB)×1920, FHD 411PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 66.636(W)×118.464(H) mm |
| Bezel Opening | - |
| Outline Dim. | 68.7(H)×127.32(V)mm |
| Treatment | Hard coating (3H) |
| Luminance | 660 cd/m² (Typ.) |
| Contrast Ratio | 1300:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 13/8 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10 |
| Operating Mode | ASV, Normally Black, Transmissive |
| Support Color | 16.7M 54%NTSC |
| Light Source | WLED [6S2P], W/O Driver |
| Weight | 17.1g (Typ.) |
| Designed For | Mobile Phone |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | MIPI (4 data lanes), 50 pinsFPC |
| Power Supply | 1.8/5.2/-5.1V (Typ.)(IOVCC/VSP/VSN) |
| Environment | Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C |
| TFT-LCD Display LS054T3SX01A 5.4 inch LCD Screen Wholesale | |
LS054T3SX01A LCD Screen Note:
Compatibility Assurance: Rest assured, the LCD screen you receive will be compatible with your device. While it may not be identical to the model specified in the title, please note that we prioritize sending compatible models. If you require an exact match, kindly reach out to us before making your purchase. In cases where our stock permits, we will provide photos of the exact model for your reference.
Precautionary Measures: Prior to ordering, we strongly advise removing your old screen. Additionally, please furnish us with details of your LCD model and laptop model. This information allows us to ensure that you receive the correct product. International shipping costs are significant, and we urge buyers to verify their requirements thoroughly to avoid any unnecessary expenses or inconvenience.
Consideration for Glued Notebooks: With modern notebooks often featuring glued components, separating the LCD screen from the cover or front touch panel can be challenging. Therefore, it is prudent to consider whether you require a standalone LCD screen or a complete LCD assembly before making your purchase. Many customers have encountered issues in the past due to this consideration. Hence, we recommend assessing your maintenance needs carefully to determine the most suitable option for your requirements.
LS054T3SX01A LCD Screen About Company:
Specialization and Expertise: With a decade of experience in foreign trade, our company specializes in providing a wide range of computer spare parts. Our expertise lies in the professional sales of motherboards, graphics cards, screens, keyboards, and various other computer peripheral accessories. We are committed to offering high-quality products to meet the diverse needs of our customers.
Long-Term Partnership: We value establishing long-term partnerships with our clients. If you are interested in our products, we invite you to reach out to us. By collaborating with us, you can benefit from more favorable pricing and enhanced warranty policies. We prioritize building lasting relationships built on trust, reliability, and mutual benefit.
Terms and Conditions: By placing an order with us, you acknowledge and agree to abide by all the policies outlined above. We aim to ensure transparency and clarity in our business transactions, fostering a positive shopping experience for our customers.
LS054T3SX01A LCD Panel Shipping and Package :
LS054T3SX01A LCD Screen Return and Warranty:
Quality Inspection: Prior to shipment, all goods undergo rigorous inspection procedures twice to ensure optimal quality. However, if you find yourself unsatisfied with your purchase, you are entitled to exchange the items within one week of receipt. It is imperative to reach out to us within 24 hours of receiving your purchase to initiate the exchange process.
Warranty Coverage: Enjoy peace of mind with our comprehensive warranty coverage. All items are backed by a 6-month warranty period. Should any issues arise that are not attributable to human error, we will replace the item free of charge. Our commitment to providing top-notch after-sales service ensures that any problems encountered will be promptly addressed, with our team striving to deliver satisfactory resolutions to our valued customers.
Return Policy: To facilitate smooth returns, please ensure that all return items are in their original condition, complete with the original packaging and accessories. Please note that defects resulting from mishandling or improper use, such as breakage or scratching, are not covered under our warranty policy.
Shipping Instructions: When returning any items, we kindly request that you utilize EMS or your local postal service for shipping purposes. This helps expedite the return process and ensures the safe and secure transit of the item.
LS054T3SX01A LCD Screen FAQ:
Q: How long will I receive my goods LS054T3SX01A ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of LS054T3SX01A ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of LS054T3SX01A to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
