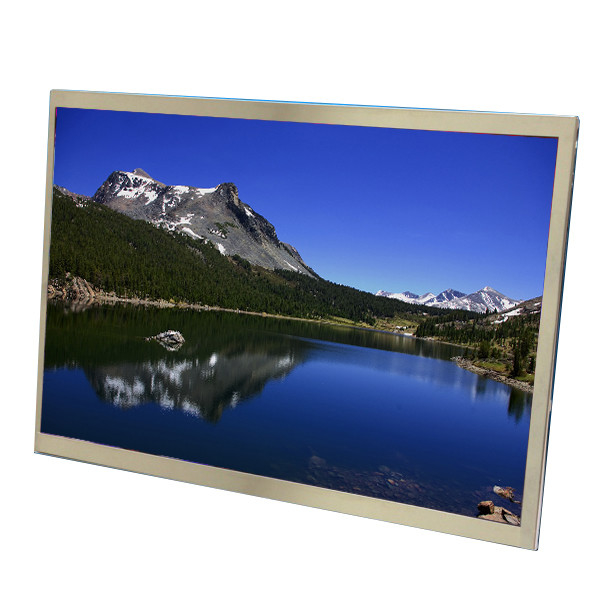

New TX31D200VM0BAA 12.3 inch 1280*480 LCD Industrial Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | TX31D200VM0BAA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TX31D200VM0BAA | Resolution: | 1280(RGB)×480 DVGA 111PPI |
|---|---|---|---|
| Pixel Format: | RGB Vertical Stripe | Diagonal Size: | 12.3'' |
| Display Size: | 291.84(W)×109.44(H) Mm | Brightness: | 1000 Cd/m² (Typ.) |
Product Description
New TX31D200VM0BAA 12.3 inch 1280*480 LCD Industrial Panel
TX31D200VM0BAA LCD Panel Product details :
| KOE LCD Screen TX31D200VM0BAA | |
|---|---|
| Panel Brand | KOE |
| Panel Model | TX31D200VM0BAA |
| Screen size | 12.3 inches |
| Panel Type | LCM, a-Si TFT-LC |
| Resolution | 1280(RGB)×480 DVGA 111PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 291.84(W)×109.44(H) mm |
| Bezel Opening | 295.44(W)×113.04(H) mm |
| Outline Dim. | 320(H)×130(V) ×12.6(D) mm |
| Surface | Antiglare |
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (Transmission) |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Optical mode | IPS, Normally Black, Transmissive |
| Number of colors | 262K , 100% sRGB |
| Response time | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Backlight type | WLED , 70K hours, with LED driver |
| Frame Rate | 60Hz |
| Touch Screen | Without |
| Screen weight | 540g |
| Used for | Industrial Outdoor High Brightness |
| Signal system | LVDS (1 ch, 6-bit) , 20 pins Connector |
| Supply voltage | 3.3V (Typ.) |
| Environment | Operating temperature: -30 ~ 80 °C ; Storage temperature: -40 ~ 90 °C ; Vibration resistance: 5.0G (49.0 m/s²) |
| New TX31D200VM0BAA 12.3 inch 1280*480 LCD Industrial Panel | |
Product Type: TX31D200VM0BAA LCD Screen
At our company, we take pride in offering excellent industrial LCD products. Occasionally, the images captured may not perfectly align with the product's logo due to upgrades or other factors. However, please rest assured that the product information, including electrical and mechanical properties, remains consistent. We apologize for any inconvenience caused by this discrepancy and appreciate your understanding.
Color Mismatch Disclaimer:
Please note that slight color deviations may occur in the LCD module due to various factors such as monitor color settings, lighting conditions, or background hues. While we strive to maintain color accuracy, we acknowledge that perceived differences may arise. If you believe that the item received does not match the expected color, we encourage you to reach out to us to discuss options for return or refund.
TX31D200VM0BAA LCD Panel Shipping and Package :
TX31D200VM0BAA LCD Screen Shipment:
Order Processing and Shipping:
Upon placing your order, kindly select your preferred shipping method and complete the payment, which includes the shipping fee. We endeavor to dispatch your items within 1-3 business days following the completion of your payment.
International Shipping Considerations:
Please be advised that we cannot guarantee specific delivery times for international shipments due to variations in customs clearing procedures across different countries. These differences may impact the speed at which your product undergoes inspection and clearance. We appreciate your patience and understanding in this regard.
Customs Fees and Duties:
It's important to note that buyers are responsible for any additional fees associated with customs clearance, including but not limited to customs fees, brokerage fees, duties, and taxes. In the event of refused shipments, buyers remain responsible for these charges.
Import Taxes:
Please be aware that the shipping cost does not cover any import taxes. Buyers are advised to acquaint themselves with their country's customs regulations and are responsible for any customs duties incurred as a result of the importation of our products.
TX31D200VM0BAA LCD Screen Returns Policy:
Return Period:
We offer a 15-day return window from the date of receipt of the items. Should you wish to return your purchase for any reason within this timeframe, we are happy to assist you with the process.
Condition of Returned Items:
To qualify for a refund, please ensure that the items are returned in their original condition. Any damage incurred to the items during the return transit may result in a deduction from the refund amount. We advise buyers to handle and package the items carefully to prevent damage during transportation.
Responsibility for Damaged or Lost Items:
In the event that returned items are damaged or lost during transit, the buyer assumes responsibility for such occurrences. We regret to inform you that a full refund will not be issued under these circumstances. We recommend that buyers file a claim with the logistic company to recover the costs associated with any damage or loss.
Shipping Fees for Returns:
Please note that the buyer is responsible for covering the shipping fees associated with returning the items. We kindly request that you arrange for the return shipment using a reliable and trackable shipping method.
TX31D200VM0BAA LCD Panel FAQ :
Q: How to make payment of TX31D200VM0BAA ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of TX31D200VM0BAA ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of TX31D200VM0BAA to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of TX31D200VM0BAA via credit card ?
A: Yes!you can use your credit card through your Paypal account.
