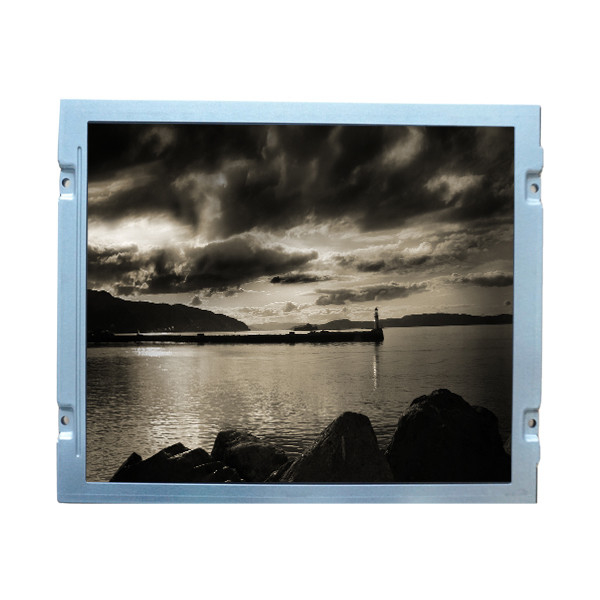

1024*768 123PPI TX26D203VM2BAA 10.4 inch Industry LCD Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | TX26D203VM2BAA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TX26D203VM2BAA | Resolution: | 1024(RGB)×768 XGA 123PPI |
|---|---|---|---|
| Pixel Format: | RGB Vertical Stripe | Diagonal Size: | 10.4 '' |
| Display Size: | 211.2(h)×158.4(v) Mm | Used For: | Industrial Outdoor High Brightness |
Product Description
1024*768 123PPI TX26D203VM2BAA 10.4 inch Industry LCD Panel
TX26D203VM2BAA LCD Panel Product details :
| KOE LCD Screen TX26D203VM2BAA | |
|---|---|
| Panel Brand | KOE |
| Panel Model | TX26D203VM2BAA |
| Screen size | 10.4 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×768 XGA 123PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 211.2(h)×158.4(v) mm |
| Bezel Opening | 214.2(h)×161.4(v) mm |
| Outline Dim. | 235 (h) × 180.2 (v) × 10 (t) mm |
| Brightness | 1200 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 75/75/60/70 (Typ.) (CR≥10) |
| Optical mode | TN, Normally White, Transmissive |
| Number of colors | 262K/16.7M , 50% NTSC |
| Response time | 16 (Typ.)(Tr+Td) ms |
| Best View on | 6 o'clock |
| Backlight type | WLED [4 strings] , 70K hours, no driver |
| Refresh rate | 60Hz |
| Touch Screen | Without |
| Screen weight | 370g (Typ.) |
| Application | Industrial Outdoor High Brightness |
| Signal system | 20 pins LVDS (1 ch, 6/8-bit) , terminal |
| Supply voltage | 3.3V (Typ.) (VDD) |
| Maximum rating | Operating temperature: -30 ~ 80 °C ; Storage temperature: -30 ~ 80 °C ; Vibration resistance: 2.0G (19.6 m/s²) |
| 1024*768 123PPI TX26D203VM2BAA 10.4 inch Industry LCD Panel | |
