7.0 inch TX18D210VM0BAA High brightness TFT LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | TX18D210VM0BAA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TX18D210VM0BAA | Resolution: | 800(RGB)×480 WVGA 133PPI |
|---|---|---|---|
| Pixel Format: | RGB Vertical Stripe | Diagonal Size: | 7.0 Inches |
| Designed For: | Industrial Outdoor High Brightness Automotive Display | Display Size: | 152.4(W)×91.44(H) Mm |
Product Description

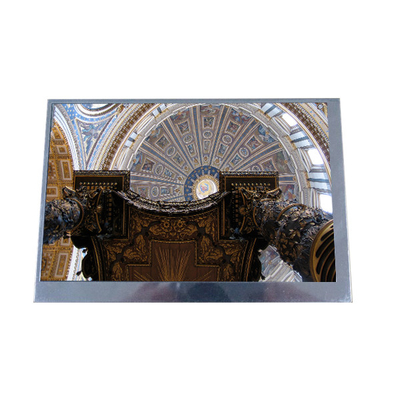

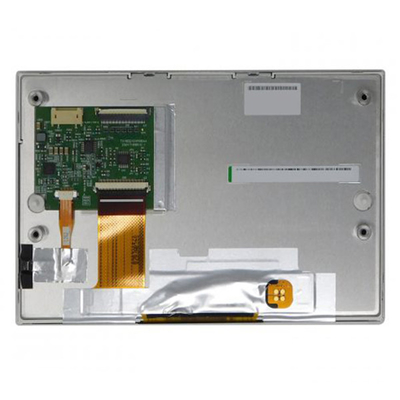

7.0 inch TX18D210VM0BAA High brightness TFT LCD Display
TX18D210VM0BAA LCD Panel Product details :
| KOE LCD Screen TX18D210VM0BAA | |
|---|---|
| Panel Brand | KOE |
| Panel Model | TX18D210VM0BAA |
| Size | 7.0 inches |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480 WVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 152.4(W)×91.44(H) mm |
| Bezel Opening | 156.2(W)×94.5(H) mm |
| Outline Dim. | 167.7(H)×109.5(V) ×20.3(D) mm |
| Brightness | 800 cd/m² (Typ.) |
| Contrast Ratio | 1200 : 1 (Typ.) (Transmission) |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Optical mode | IPS, Normally Black, Transmissive |
| Number of colors | 262K , 72% NTSC |
| Response time | 30 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Backlight type | WLED , 50K hours, with LED driver |
| Frame Rate | 60Hz |
| Touch Screen | Without |
| Weight | 214g (Typ.) |
| Used for | Industrial Outdoor High Brightness Automotive Display |
| Interface Type | 40 pins Parallel RGB (1 ch, 6-bit) , terminal |
| Supply voltage | 3.3V (Typ.) |
| Environment | Operating temperature: -40 ~ 85 °C ; Storage temperature: -40 ~ 90 °C ; Vibration resistance: 5.0G (49.0 m/s²) |
| 7.0 inch TX18D210VM0BAA High brightness TFT LCD Display | |
Product Type: TX18D210VM0BAA LCD Screen
