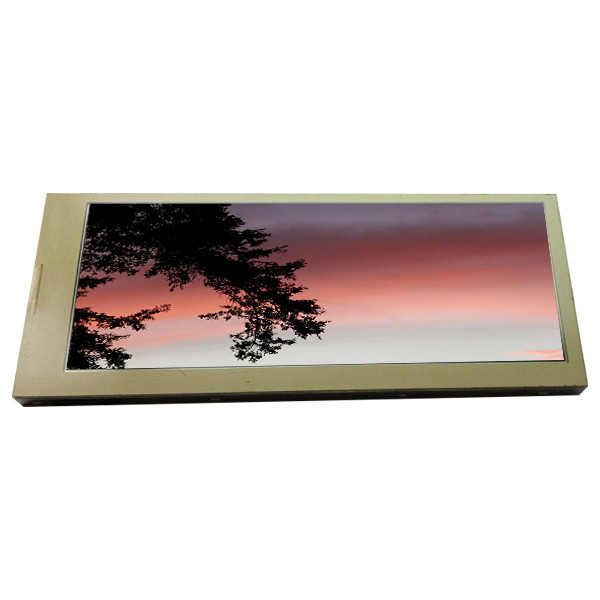

6.5 inch TX17D01VM2EAB 122PPI Lcd Industrial modules
Product Details:
Place of Origin: | China |
Brand Name: | HITACHI |
Model Number: | TX17D01VM2EAB |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | TX17D01VM2EAB | Resolution: | 640(RGB)×480VGA 122PPI |
---|---|---|---|
Diagonal Size: | 6.5'' | Display Size: | 132.48(h)×99.36(v) Mm |
Pixel Format: | RGB Vertical Stripe | Brightness: | 1000 (Typ.) |
Product Description
6.5 inch TX17D01VM2EAB 122PPI Lcd Industrial modules
TX17D01VM2EAB LCD Panel Product details :
HITACHI LCD Screen TX17D01VM2EAB | |
---|---|
Panel Brand | HITACHI |
Panel Model | TX17D01VM2EAB |
Screen size | 6.5inches |
Panel Type | LCM, a-Si TFT-LCD |
Resolution | 640(RGB)×480VGA 122PPI |
Pixel Format | RGB Vertical Stripe |
Display size | 132.48(h)×99.36(v) mm |
Bezel Opening | 135.9(h)×102.8(v) mm |
Outline Size | 153(h)×118(v) mm |
Surface | Glare (Haze 0%), Antireflection |
Brightness | 1000 (Typ.) |
Contrast Ratio | 600 : 1 (Typ.) [Transmission] |
Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) |
Display Mode | TN, Normally White, Transmissive |
Number of colors | 262K , 50% NTSC |
Response time | 30 (Typ.)(Tr+Td) ms |
Best View on | 6 o'clock |
Backlight type | WLED [3S4P] , 70K hours, with LED driver |
Refresh rate | 60Hz |
Touch Screen | Without |
Application | Industrial Outdoor High Brightness |
Weight | 190g (Typ.) |
Signal system | 31 pins CMOS (1 ch, 6-bit) , terminal |
Supply voltage | 3.3V (Typ.) (VDD) |
Environment | Operating temperature: -20 ~ 70 °C ; Storage temperature: -30 ~ 80 °C ; Vibration resistance: 2.0G (19.6 m/s²) |
6.5 inch TX17D01VM2EAB 122PPI Lcd Industrial modules |
TX17D01VM2EAB LCD Display Note :
Please ensure thorough verification of the following specifications – screen size, resolution, backlight type, interface type, and compatibility with your device – before proceeding with your order. If there is any uncertainty regarding compatibility, feel free to reach out to us for clarification at no cost.
Kindly furnish us with accurate contact details to facilitate prompt delivery of your item.
Should you wish for us to offer a reduced price to mitigate tariff implications, please inform us accordingly. However, please note that any associated risks shall be borne by you.
TX17D01VM2EAB LCD Panel Shipping and Package :
SHIPPING Information for TX17D01VM2EAB LCD Display :
We offer a variety of shipping options including Alibaba standard shipping, EMS, DHL, FedEx, and more. You can select your preferred shipping method during the checkout process.
Orders will typically be dispatched within 1-3 business days following the completion of payment. However, please note that certain products may require additional processing time depending on their stock availability.
Upon shipment, each order will be assigned a unique tracking number, which will be promptly provided to you for easy monitoring of your delivery.
To ensure the safe transit of your item, we utilize secure packaging consisting of an antistatic bag, bubble bag, bubble chamber, and a sturdy hard carton suited to the item's dimensions. This packaging approach is designed to minimize the risk of damage during transportation.
Reminder for TX17D01VM2EAB LCD Display Purchase :
Kindly note that our listed price does not incorporate any customs taxes or fees applicable in the destination country. Whether you incur any taxes or fees upon Customs clearance at your destination hinges on the regulations enforced by the respective country.
To ensure seamless delivery, please verify and ensure the accuracy of your shipping details, including your address, postal code, phone number, and designated contact person, prior to finalizing your order. In the event you wish to have your order delivered to an alternate address, please notify us in advance and leave a message in our transaction platform to facilitate the necessary arrangements.
TX17D01VM2EAB LCD Panel FAQ :
Q: Can You declare my order of TX17D01VM2EAB to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: If I place order now,when will you ship the goods of TX17D01VM2EAB ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of TX17D01VM2EAB via credit card ?
A:Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
