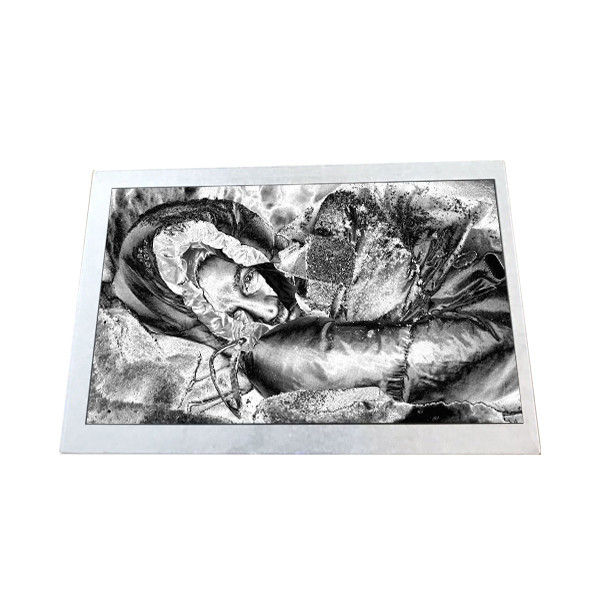

Industry TX13D06VM2BAA 5.0 inch 188PPI LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | HITACHI |
| Model Number: | TX13D06VM2BAA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TX13D06VM2BAA | Resolution: | 800(RGB)×480 [WVGA] 188PPI |
|---|---|---|---|
| Diagonal Size: | 5.0'' | Display Size: | 108(h)×64.8(v) Mm |
| Pixel Format: | RGB Vertical Stripe | Brightness: | 1000 Cd/m² (Typ.) |
Product Description
Industry TX13D06VM2BAA 5.0 inch 188PPI LCD Screen
TX13D06VM2BAA LCD Panel Product details :
| HITACHI LCD Screen TX13D06VM2BAA | |
| Panel Brand | HITACHI |
| Panel Model | TX13D06VM2BAA |
| Screen size | 5.0 inches |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 800(RGB)×480 [WVGA] 188PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 108(h)×64.8(v) mm |
| Bezel Opening | 110.0(h)×66.8(v) mm |
| Outline Dim. | 120 (h) × 80.7 (v) × 8.5 (t) mm |
| Surface | Antiglare |
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (Transmission) |
| Viewing Angle | 70/70/60/70 (Typ.) (CR≥10) |
| Optical mode | TN, Normally White, Transmissive |
| Number of colors | 262K , 50% NTSC |
| Response time | 500 (Typ.)(Tr+Td) ms |
| View Direction | 6 o'clock |
| Backlight type | WLED [3S6P] , 50K hours, no driver |
| Frame Rate | 60Hz |
| Touch Screen | Without |
| Screen weight | 75.0g (Typ.) |
| Designed For | Industrial / Outdoor High Brightness |
| Interface Type | 40 pins CMOS (1 ch, 6-bit) , terminal |
| Supply voltage | 3.3V (Typ.) |
| Environment | Operating temperature: -30 ~ 80 °C ; Storage temperature: -30 ~ 80 °C ; Vibration resistance: 2.0G (19.6 m/s²) |
| Industry TX13D06VM2BAA 5.0 inch 188PPI LCD Screen | |
TX13D06VM2BAA LCD Display Note :
Please ensure thorough verification of the following specifications – screen size, resolution, backlight type, interface type, and compatibility with your device – before proceeding with your order. If there is any uncertainty regarding compatibility, feel free to reach out to us for clarification at no cost.
Kindly furnish us with accurate contact details to facilitate prompt delivery of your item.
Should you wish for us to offer a reduced price to mitigate tariff implications, please inform us accordingly. However, please note that any associated risks shall be borne by you.
TX13D06VM2BAA LCD Panel Shipping and Package :
SHIPPING Information for TX13D06VM2BAA LCD Display :
We offer a variety of shipping options including Alibaba standard shipping, EMS, DHL, FedEx, and more. You can select your preferred shipping method during the checkout process.
Orders will typically be dispatched within 1-3 business days following the completion of payment. However, please note that certain products may require additional processing time depending on their stock availability.
Upon shipment, each order will be assigned a unique tracking number, which will be promptly provided to you for easy monitoring of your delivery.
To ensure the safe transit of your item, we utilize secure packaging consisting of an antistatic bag, bubble bag, bubble chamber, and a sturdy hard carton suited to the item's dimensions. This packaging approach is designed to minimize the risk of damage during transportation.
Reminder for TX13D06VM2BAA LCD Display Purchase :
Kindly note that our listed price does not incorporate any customs taxes or fees applicable in the destination country. Whether you incur any taxes or fees upon Customs clearance at your destination hinges on the regulations enforced by the respective country.
To ensure seamless delivery, please verify and ensure the accuracy of your shipping details, including your address, postal code, phone number, and designated contact person, prior to finalizing your order. In the event you wish to have your order delivered to an alternate address, please notify us in advance and leave a message in our transaction platform to facilitate the necessary arrangements.
TX13D06VM2BAA LCD Panel FAQ :
Q: How long will I receive my goods TX13D06VM2BAA ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of TX13D06VM2BAA ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of TX13D06VM2BAA to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of TX13D06VM2BAA via credit card ?
A: Yes!you can use your credit card through your Paypal account.
