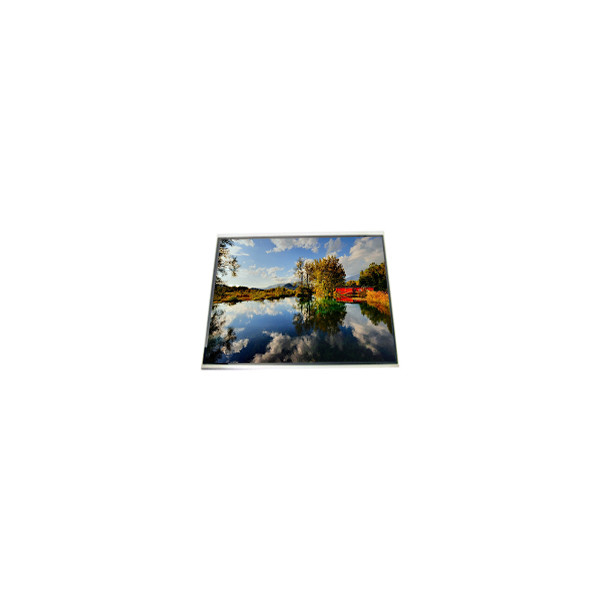

5.0 inch HSD050B8W8-P00 480*854 LCD Screen for Phone
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD050B8W8-P00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD050B8W8-P00 | Resolution: | 480(RGB)×854, FWVGA 197PPI |
|---|---|---|---|
| Diagonal Size: | 5.0" | Number Of Colors: | 16.7M 70%NTSC |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 61.632(W)×109.654(H) Mm |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode: | IPS Pro, Normally Black, Transmissive |
| Transmittance: | 4.47% (Typ.)(with Polarizer) | Designed For: | Mobile Phone |
Product Description
5.0 inch HSD050B8W8-P00 480*854 LCD Screen for Phone
HSD050B8W8-P00 LCD Panel Product details :
| Brand | HannStar |
| Model P/N | HSD050B8W8-P00 |
| Diagonal Size | 5.0" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 480(RGB)×854, FWVGA 197PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 61.632(W)×109.654(H) mm |
| Bezel Opening | - |
| Outline Dim. | 64.46(H)×116.8(V)×0.8(D) mm |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 16/19 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | IPS Pro, Normally Black, Transmissive |
| Plate Thickness | 0.40+0.40 mm |
| Transmittance | 4.47% (Typ.)(with Polarizer) |
| Support Color | 16.7M 70%NTSC |
| Light Source | No B/L |
| Weight | - |
| Designed For | Mobile Phone |
| Frame Rate | - |
| Touch Panel | Without |
| D-IC Detail | COG Suggest NT35510, NT35510S, HX8379-A, NT35512, OTM8009A, OTM8018B, RM68171, RM68180 |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
HSD050B8W8-P00 LCD Display Note :
Please ensure thorough verification of the following specifications – screen size, resolution, backlight type, interface type, and compatibility with your device – before proceeding with your order. If there is any uncertainty regarding compatibility, feel free to reach out to us for clarification at no cost.
Kindly furnish us with accurate contact details to facilitate prompt delivery of your item.
Should you wish for us to offer a reduced price to mitigate tariff implications, please inform us accordingly. However, please note that any associated risks shall be borne by you.
HSD050B8W8-P00 LCD Panel Shipping and Package :
SHIPPING Information for HSD050B8W8-P00 LCD Display :
We offer a variety of shipping options including ALI standard shipping, EMS, DHL, FedEx, and more. You can select your preferred shipping method during the checkout process.
Orders will typically be dispatched within 1-3 business days following the completion of payment. However, please note that certain products may require additional processing time depending on their stock availability.
Upon shipment, each order will be assigned a unique tracking number, which will be promptly provided to you for easy monitoring of your delivery.
To ensure the safe transit of your item, we utilize secure packaging consisting of an antistatic bag, bubble bag, bubble chamber, and a sturdy hard carton suited to the item's dimensions. This packaging approach is designed to minimize the risk of damage during transportation.
HSD050B8W8-P00 LCD Display Faulty Item Returns :
At our company, we value our customers' satisfaction above all else. We understand how frustrating it can be to receive a faulty item and we want to make sure that you are taken care of. If you receive a faulty item from us, please know that we are prepared to rectify the situation promptly and effectively.
Our policy on faulty item returns is simple. We offer a full refund to make sure that you are not inconvenienced any further. We know how important it is to have reliable and high-quality products, which is why we stand behind all of our products and are committed to ensuring our customers are happy with their purchases.
We take pride in the quality of our products and are confident that you will be satisfied with your purchase. However, if for any reason you receive a faulty item, simply contact our customer service team and we will take care of the rest. We believe in going above and beyond for our customers and ensuring that they are completely satisfied with their experience shopping with us.
We hope that you never have to deal with a faulty item, but if you do, please know that we are here to help. Our team is dedicated to resolving any issues that may arise and making sure that our customers are completely satisfied with their purchases. Thank you for choosing our company for your shopping needs and we look forward to serving you with excellence for years to come.
HSD050B8W8-P00 LCD Panel FAQ :
Q: Can you tested the HSD050B8W8-P00 before shipping ?
A: Of course , our lcd panel HSD050B8W8-P00 was Strictly tested before shipping.
Q: How to order HSD050B8W8-P00 ?
A: We accept T/T , Paypal , western union .
Q: What happen if the lcd panel HSD050B8W8-P00 received can't work ?
A:HSD050B8W8-P00 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
