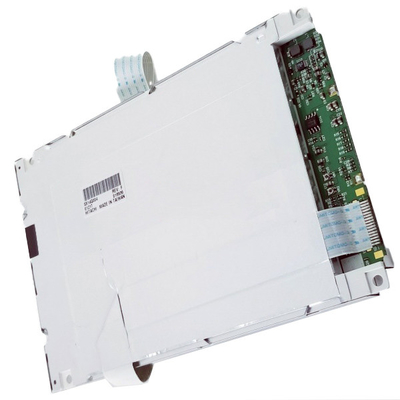

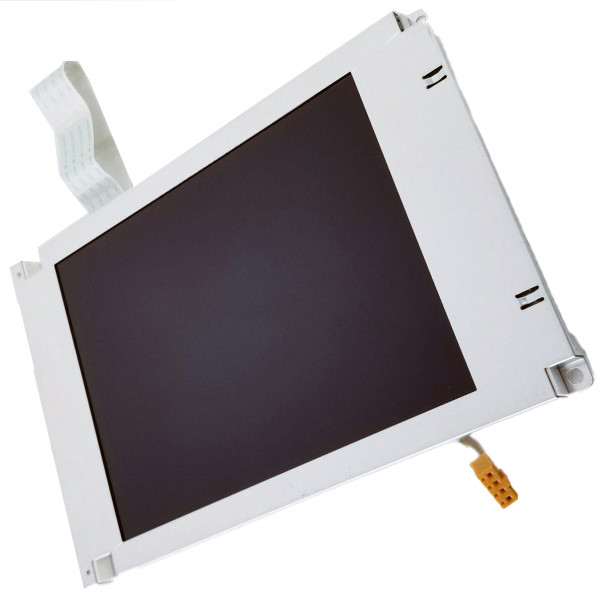

16 pins SX14Q004 3.3V Typ LCD Module Display
Product Details:
| Place of Origin: | China |
| Brand Name: | HITACHI |
| Model Number: | SX14Q004 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | SX14Q004 | Resolution: | 320(RGB)×240 QVGA 70PPI |
|---|---|---|---|
| Diagonal Size: | 5.7'' | Application: | Industrial |
| Brightness: | 200 Cd/m² (Typ.) | Display Area: | 115.2(h)×86.4(v) Mm |
Product Description
16 pins SX14Q004 3.3V Typ LCD Module Display
SX14Q004 LCD Panel Product details :

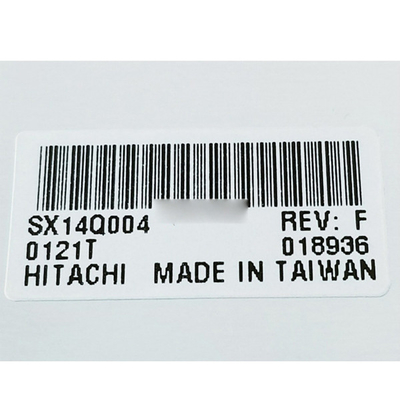

| HITACHI LCD Screen SX14Q004 | |
|---|---|
| Panel Brand | HITACHI |
| Panel Model | SX14Q004 |
| Panel Size | 5.7 inches |
| Panel Type | CSTN-LCD, LCM |
| Resolution | 320(RGB)×240 QVGA 70PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 115.2(W)×86.4(H) mm |
| Bezel Opening | 122.0(W)×92.0(H) mm |
| Outline Size | 167(W)×109(H)×9.2(D) mm |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 40:1 (Typ.) (Transmission) |
| Viewing Angle | 45/45/35/45 (Typ.) (CR≥2) |
| Display Mode | STN, Normally Black, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 250/200 (Typ.)(Tr/Td) ms |
| Display Colors | Color 46% NTSC |
| Lamp Type | 1 pcs CCFL , 50K hours |
| Frequency | 70Hz |
| Touch Screen | Without |
| Panel Weight | 190g (Typ.) |
| Designed For | Industrial |
| Signal Interface | Parallel Data (8-bit) , 16 pins , FPC |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
| 16 pins SX14Q004 3.3V Typ LCD Module Display | |
SX14Q004 LCD Display Note :
Please ensure thorough verification of the following specifications – screen size, resolution, backlight type, interface type, and compatibility with your device – before proceeding with your order. If there is any uncertainty regarding compatibility, feel free to reach out to us for clarification at no cost.
Kindly furnish us with accurate contact details to facilitate prompt delivery of your item.
Should you wish for us to offer a reduced price to mitigate tariff implications, please inform us accordingly. However, please note that any associated risks shall be borne by you.
SX14Q004 LCD Panel Shipping and Package :
SHIPPING Information for SX14Q004 LCD Display :
We offer a variety of shipping options including ALI standard shipping, EMS, DHL, FedEx, and more. You can select your preferred shipping method during the checkout process.
Orders will typically be dispatched within 1-3 business days following the completion of payment. However, please note that certain products may require additional processing time depending on their stock availability.
Upon shipment, each order will be assigned a unique tracking number, which will be promptly provided to you for easy monitoring of your delivery.
To ensure the safe transit of your item, we utilize secure packaging consisting of an antistatic bag, bubble bag, bubble chamber, and a sturdy hard carton suited to the item's dimensions. This packaging approach is designed to minimize the risk of damage during transportation.
v
Reminder for SX14Q004 LCD Display Purchase :
Kindly note that our listed price does not incorporate any customs taxes or fees applicable in the destination country. Whether you incur any taxes or fees upon Customs clearance at your destination hinges on the regulations enforced by the respective country.
To ensure seamless delivery, please verify and ensure the accuracy of your shipping details, including your address, postal code, phone number, and designated contact person, prior to finalizing your order. In the event you wish to have your order delivered to an alternate address, please notify us in advance and leave a message in our transaction platform to facilitate the necessary arrangements.
SX14Q004 LCD Panel FAQ :
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Do you accept sample orders of SX14Q004 ?
A: Of course!sample order is welcome !
Q: How to make payment of SX14Q004 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of SX14Q004 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
