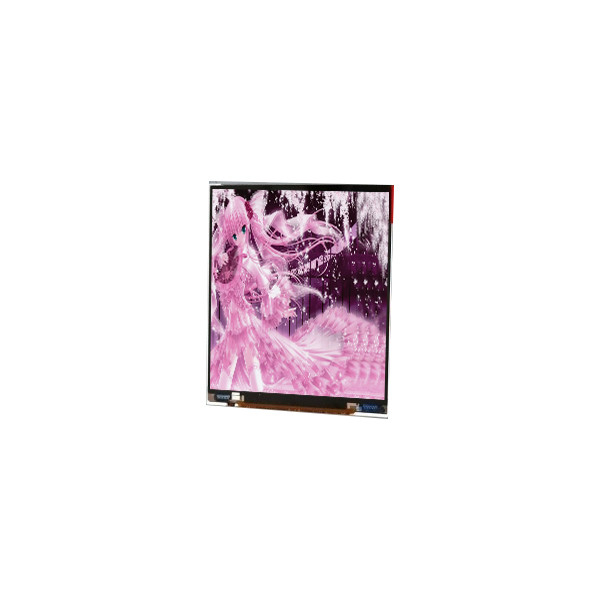

LPM055A358A 5.5 inch 1440*2560 LCD Phone Display Panels
Product Details:
| Place of Origin: | China |
| Brand Name: | JDI |
| Model Number: | LPM055A358A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LPM055A358A | Resolution: | 320×240 QVGA 105PPI |
|---|---|---|---|
| Diagonal Size: | 5.5" | Application: | Mobile Phone |
| Brightness: | 0 Cd/m² | Response Time: | 30 (Typ.)(Tr+Td) |
| Support Color: | 16.7M 70%NTSC | Light Source: | No B/L |
| Frame Rate: | 60Hz | Designed For: | Mobile Phone |
Product Description
LPM055A358A 5.5 inch 1440*2560 LCD Phone Display Panels
LPM055A358A LCD Panel Product details :
| Brand | JDI |
| Model P/N | LPM055A358A |
| Diagonal Size | 5.5" |
| Panel Type | LTPS TFT-LCD, CELL, COG |
| Resolution | 1440(RGB)×2560, Quad-HD 537PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 68.04(W)×120.96(H) mm |
| Bezel Opening | - |
| Outline Dim. | 70.04(H)×127.3(V)×0.5(D) mm |
| Treatment | Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Plate Thickness | 0.15+0.15 mm |
| Transmittance | 4.0% (Typ.)(with Polarizer) |
| Support Color | 16.7M 70%NTSC |
| Light Source | No B/L |
| Weight | TBD |
| Designed For | Mobile Phone |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| D-IC Detail | COG Built-in R63423 |
| Interface Type | MIPI (2 ch, 4 data lanes) |
| Power Supply | 1.8/5.8/-5.8V (Typ.)(VDDI/AVDD/AVEE) |
| Environment | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
