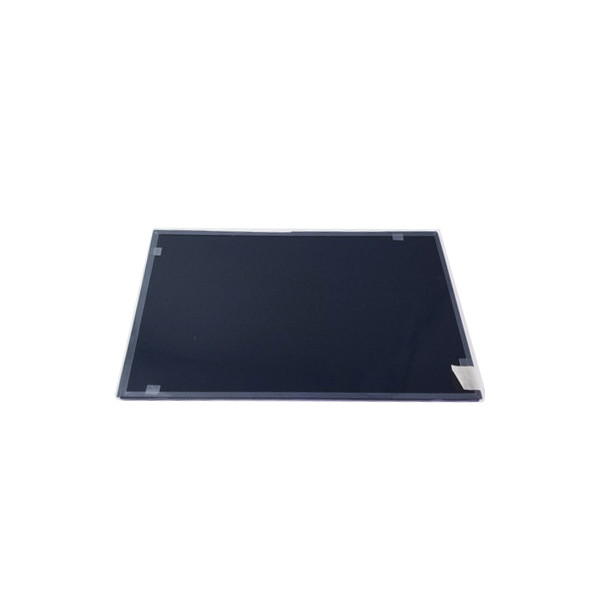

10.1 inch 1280*800 A101EVN01.0 LCD Display Panels
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A101EVN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A101EVN01.0 | Resolution: | 1280(RGB)×800, WXGA 149PPI |
|---|---|---|---|
| Diagonal Size: | 10.1" | Application: | Netbook PC |
| Brightness: | 0 Cd/m² | Active Area: | 216.96(W)×135.6(H) Mm |
| Operating Mode: | AMVA, Normally Black, Transmissive | Plate Thickness: | 0.30+0.30 Mm |
| Support Color: | 262K 45%NTSC | Frame Rate: | 60Hz |
Product Description
10.1 inch 1280*800 A101EVN01.0 LCD Display Panels
A101EVN01.0 LCD Panel Product details :
| Brand | AUO |
| Model P/N | A101EVN01.0 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, CELL, FOG |
| Resolution | 1280(RGB)×800, WXGA 149PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 216.96(W)×135.6(H) mm |
| Bezel Opening | - |
| Outline Dim. | 225.21(H)×145.3(V)×1.13(D) mm |
| Treatment | Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1300:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | AMVA, Normally Black, Transmissive |
| Plate Thickness | 0.30+0.30 mm |
| Transmittance | 4.64% (Typ.) |
| Support Color | 262K 45%NTSC |
| Light Source | No B/L |
| Form Style | - |
| Designed For | Netbook PC |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| D-IC Detail | COG Built-in 2 source + 2 gate chips |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
A101EVN01.0 LCD Display Note :
Please ensure thorough verification of the following specifications – screen size, resolution, backlight type, interface type, and compatibility with your device – before proceeding with your order. If there is any uncertainty regarding compatibility, feel free to reach out to us for clarification at no cost.
Kindly furnish us with accurate contact details to facilitate prompt delivery of your item.
Should you wish for us to offer a reduced price to mitigate tariff implications, please inform us accordingly. However, please note that any associated risks shall be borne by you.
A101EVN01.0 LCD Panel Shipping and Package :
SHIPPING Information for A101EVN01.0 LCD Display :
We offer a variety of shipping options including ALI standard shipping, EMS, DHL, FedEx, and more. You can select your preferred shipping method during the checkout process.
Orders will typically be dispatched within 1-3 business days following the completion of payment. However, please note that certain products may require additional processing time depending on their stock availability.
Upon shipment, each order will be assigned a unique tracking number, which will be promptly provided to you for easy monitoring of your delivery.
To ensure the safe transit of your item, we utilize secure packaging consisting of an antistatic bag, bubble bag, bubble chamber, and a sturdy hard carton suited to the item's dimensions. This packaging approach is designed to minimize the risk of damage during transportation.
v
Reminder for A101EVN01.0 LCD Display Purchase :
Kindly note that our listed price does not incorporate any customs taxes or fees applicable in the destination country. Whether you incur any taxes or fees upon Customs clearance at your destination hinges on the regulations enforced by the respective country.
To ensure seamless delivery, please verify and ensure the accuracy of your shipping details, including your address, postal code, phone number, and designated contact person, prior to finalizing your order. In the event you wish to have your order delivered to an alternate address, please notify us in advance and leave a message in our transaction platform to facilitate the necessary arrangements.
A101EVN01.0 LCD Panel FAQ :
Q: How do you ship my goods A101EVN01.0 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of A101EVN01.0 ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of LCD panel A101EVN01.0 at a very low value ?
A: Yes , we can . pls inform us before shipping .
