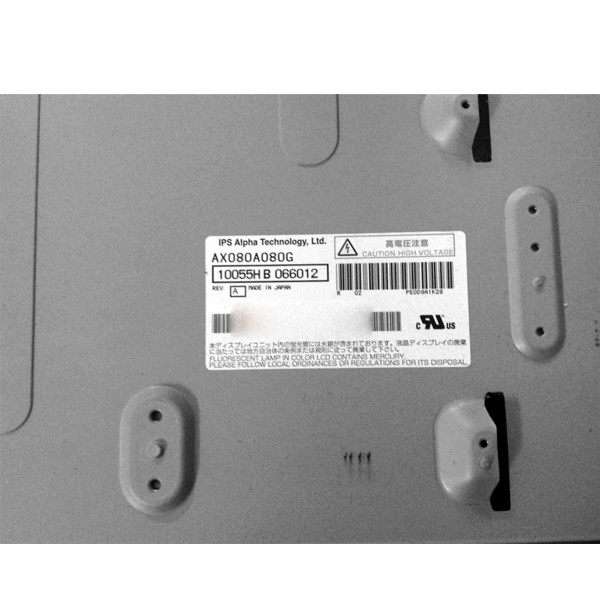

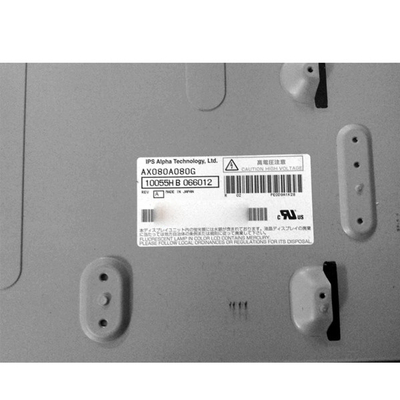

AX080A080G 1366*768 49PPI LCD Display screen
Product Details:
| Place of Origin: | China |
| Brand Name: | IPS Alpha |
| Model Number: | AX080A080G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AX080A076G | Brightness: | 400 Cd/m² (Typ.) |
|---|---|---|---|
| Diagonal Size: | 32.0' | Resolution: | 1366(RGB)×768 WXGA 49PPI |
| Active Area: | 697.685 × 392.256 Mm (H×V) | Pixel Format: | RGB Vertical Stripe |
| Viewing Angle: | 89/89/89/89 (Typ.) (CR≥10) | ||
Product Description
AX080A080G 1366*768 49PPI LCD Display screen
AX080A080G LCD Panel Product details :
| IPS Alpha LCD screen AX080A080G | |
|---|---|
| Panel Brand | IPS Alpha |
| Panel Model | AX080A080G |
| Panel Size | 32.0 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768 WXGA 49PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 697.685 × 392.256 mm (H×V) |
| Bezel Opening | 703.685 × 398.256 mm (H×V) |
| Outline Size | 760 × 450 × 47.7 mm (H×V×D) |
| Surface | Antiglare |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 1200:1 (Typ.) (Transmission) |
| Viewing Angle | 89/89/89/89 (Typ.) (CR≥10) |
| Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 8/6 (Typ.)(Tr/Td) ms |
| Display Colors | 16.7M , 61% NTSC |
| Lamp Type | 4 pcs CCFL , with inverter |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 5.25Kgs (Typ.) |
| Designed For | TV Sets |
| Signal Interface | LVDS (1 ch, 8-bit) , terminal, 30 pins |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| AX080A080G 1366*768 49PPI LCD Display screen | |
AX080A080G LCD Display Note :
Please ensure thorough verification of the following specifications – screen size, resolution, backlight type, interface type, and compatibility with your device – before proceeding with your order. If there is any uncertainty regarding compatibility, feel free to reach out to us for clarification at no cost.
Kindly furnish us with accurate contact details to facilitate prompt delivery of your item.
Should you wish for us to offer a reduced price to mitigate tariff implications, please inform us accordingly. However, please note that any associated risks shall be borne by you.
AX080A080G LCD Panel Shipping and Package :
SHIPPING Information for AX080A080G LCD Display :
We offer a variety of shipping options including ALI standard shipping, EMS, DHL, FedEx, and more. You can select your preferred shipping method during the checkout process.
Orders will typically be dispatched within 1-3 business days following the completion of payment. However, please note that certain products may require additional processing time depending on their stock availability.
Upon shipment, each order will be assigned a unique tracking number, which will be promptly provided to you for easy monitoring of your delivery.
To ensure the safe transit of your item, we utilize secure packaging consisting of an antistatic bag, bubble bag, bubble chamber, and a sturdy hard carton suited to the item's dimensions. This packaging approach is designed to minimize the risk of damage during transportation.
v
Reminder for AX080A080G LCD Display Purchase :
Kindly note that our listed price does not incorporate any customs taxes or fees applicable in the destination country. Whether you incur any taxes or fees upon Customs clearance at your destination hinges on the regulations enforced by the respective country.
To ensure seamless delivery, please verify and ensure the accuracy of your shipping details, including your address, postal code, phone number, and designated contact person, prior to finalizing your order. In the event you wish to have your order delivered to an alternate address, please notify us in advance and leave a message in our transaction platform to facilitate the necessary arrangements.
AX080A080G LCD Panel FAQ :
Q: Do you accept sample orders of AX080A080G ?
A: Of course!sample order is welcome !
Q: How can I trace my order of AX080A080G?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of AX080A080G ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of AX080A080G ?
A: We accept T/T , Paypal , western union .
