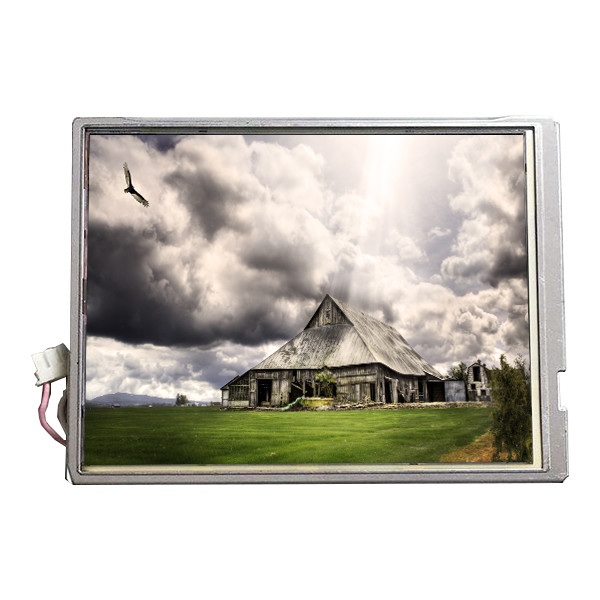

6.0 inch TFD60W12-B 66PPI TFT LCD Industry screen

Brand Name:	Toshiba
Model Number:	TFD60W12-B
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TFD60W12-B

Brightness:

280 Cd/m² (Typ.)

Diagonal Size:

6.0''

Resolution:

320(RGB)×234 66PPI

Active Area:

121.92 × 89.154 (H×V)

Pixel Format:

RGB Vertical Stripe

Designed For:

Industrial

Supply Ability:

100000 Unit/Units per Month

Product Description

6.0 inch TFD60W12-B 66PPI TFT LCD Industry screen

TFD60W12-B LCD Panel Product details :

Toshiba LCD Screen TFD60W12-B
Manufacturer	Toshiba
Model Name	TFD60W12-B
Screen Size	6.0 inch
Screen Type	LCM , a-Si TFT-LCD
Pixel Number	320(RGB)×234 66PPI
Arrangement	RGB Vertical Stripe
Active Area(mm)	121.92 × 89.154 (H×V)
Outline(mm)	144 × 109.4 (H×V×D)
Treatment	Antiglare, Antireflection
Luminance	280 cd/m² (Typ.)
Contrast Ratio	80 : 1 (Typ.) (TM)
Viewing Angle	45/45/45/15 (Typ.)(CR≥10)
Response	70/40 (Max.)(Tr/Td) ms
Good View at	12 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	Full color
Backlight	1 pcs CCFL , 10K hours , No Driver
Mass	210g
Used for	Industrial
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	TFT Specific Analog RGB , 24 pins Connector
Voltage Supply	5.0/13.0/23.0/-5.0V (Typ.)(VDD/VBB/VGG/VEE)
Max. Ratings	Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 65 °C
6.0 inch TFD60W12-B 66PPI TFT LCD Industry screen

TFD60W12-B LCD Display Note :

Please ensure thorough verification of the following specifications – screen size, resolution, backlight type, interface type, and compatibility with your device – before proceeding with your order. If there is any uncertainty regarding compatibility, feel free to reach out to us for clarification at no cost.

Kindly furnish us with accurate contact details to facilitate prompt delivery of your item.

Should you wish for us to offer a reduced price to mitigate tariff implications, please inform us accordingly. However, please note that any associated risks shall be borne by you.

TFD60W12-B LCD Panel Shipping and Package :

SHIPPING Information for TFD60W12-B LCD Display :

We offer a variety of shipping options including ALI standard shipping, EMS, DHL, FedEx, and more. You can select your preferred shipping method during the checkout process.

Orders will typically be dispatched within 1-3 business days following the completion of payment. However, please note that certain products may require additional processing time depending on their stock availability.

Upon shipment, each order will be assigned a unique tracking number, which will be promptly provided to you for easy monitoring of your delivery.

To ensure the safe transit of your item, we utilize secure packaging consisting of an antistatic bag, bubble bag, bubble chamber, and a sturdy hard carton suited to the item's dimensions. This packaging approach is designed to minimize the risk of damage during transportation.

v
Reminder for TFD60W12-B LCD Display Purchase :

Kindly note that our listed price does not incorporate any customs taxes or fees applicable in the destination country. Whether you incur any taxes or fees upon Customs clearance at your destination hinges on the regulations enforced by the respective country.

To ensure seamless delivery, please verify and ensure the accuracy of your shipping details, including your address, postal code, phone number, and designated contact person, prior to finalizing your order. In the event you wish to have your order delivered to an alternate address, please notify us in advance and leave a message in our transaction platform to facilitate the necessary arrangements.

TFD60W12-B LCD Panel FAQ :

Q: Can I pay my order of TFD60W12-B via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: If I place order now,when will you ship the goods of TFD60W12-B ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can You declare my order of TFD60W12-B to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long will I receive my goods TFD60W12-B ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
