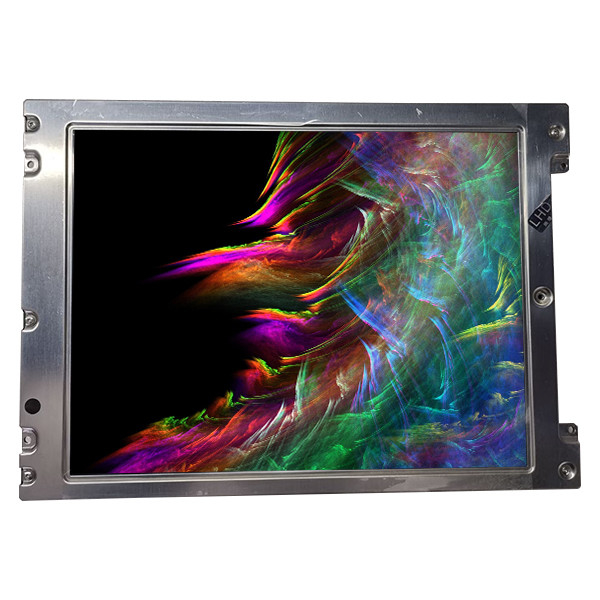

LTM10C209H 76PPI 31 pins LCD Display panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Toshiba |
| Model Number: | LTM10C209H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTM10C209H | Interface Type: | LCM , A-Si TFT-LCD |
|---|---|---|---|
| Diagonal Size: | 10.4'' | Resolution: | 640(RGB)×480 (VGA) 76PPI |
| Active Area: | 211.2(W)×158.4(H) Mm | Pixel Format: | RGB Vertical Stripe |
| Designed For: | Industrial | ||
Product Description
LTM10C209H 76PPI 31 pins LCD Display panel
LTM10C209H LCD Panel Product details :
| TOSHIBA LCD Screen LTM10C209H | |
|---|---|
| Panel Brand | TOSHIBA |
| Panel Model | LTM10C209H |
| Panel Size | 10.4" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 640(RGB)×480, VGA, 76PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 211.2(W)×158.4(H) mm |
| Bezel Opening | 216.2(W)×163.4(H) mm |
| Outline Size | 265(W)×188.8(H) ×12(D) mm |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 250:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 50/50 (Max.)(Tr/Td) |
| Display Colors | 262K |
| Lamp Type | 2 pcs CCFL , 30K hours , Without Driver |
| Touch Screen | Without |
| Weight | 605g (Typ.) |
| Application | Industrial |
| Signal Interface | CMOS (1 ch, 6-bit) , 31 pins Connector |
| Input Voltage | 5.0V (Typ.)(VDD) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| LTM10C209H 76PPI 31 pins LCD Display panel | |
LTM10C209H LCD Display Note :
Please ensure thorough verification of the following specifications – screen size, resolution, backlight type, interface type, and compatibility with your device – before proceeding with your order. If there is any uncertainty regarding compatibility, feel free to reach out to us for clarification at no cost.
Kindly furnish us with accurate contact details to facilitate prompt delivery of your item.
Should you wish for us to offer a reduced price to mitigate tariff implications, please inform us accordingly. However, please note that any associated risks shall be borne by you.
LTM10C209H LCD Panel Shipping and Package :
SHIPPING Information for LTM10C209H LCD Display :
We offer a variety of shipping options including ALI standard shipping, EMS, DHL, FedEx, and more. You can select your preferred shipping method during the checkout process.
Orders will typically be dispatched within 1-3 business days following the completion of payment. However, please note that certain products may require additional processing time depending on their stock availability.
Upon shipment, each order will be assigned a unique tracking number, which will be promptly provided to you for easy monitoring of your delivery.
To ensure the safe transit of your item, we utilize secure packaging consisting of an antistatic bag, bubble bag, bubble chamber, and a sturdy hard carton suited to the item's dimensions. This packaging approach is designed to minimize the risk of damage during transportation.
v
Reminder for LTM10C209H LCD Display Purchase :
Kindly note that our listed price does not incorporate any customs taxes or fees applicable in the destination country. Whether you incur any taxes or fees upon Customs clearance at your destination hinges on the regulations enforced by the respective country.
To ensure seamless delivery, please verify and ensure the accuracy of your shipping details, including your address, postal code, phone number, and designated contact person, prior to finalizing your order. In the event you wish to have your order delivered to an alternate address, please notify us in advance and leave a message in our transaction platform to facilitate the necessary arrangements.
LTM10C209H LCD Panel FAQ :
Q: If I place order now,when will you ship the goods of LTM10C209H?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can You declare my order of LTM10C209H to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of LTM10C209H via credit card ?
A: Yes!you can use your credit card through your Paypal account.
