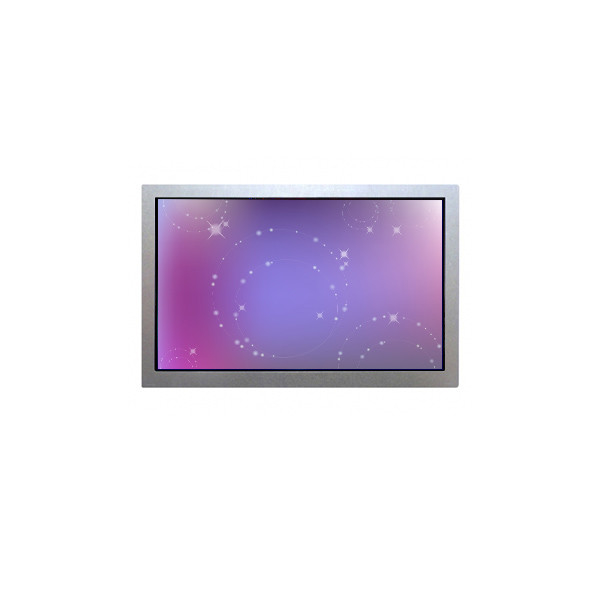

MAA121DSK26 12.1 inch resolution 800*600 Industrial LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | MAA121DSK26 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | MAA121DSK26 | Diagonal Size: | 12.1" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA 82PPI | Active Area: | 246(W)×184.5(H) Mm |
| Outline Size: | 280(W)×210(H) ×12.5(D) Mm | Brightness: | 300 Cd/m² (Typ.) |
| Application: | Industrial | Viewing Angle: | 60/60/40/50 (Typ.)(CR≥10) |
| Panel Weight: | 740g (Typ.) | Signal Interface: | CMOS (1 Ch, 6-bit) , 41 Pins Connector |
| Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C | ||
Product Description
MAA121DSK26 12.1 inch resolution 800*600 Industrial LCD Screen Display
MAA121DSK26 LCD Panel Product details :
| Mitsubishi LCD SCREEN MAA121DSK26 | |
|---|---|
| manufacturer | Mitsubishi |
| Model Name | MAA121DSK26 |
| screen size | 12.1 inch |
| Screen Type | a-Si TFT-LCD , LCM |
| Pixel Number | 800(RGB)×600 [SVGA] 82PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 246(H)×184.5(V) mm |
| Outline Dim | 280(H)×210(V) ×12.5(D) mm |
| Bezel Area | 249.0(H)×187.5(V) mm |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) (TM) |
| Response Time | 20/30 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/40/50 (Typ.)(CR≥10) |
| Support Color | 262K 37% NTSC |
| Weight | 740g (Typ.) |
| Interface Type | CMOS (1 ch, 6-bit) 41 pins Connector |
| Power Supply | 3.3/5.0V (Typ.)(VCC) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| MAA121DSK26 12.1 inch resolution 800*600 Industrial LCD Screen Display | |
