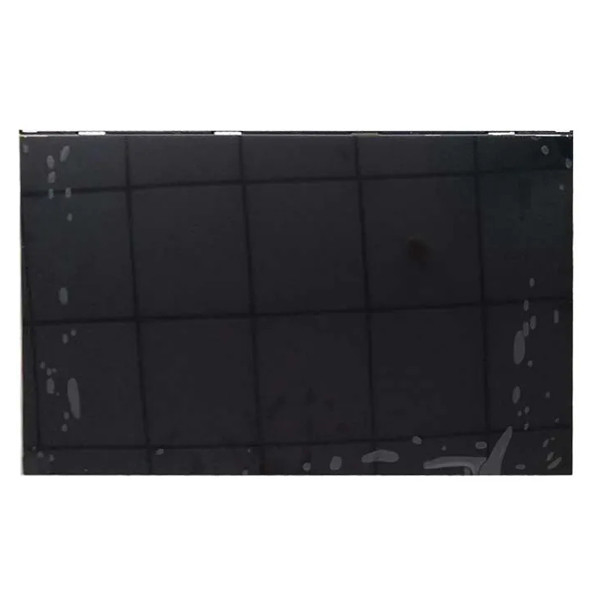

• NL256204AM15-04A lcd panel 20.1 inch 2560*2048 LCD screen
NL256204AM15-04A lcd panel 20.1 inch 2560*2048 LCD screen

NL256204AM15-04A lcd panel 20.1 inch 2560*2048 LCD screen

Product Details:

Place of Origin: China
Brand Name: NEC
Model Number: NL256204AM15-04A

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Model Name: NL256204AM15-04A Diagonal Size: 20.1"
Resolution: 2560(LCR)×2048, QSXGA 162PPI Active Area: 399.36(W)×319.49(H) Mm
Luminance: 850 Cd/m² (Typ.) Contrast Ratio: 500:1 (Typ.) (TM)
Viewing Angle: 88/88/88/88 (Typ.)(CR≥10)

Product Description

NL256204AM15-04A lcd panel 20.1 inch 2560*2048 LCD screen



NL256204AM15-04A LCD Panel Product details :



NEC LCD Screen NL256204AM15-04A
Manufacturer NEC
Model Name NL256204AM15-04A
Screen Size 20.1inch
Panel Type a-Si TFT-LCD, LCM
Resolution 2560(LCR)×2048, QSXGA 162PPI
Pixel layout RGB Vertical Stripe
Active Area 399.36(W)×319.49(H) mm
Bezel Opening 404.2(W)×324.4(H) mm
Outline (mm) 423.4(W)×343.5(H) ×44.5(D) mm
Treatment Antiglare, Hard coating (2H)
Luminance 850 cd/m² (Typ.)
Contrast Ratio 900:1 (Typ.) (TM)
Viewing angle 88/88/88/88 (Typ.)(CR≥10)
Response 15/15 (Typ.)(Tr/Td)
View Direction -
Work Mode UA-SFT, Normally Black, Transmissive
Color Depth Grayscale
Backlight 12 pcs CCFL , 45K hours , With Inverter
Mass 2.30/2.60Kgs (Typ./Max.)
Used for Medical Imaging
Refresh Rate 60Hz
Touchscreen Without
Signal Type LVDS (4 ch, 8-bit) , 80 pins Connector
Voltage Supply 12.0V (Typ.)
Environment Operating Temp.: 0 ~ 55 °C ; Storage Temp.: -20 ~ 60 °C
NL256204AM15-04A lcd panel 20.1 inch 2560*2048 LCD screen



NL256204AM15-04A LCD Panel Shipping and Package :

NL256204AM15-04A lcd panel 20.1 inch 2560*2048 LCD screen 0

Shipping Terms for NL256204AM15-04A LCD Screen:



Efficient Shipping Agency: Partnering with the most reputable and powerful shipping agencies, we guarantee professional and swift shipping services. With our trusted partners, you can expect your order to be handled with utmost care and delivered to you in optimal condition.



Fast Delivery Worldwide: We understand the importance of prompt delivery. Typically, your NL256204AM15-04A LCD Screen will be dispatched within 24 hours of placing your order. With our efficient shipping methods, delivery times are estimated to be within 3-7 business days worldwide. We prioritize expediency without compromising on the safety of your shipment.



Import Duties and Taxes: Please note that import duties, taxes, and other charges may apply depending on your location and local customs regulations. These additional fees are not included in the purchase price or shipping cost. Customers are responsible for any applicable import duties, taxes, or charges incurred upon receiving their order. We advise you to familiarize yourself with your country's import policies to avoid any unexpected expenses.


After-Service Note for NL256204AM15-04A LCD Screen:



Exclusions from Warranty Coverage: Our warranty does not cover damages resulting from man-made factors or natural disasters. Examples include, but are not limited to, improper installation, physical damage such as nicks or scratches, malfunction due to improper handling, or damage caused by external factors like power surges or environmental hazards.



Warranty Fragile Tags: To facilitate warranty claims, each product sold by our store is equipped with warranty fragile tags. These tags serve as evidence of warranty coverage. If these tags are tampered with or removed during the warranty period, it will be considered a breach of warranty terms.



Waiver of Warranty: Any deliberate disconnection or loss of the product's warranty fragile tags will be interpreted as the customer's decision to waive warranty coverage. In such cases, we cannot accept responsibility for any subsequent issues or damages.



Please be mindful of these terms and conditions to ensure a smooth after-sales experience. Should you have any questions or concerns regarding warranty coverage or after-service support, do not hesitate to reach out to our dedicated customer service team.


Refund & Return Policy for NL256204AM15-04A LCD Screen:



Damaged During Transportation: We understand the concerns associated with shipping delicate items. Rest assured, if your LCD screen arrives damaged due to transportation mishaps, we offer a hassle-free refund. Simply notify us of the damage, and we will initiate the refund process promptly.



Secure Packaging Guarantee: Your peace of mind is paramount to us. With meticulous attention to detail, we ensure that every LCD screen is packed securely to withstand the rigors of transit. Trust in our packaging expertise, and bid farewell to worries regarding the safety of your shipment.



Item Not as Described: Your satisfaction with our products is our top priority. In the unlikely event that the received item does not align with the provided description, you have the option to return it. We value transparency and strive to uphold the accuracy of product descriptions, but if discrepancies arise, we stand ready to address them swiftly.



NL256204AM15-04A LCD Panel FAQ :



Q: Can You declare my order of NL256204AM15-04A to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .



Q: How can I trace my order of NL256204AM15-04A ?

A: we will give you tracking number then you can trace your order from website.



Q: How long will I receive my goods NL256204AM15-04A ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.



Q: How to make payment of NL256204AM15-04A ?

A: We accept T/T , Paypal , western union .



Want to Know more details about this product
I am interested in NL256204AM15-04A lcd panel 20.1 inch 2560*2048 LCD screen could you send me more details such as type, size, quantity, material, etc.
Thanks!
Waiting for your reply.
