HSD070IDW2-A10 lcd panel 7.0 inch 800*480 LCD screen
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD070IDW2-A10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD070IDW2-A10 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 133PPI | Active Area: | 152.4(W)×91.44(H) Mm |
| Outline (mm): | 165(H)×105(V)×5.3(D) Mm | Bezel Opening: | 155.15(W)×94.20(H) Mm |
| Contrast Ratio: | 500:1 (Typ.) (TM) | Display Mode: | TN, Normally White, Transmissive |
| Used For: | Digital Photo Frame / Portable DVD Player | Interface Type: | Parallel RGB (1 Ch, 6-bit) , 60 Pins FPC |
Product Description

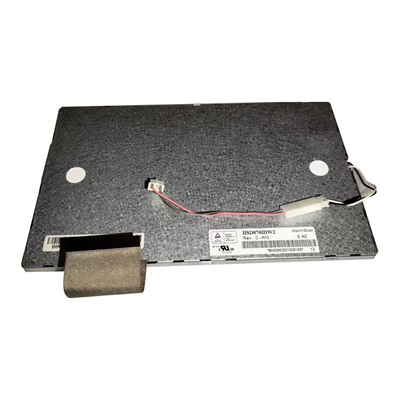

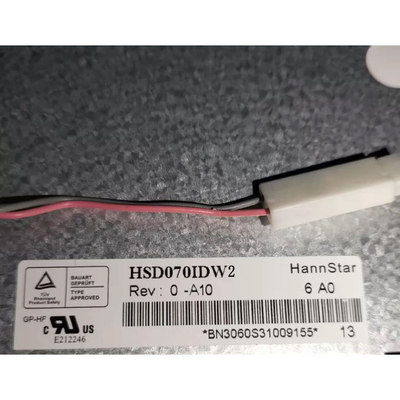

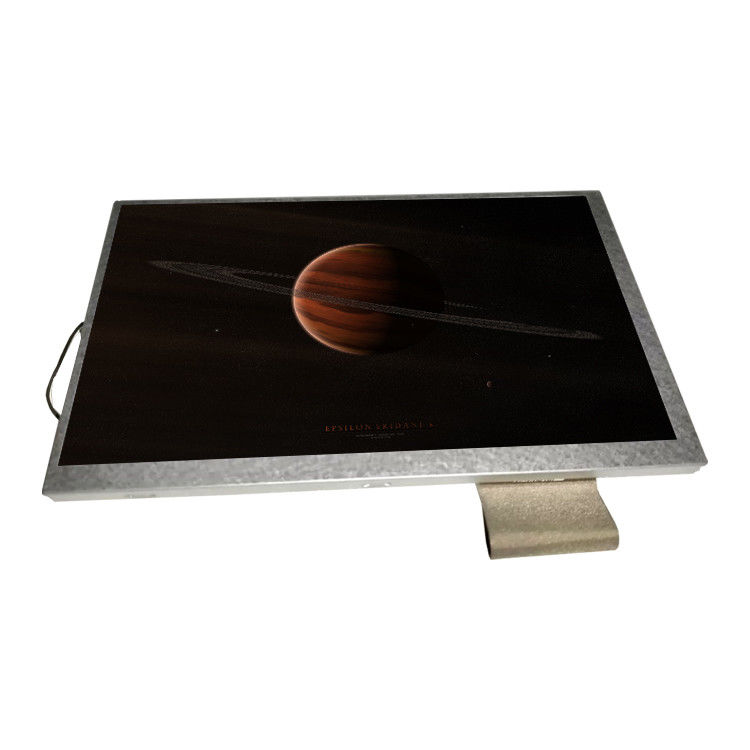

HSD070IDW2-A10 lcd panel 7.0 inch 800*480 LCD screen
HSD070IDW2-A10 LCD Panel Product details :
| HannStar LCD Screen HSD070IDW2-A10 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD070IDW2-A10 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | 155.15(W)×94.20(H) mm |
| Outline Dim. | 165(H)×105(V)×5.3(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 2.4/5.6 (Typ.)(Tr/Td) |
| Viewing Angle | 75/75/60/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K |
| Light Source | WLED [3S6P] , 20K hours , W/O Driver |
| Weight | 157g (Typ.) |
| Designed For | Digital Photo Frame / Portable DVD Player |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | Parallel RGB (1 ch, 6-bit) , 60 pins FPC |
| Power Supply | 3.0/10.0/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| HSD070IDW2-A10 lcd panel 7.0 inch 800*480 LCD screen | |
HSD070IDW2-A10 LCD Panel Shipping and Package :
Shipping Terms for HSD070IDW2-A10 LCD Screen:
Efficient Shipping Agency: Partnering with the most reputable and powerful shipping agencies, we guarantee professional and swift shipping services. With our trusted partners, you can expect your order to be handled with utmost care and delivered to you in optimal condition.
Fast Delivery Worldwide: We understand the importance of prompt delivery. Typically, your HSD070IDW2-A10 LCD Screen will be dispatched within 24 hours of placing your order. With our efficient shipping methods, delivery times are estimated to be within 3-7 business days worldwide. We prioritize expediency without compromising on the safety of your shipment.
Import Duties and Taxes: Please note that import duties, taxes, and other charges may apply depending on your location and local customs regulations. These additional fees are not included in the purchase price or shipping cost. Customers are responsible for any applicable import duties, taxes, or charges incurred upon receiving their order. We advise you to familiarize yourself with your country's import policies to avoid any unexpected expenses.
After-Service Note for HSD070IDW2-A10 LCD Screen:
Exclusions from Warranty Coverage: Our warranty does not cover damages resulting from man-made factors or natural disasters. Examples include, but are not limited to, improper installation, physical damage such as nicks or scratches, malfunction due to improper handling, or damage caused by external factors like power surges or environmental hazards.
Warranty Fragile Tags: To facilitate warranty claims, each product sold by our store is equipped with warranty fragile tags. These tags serve as evidence of warranty coverage. If these tags are tampered with or removed during the warranty period, it will be considered a breach of warranty terms.
Waiver of Warranty: Any deliberate disconnection or loss of the product's warranty fragile tags will be interpreted as the customer's decision to waive warranty coverage. In such cases, we cannot accept responsibility for any subsequent issues or damages.
Please be mindful of these terms and conditions to ensure a smooth after-sales experience. Should you have any questions or concerns regarding warranty coverage or after-service support, do not hesitate to reach out to our dedicated customer service team.
Refund & Return Policy for HSD070IDW2-A10 LCD Screen:
Damaged During Transportation: We understand the concerns associated with shipping delicate items. Rest assured, if your LCD screen arrives damaged due to transportation mishaps, we offer a hassle-free refund. Simply notify us of the damage, and we will initiate the refund process promptly.
Secure Packaging Guarantee: Your peace of mind is paramount to us. With meticulous attention to detail, we ensure that every LCD screen is packed securely to withstand the rigors of transit. Trust in our packaging expertise, and bid farewell to worries regarding the safety of your shipment.
Item Not as Described: Your satisfaction with our products is our top priority. In the unlikely event that the received item does not align with the provided description, you have the option to return it. We value transparency and strive to uphold the accuracy of product descriptions, but if discrepancies arise, we stand ready to address them swiftly.
HSD070IDW2-A10 LCD Panel FAQ :
Q: Can You declare my order of HSD070IDW2-A10 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of HSD070IDW2-A10 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long will I receive my goods HSD070IDW2-A10 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of HSD070IDW2-A10 ?
A: We accept T/T , Paypal , western union .
