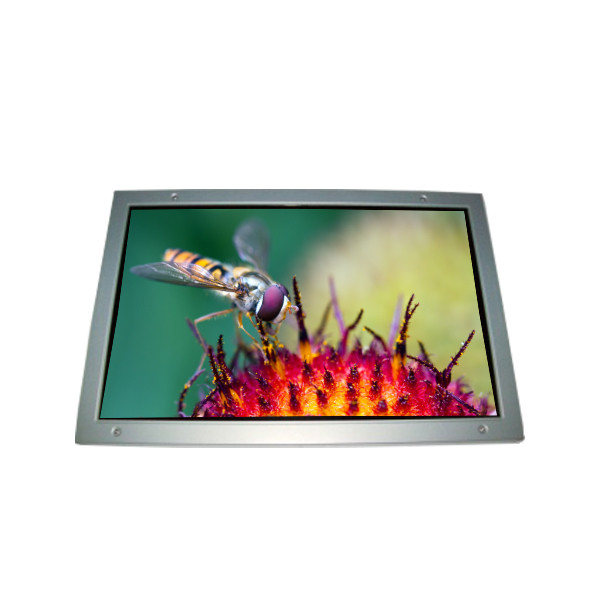

104 pins Connector NL192120BC25-03 TFT LCD display panel
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL192120BC25-03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NL192120BC25-03 | Diagonal Size: | 22.5" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1200, WUXGA 100PPI | Active Area: | 483.84(W)×302.4(H) Mm |
| Refresh Rate: | 120Hz | Pixel Layout: | RGB Vertical Stripe |
| Contrast Ratio: | 800:1 (Typ.) (TM) | Viewing Angle: | 88/88/88/88 (Typ.)(CR≥10) |
Product Description
104 pins Connector NL192120BC25-03 TFT LCD display panel
NL192120BC25-03 LCD Panel Product details :
| NEC LCD Screen NL192120BC25-03 | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL192120BC25-03 |
| Screen Size | 22.5inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1200, WUXGA 100PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 483.84(W)×302.4(H) mm |
| Bezel Opening | 489.2(W)×306.6(H) mm |
| Outline (mm) | 542(W)×362(H) ×55.5(D) mm |
| Treatment | Antiglare, Hard coating (2H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing angle | 88/88/88/88 (Typ.)(CR≥10) |
| Response | 6/6 (Typ.)(Tr/Td) |
| View Direction | Symmetry |
| Work Mode | UA-SFT, Normally Black, Transmissive |
| Color Depth | 1.07B 77% NTSC |
| Backlight | 12 pcs CCFL , 50K hours , Without Driver |
| Mass | 3.30/3.50Kgs (Typ./Max.) |
| Used for | - |
| Refresh Rate | 120Hz |
| Touchscreen | - |
| Signal Type | LVDS (4 ch, 10-bit) , 104 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 |
| 104 pins Connector NL192120BC25-03 TFT LCD display panel | |
NL192120BC25-03 LCD Screen Features:
Premium Quality Replacement:
Experience the pinnacle of touch LCD screen replacement parts with our NL192120BC25-03 series. Crafted to the highest standards, these components ensure optimal performance and reliability.
Competitive Pricing:
We understand the importance of affordability without compromising on quality. Our products boast reasonable and competitive prices, making them accessible to a wide range of consumers.
Versatile Repair Solution:
Address a myriad of screen-related issues effortlessly with our LCD screens. Whether you're dealing with touch screen malfunctions, dead pixels, cracked screens, or other display anomalies, our NL192120BC25-03 series offers a comprehensive solution.
Rigorous Testing and Quality Assurance:
Prioritizing your satisfaction and peace of mind, each assembly undergoes rigorous testing before shipping. Rest assured that every unit is 100% operational upon delivery. Our stringent quality control measures ensure the absence of dark spots, color inconsistencies, and dead pixels, guaranteeing a flawless visual experience.
NL192120BC25-03 LCD Panel Shipping and Package :
Shipping Information for NL192120BC25-03LCD Screen:
When placing an order for the NL192120BC25-03 LCD screen, please ensure that the recipient's details include the full name or company name. We utilize reputable shipping carriers such as ALI standard transport, EMS, DHL, FedEx, among others. You have the flexibility to select your preferred shipping method for your next order. For expedited delivery, we recommend opting for DHL or EMS.
Please note that for DHL shipments, certain remote addresses may require additional service fees, which are the responsibility of the buyer. Additionally, any customs clearance fees incurred during the shipping process will be borne by the buyer.
Upon successful payment completion, your order will be dispatched within 1-3 working days. However, please be aware that certain products may require additional processing time based on inventory availability. Rest assured, we strive to expedite the shipping process to ensure prompt delivery of your order.
NL192120BC25-03 LCD Screen Goods Inspection Protocol:
Upon receiving your delivery from the shipping company, we kindly request that you thoroughly inspect the parcel in the presence of the delivery personnel. It is imperative to check for any signs of damage to the packaging or the product itself. In the event that you notice any such damage, we advise you to refuse the delivery and request photographic evidence to substantiate the claim.
The photographic evidence should be provided in two parts:
Customer's Evidence:
Take clear and detailed photos of the damaged packaging or product as evidence.
These photos serve as proof from your perspective as the customer.
Courier Company's Evidence:
Request the courier company to take photos of the damaged parcel or product.
These photos serve as third-party evidence from the courier company's perspective.
Once both sets of photos are obtained, please forward them to us for review. We will meticulously assess the extent of the damage and ascertain responsibility accordingly. It is essential to note that without third-party evidence from the courier company, we cannot proceed with compensation for any damages incurred.
By adhering to this protocol, we aim to ensure a transparent and fair resolution process in the unfortunate event of damaged goods during transit.
NL192120BC25-03 LCD Panel FAQ :
Q: If I place order now,when will you ship the goods of NL192120BC25-03?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of NL192120BC25-03 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of NL192120BC25-03?
A: Of course!If you make a large order, we will give you a discount.
Q: How long is the warranty ?
A: We offer 90days warranty .
